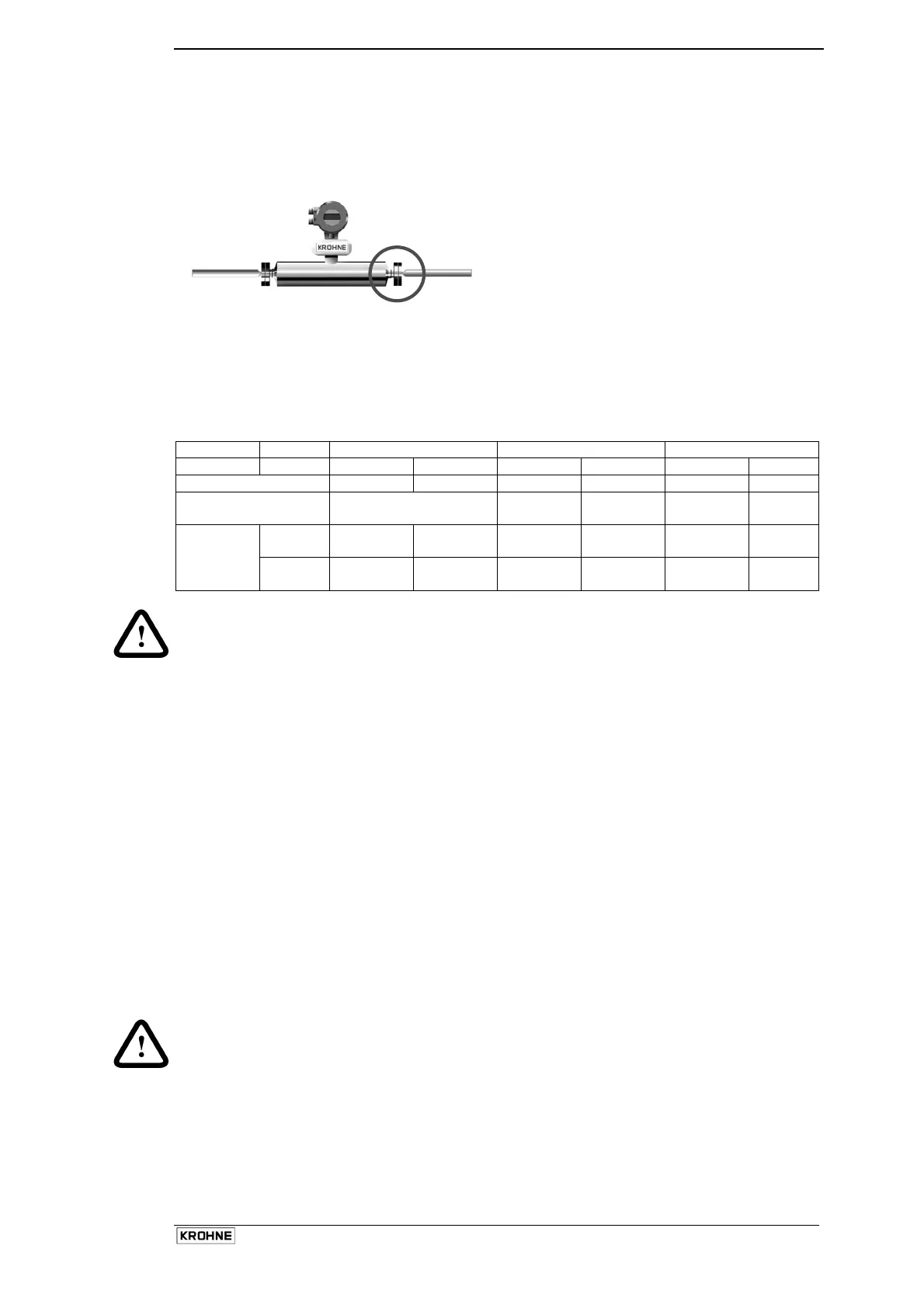

1.2 OPTIMASS 7000 Single Straight Tube Meter
1.2.1 Specific Installation Guidelines
• Tighten flange bolts evenly.
• Observe min and max pipe end loads at end of this section.
The use of reducers at the flanges is
allowed. Extreme pipe size reductions
should be avoided due to possibility of
cavitation and degassing.
There are no additional installation requirements for the OPTIMASS 7000 sensors. Fixing of flexible
hoses directly on the meter is allowed.
1.2.2 Ambient / Process temperatures
The specified and approved ambient and process temperatures must be observed.
Titanium HC22 SS318L
°C °F °C °F °C °F
Process -40 .. +150 -40 .. +300 0 .. +100 0 .. 212 0 .. +100 0 .. 212
-20°C or 4°F for hygienic
or aseptic connections
Compact
-40 .. +55 -40 .. +130 -40 .. +55 -40 .. +130 -40 .. +55
-40 ..
+130
Ambient
Remote
-40 .. +60 -40 .. +140 -40 .. +60 -40 .. +140 -40 .. +60
-40 ..
+140
Note:
Where meters are mounted in direct sunlight, it is recommended to install a sunshade. This is
particularly important in countries with high ambient temperatures.
The maximum differential temperature between the process and ambient temperature without
insulation is 130°C or 265°F for Titanium and 80°C or 115°F for Hastelloy and Stainless Steel meters.
1.2.3 Pressure Equipment Directive (PED) requirements.
To comply with the requirements of the PED in Europe, the following information is provided to assist
the plant engineer in installing the meter.
Measuring tube: Titanium Grade 9 Sealing Faces: Titanium Grade 2
Hastelloy C22 Hastelloy C22
Stainless SS 318 Stainless SS 318
The outer cylinder (Secondary Pressure containment) 304 / 304L is dual certified and with “0” rings in
pairs of Viton and hydrogenated nitrile. (Optional outer cylinder of 316/316L).
Wiring feedthrough is made of Epoxy.
Flanges all 316 / 316 L dual certified.
Optional heating jacket 316 / 316L.
Note :
Outer cylinder is in contact with heating medium.
