Installation and Operating Instructions OPTIMASS
14

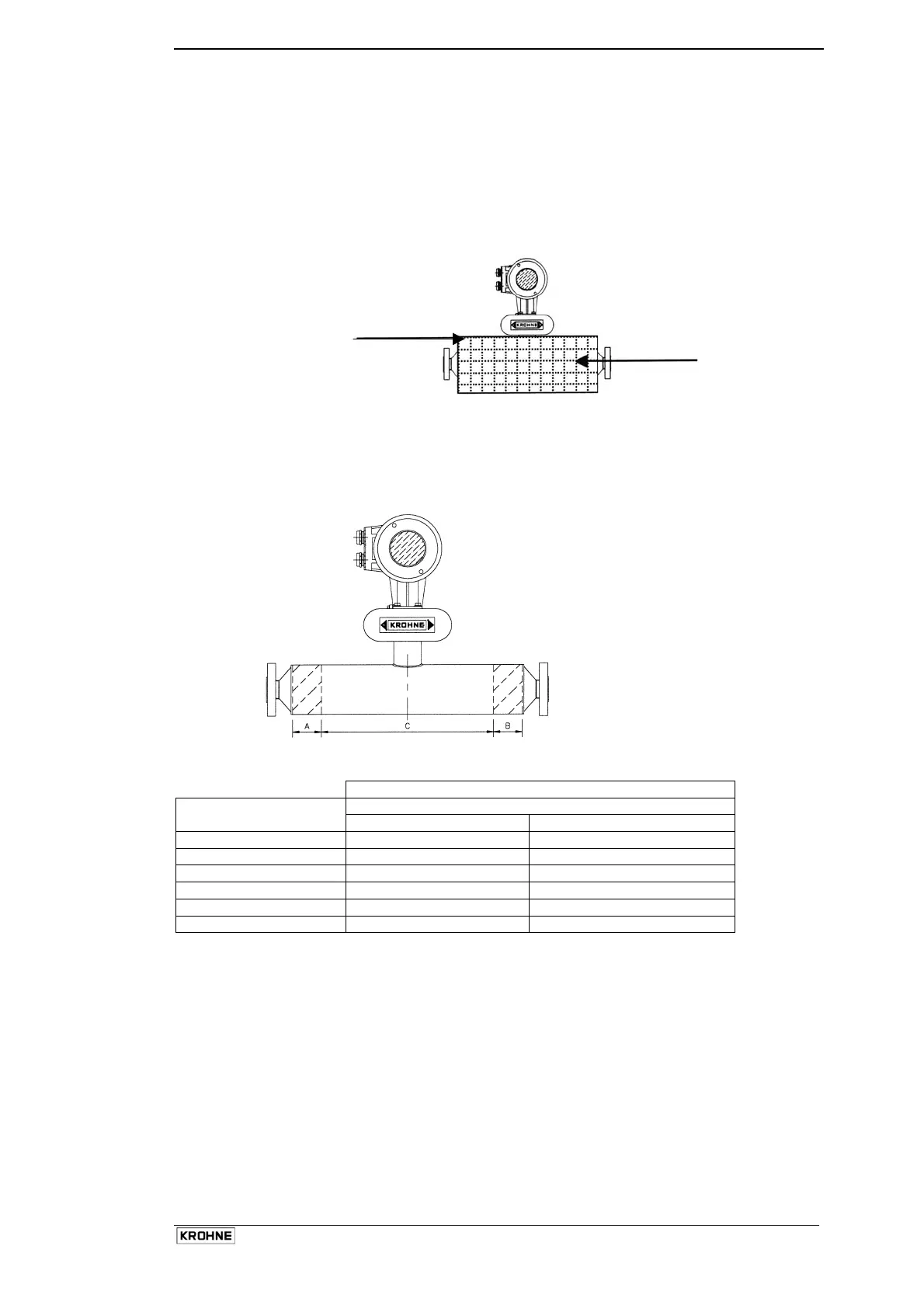

1.2.7 Heating and insulation
There are several methods to heat the meter. In most cases heating is unnecessary as the meter is
designed as such that very little heat is lost or gained through the outer cylinder.
Insulation
Where insulation is required a variety of materials may be used to insulate the meter. Care must be
taken not to insulate the meter above the halfway mark of the electronics support post as shown in the
sketch.
Do not insulate above
this line.
Insulation
Electrical Heating
Electrical tape heating may be used. Care should be taken to only heat the sections where the best
effect will be achieved. Do not heat above the converter mount centre line as shown above.
The following guidelines must be observed.
Areas A and B may be
heated. Area C must not be
heated.
When insulating please observe guidelines as per insulation section.
DIM A and B Size
Titanium Hastelloy + SS 318
10 50 -
15 65 65
25 120 75
40 150 150
50 200 125
80 410 225

KROHNE OPTIMASS Series Specifications

General

Housing Material	Aluminum, stainless steel
Measurement Principle	Coriolis
Flow Measurement	Mass flow, density, temperature
Accuracy	±0.1% of rate
Repeatability	±0.05% of rate
Pressure Range	Up to 400 bar
Communication Protocols	HART, PROFIBUS DP/PA, Modbus, Foundation Fieldbus
Materials	Stainless steel, Hastelloy
Approvals	ATEX, IECEx
Output Signals	4-20 mA, pulse, frequency
Protection Class	IP67
Process Connection	Flanged, threaded, sanitary
Power Supply	24 V DC, 100-240 V AC
