Krom Schroder VAS Series User Manual

GB-7
D
GB
F
NL
I
E

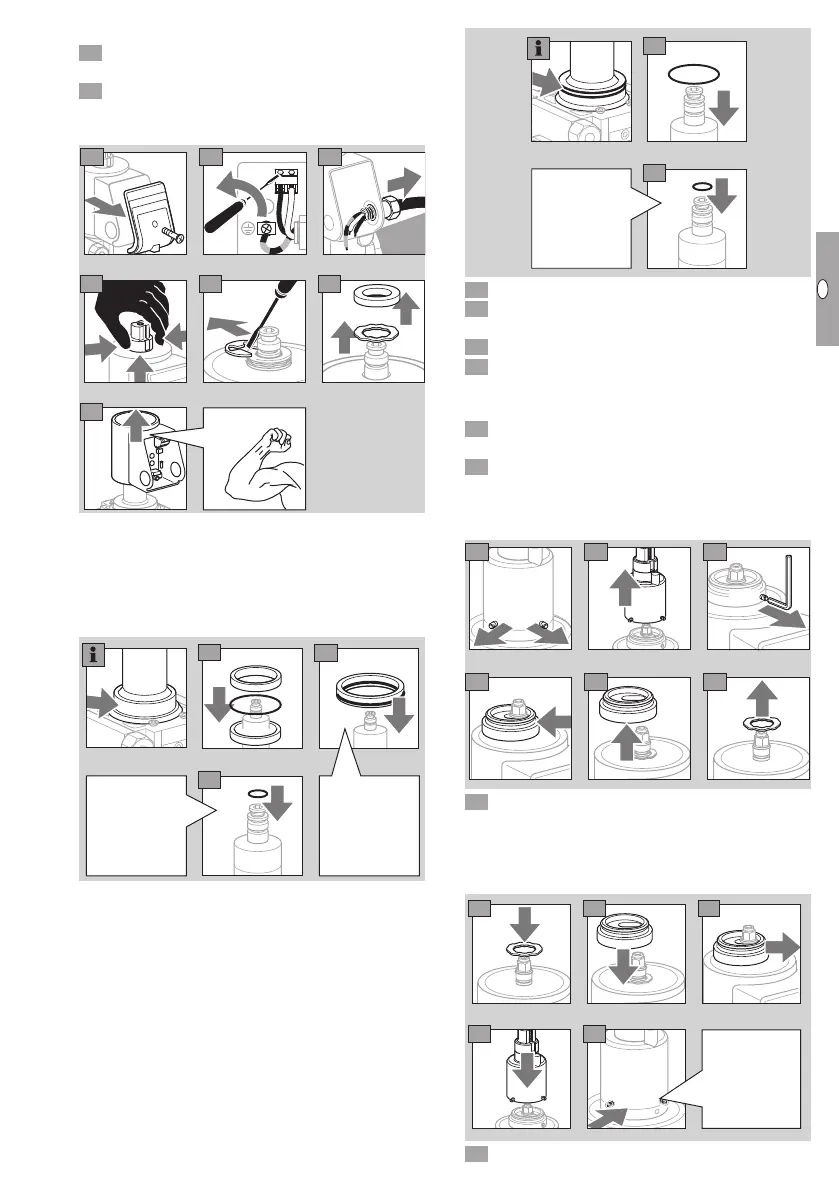

VAS without damping
1 Disconnect the system from the electrical power
supply.
 Shut off the gas supply.
▷ Remove the M20 cable gland or other type of
connection.
43 5
9
7 86
▷ Depending on the construction stage of the unit,
there are two different methods for replacing
the actuator:
If the unit concerned has no O-ring in this place
(arrow), replace the actuator as described here.
Otherwise, go to the next note.
VAS 2–3
VAS 1
10
10
11
Slide seal
under the
second
groove.
Insert seals.
Position of the
metal ring can
be selected.
▷ If the unit concerned has an O-ring in this place
(arrow), replace the actuator as described here:
▷
VAS 1: use all seals from the actuator adapter set.
VAS 2/3: use the small seal from the actuator
adapter set and only one of the large seals.
VAS 1–3
10
11
Slide seal
under the
second
groove.
1 Position new actuator.
1 Follow the reverse procedure when reassem-
bling.
14 Fit the M20 cable gland or plug and socket.
15 Connect the VAS to the electrical power supply,
see page4 (Wiring).
VAS../L with damping unit
1 Disconnect the system from the electrical power
supply.
 Shut off the gas supply.
▷ Loosen the setscrews, but do not unscrew com-
pletely (M3 = 1.5 mm hexagon socket, M5 =
2.5mm hexagon socket).
M3
M5
4 53
7 86
9 For further disassembly and replacing the actua-
tor, see section on replacing the actuator.
▷ Once the new actuator has been wired, the
damping unit can be fitted as described below
and set to the desired start gas rate.
N
2
<
–
1,5 x p
u max
M3
11 1210
1413
18
17
Screw in
the M3
setscrews.
15 Open the gas solenoid valve and the gas supply.
