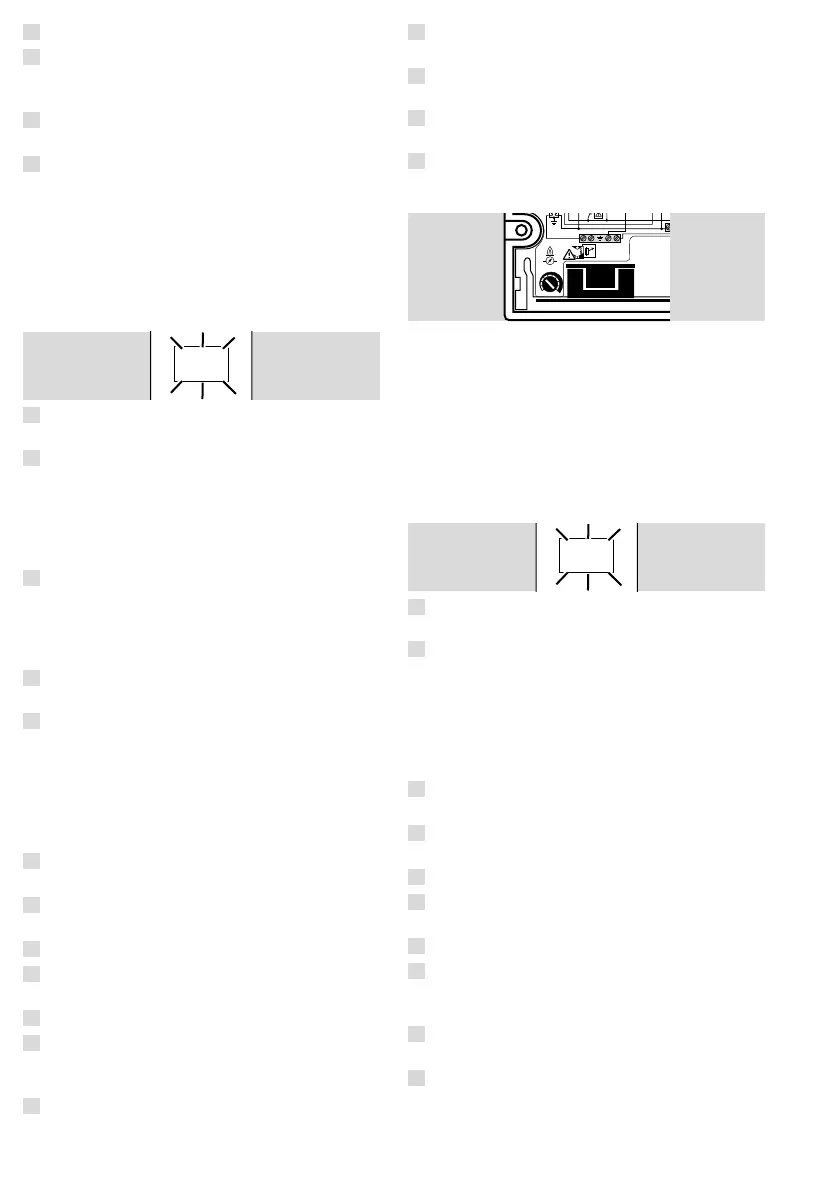

IFD244, IFD258 · Edition 06.23
EN-8
?
The display blinks and indicates 01?
!
The IFD has detected an incorrect flame signal
without the burner having been ignited (extrane-
ous signal)–
!
Flame signal through ceramic insulation–
IFD258:
!
The UV tube in the UV sensor UVS is defective
(service life ended) and permanently indicates an
extraneous signal.
Exchange UV tube, Order No.: 04065304 –
note the Operating instructions for UV sensor
UVS.
Increase value of parameter 04 in order to
adapt the switch-off threshold of the flame
amplifier.
0 2
?
Start-up – no gas supply – the display blinks
and indicates 02?
!
The gas valve does not open –
Check voltage supply to the gas valve.
After a short-circuit on the valve output, the
internal fuse in the unit tripped. The fuse cannot
be replaced. Return the unit to the manufacturer
for inspection.
!
There is still air in the pipeline, for example after
installation work or if the system has not been
used for a long period–
“Purge” the pipeline and reset the system
several times.
?
Start-up – flame burning – nevertheless, the
display blinks and indicates 02?
!
Flame failure on start-up.
Read off the flame signal (parameter 01) – see
page 10 (12 Reading off the flame signal
and the parameters).
If the flame signal is lower than the switch-off
threshold (parameter 04), this may be attribut-
able to the following causes:
!
Short-circuit on the flame rod as the result of
soot, dirt or moisture on the insulator–
!
Flame rod not correctly positioned at the flame
edge–
!
Gas/air ratio incorrect –
!
Flame not contacting burner ground as the result
of excessively high gas or air pressure–
!
Burner or IFD not (adequately) grounded –
!
Short-circuit or discontinuity on the flame signal
cable–
IFD244:
!
Phase (L1) and neutral conductor (N) reversed –
Connect L1 to terminal 1 and N to terminal 2.
IFD258:
!
The set value for the cut-off sensitivity is too
high–
!
Soiled UV sensor –
Remedy fault.
?
Start-up – no ignition spark and no gas
supply – the display blinks and indicates 02?
!
Short-circuit on the ignition or valve output –
Check the wiring.
Replace fine-wire fuse: 3.15A, slow-acting, H.
2 20
µA (DC)
T3,15A H
The fuse only protects the ignition output! After a
short-circuit on the valve output, an internal fuse
in the unit trips, which cannot be changed. Re-
turn the unit to the manufacturer for inspection.
Checking the safety function
Close the manual valve.
Start the automatic burner control unit several
times and check that it operates safely.
If it does not operate correctly, return the auto-
matic burner control unit to the manufacturer.
0 4
?
Operation – flame burning – burner inter-
rupted– the display blinks and indicates 04?
!
Flame failure during operation.
Read off the flame signal (parameter 01 ) – see
page 10 (12 Reading off the flame signal
and the parameters).
If the flame signal is lower than the switch-off
threshold (parameter 04), this may be attribut-
able to the following causes:
!
Short-circuit on the flame rod as the result of
soot, dirt or moisture on the insulator–
!
Flame rod not correctly positioned at the flame
edge–
!
Gas/air ratio incorrect –
!
Flame not contacting burner ground as the result
of excessively high gas or air pressure–
!
Burner or IFD not (adequately) grounded –
!
Short-circuit or discontinuity on the flame signal
cable–
IFD258:
!
The set value for the cut-off sensitivity is too
high–
!
Soiled UV sensor –
Remedy fault.
