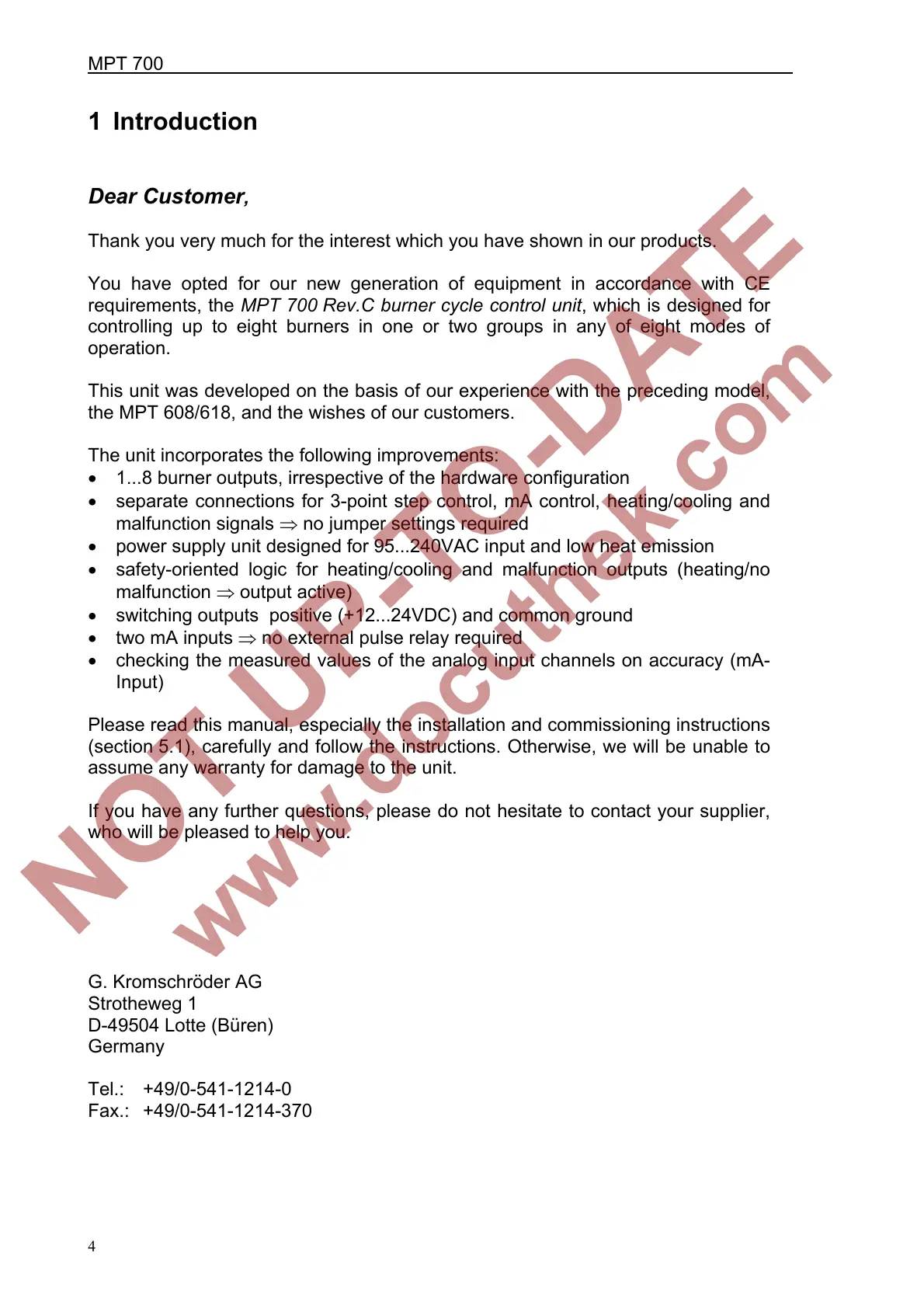

1 Introduction
Dear Customer,
Thank you very much for the interest which you have shown in our products.
You have opted for our new generation of equipment in accordance with CE
requirements, the MPT 700 Rev.C burner cycle control unit, which is designed for
controlling up to eight burners in one or two groups in any of eight modes of
operation.
This unit was developed on the basis of our experience with the preceding model,
the MPT 608/618, and the wishes of our customers.
The unit incorporates the following improvements:
• 1...8 burner outputs, irrespective of the hardware configuration
• separate connections for 3-point step control, mA control, heating/cooling and
malfunction signals ⇒ no jumper settings required
• power supply unit designed for 95...240VAC input and low heat emission
• safety-oriented logic for heating/cooling and malfunction outputs (heating/no
malfunction ⇒ output active)
• switching outputs positive (+12...24VDC) and common ground
• two mA inputs ⇒ no external pulse relay required
• checking the measured values of the analog input channels on accuracy (mA-
Input)
Please read this manual, especially the installation and commissioning instructions
(section 5.1), carefully and follow the instructions. Otherwise, we will be unable to
assume any warranty for damage to the unit.
If you have any further questions, please do not hesitate to contact your supplier,
who will be pleased to help you.
G. Kromschröder AG
Strotheweg 1
D-49504 Lotte (Büren)
Germany
Tel.: +49/0-541-1214-0
Fax.: +49/0-541-1214-370
