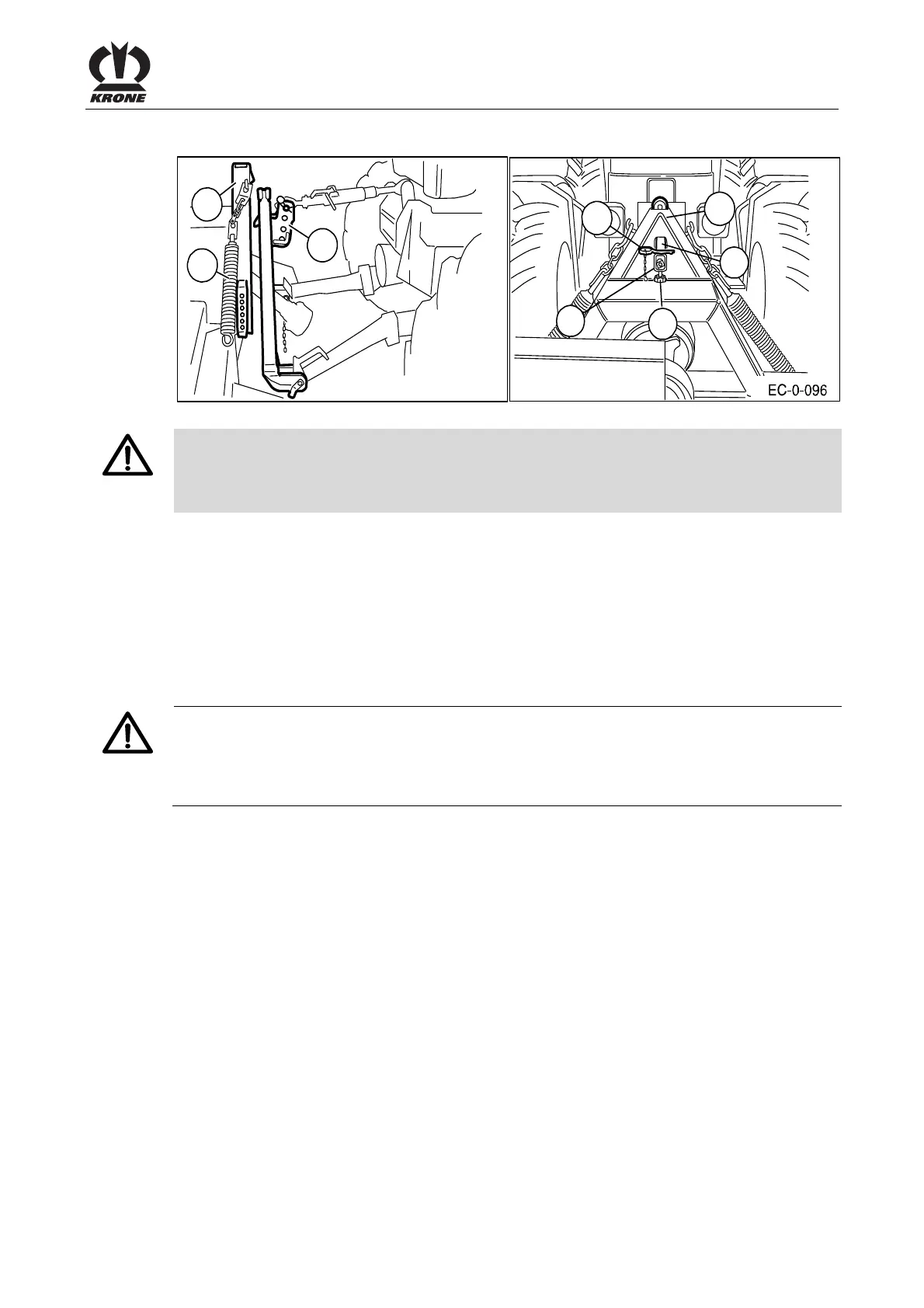

5.2 Mounting onto the Tractor
Pos: 12.7 /BA/Inbetr iebnahme/EasyCut/Vor bereitung am Traktor Bild EC 28/32 @ 10\mod_122173 1786130_78.docx @ 13657 0 @ @ 1
AFA-0-003
1
3
2
6
1
5
7
4
Fig. 8
Pos: 12.8 /BA/Inbetr iebnahme/EasyCut/W ARNUNG - ungeeigneten Feders tecker für das Kuppeldrei eck (Weiste-Drei eck)verwendet @ 136\mod_135 2385119522_78.doc x @ 1208527 @ @ 1
WARNING!
When using a spring clip which is not suitable, the triangle linkage (Weiste triangle) can
uncouple unintentionally. This can cause serious accidents.
Only use suitable spring clips for securing the triangle linkage.
Pos: 12.9 /BA/Inbetr iebnahme/EasyCut/Vor bereitung am Traktor EC 28/32CV 28/32 @ 10\mod_122172 8655208_78.doc x @ 136257 @ @ 1
• Carefully position the tractor with Weiste triangle (2) in front of the holder (1) of the front-
mounted disc mower.
• The tension spring (3) must not be inside the holder
• Connect the Weiste triangle (2) to the holder (1)
• Set the distance between the ratchet mechanism (4) and latch (5) by adjusting the ratchet
mechanism (4) to 1 mm (using the adjusting screw (7))
• Secure Weiste triangle (2) with spring cotter pin (6).
Pos: 12.10 /BA/Inbetr iebnahme/EasyCut/Ac htung Abstand der Masc hine zum Traktor zu gering @ 89\ mod_1321957875595_7 8.docx @ 756771 @ @ 1
Caution! - The distance between the machine and the tractor is too small
Effect: damage to the tractor or the machine
Check free space for the front wheels at all steering angles. If the guards or swath flaps come
into contact with the front wheels of the tractor, lower suspension arm adapters must be
installed between the lower suspension arm and the Weiste triangle.
