A 3,5 m
EC-224-0

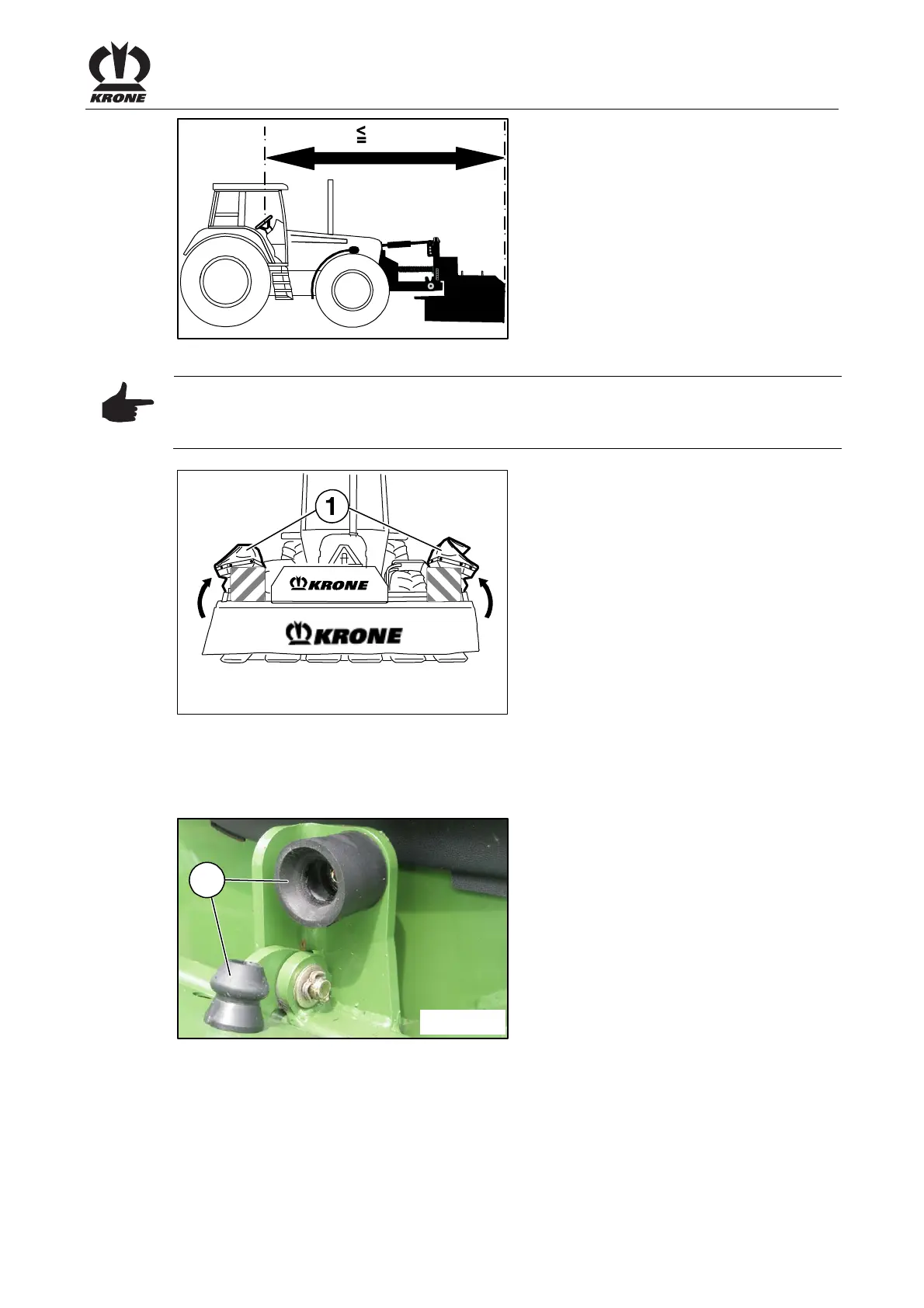

Fig. 16
Note - Depending on the country
If the front end dimension "A" exceeds 3.5 m, provide suitable means (e.g. assistant giving
instructions or mirror at road junctions) to ensure road safety (data sheet for attached
implements supplied by the Federal Minister for Transport).
Pos: 14.8 /BA/Fahren und Transport/EasyCut/Sc hutze in Transports tellung bringen EC28/ 32 @ 10\mod_1221735727426 _78.docx @ 136637 @ @ 1
EC-0-014
Fig. 17
Always move the guard (1) from the right and left-hand sides to the transport position before
road travel.
Pos: 14.9 /BA/Fahren und Transport/EasyCut/Fe ststeller und Schnäp per @ 78\mod_1314002912 379_78.docx @ 694482 @ 2 @ 1
6.2 Clamp and Buffer
EC-385-0
1
Fig. 18
Check the clamp and buffer (1) for tight fit every time before transport or road travel.
If the clamp and buffer show signs of damage or wear, replace them.
Item No.: 00 250 831 1
