Start-up
25
Pos: 12.14 /Übersc hriften/Überschri ften 2/U-Z/UÜberprüfung d es Erstanbaues @ 35\mod_1 257843599703_78.d ocx @ 330187 @ 2 @ 1
5.3 Checking the First fitting
Pos: 12.15 /BA/Inbetr iebnahme/EasyCut/ Überprüfung des Erstanba ues Achtung EC F 280(M) / F 320( M) / F 360(M) @ 204\mod_1386142 598536_78.docx @ 1701547 @ @ 1
CAUTION!
Machine or tractor may be damaged if the machine is connected incorrectly.
If the universal shaft is bent unfavourably, the machine runs irregularly and machine or tractor
may be damaged seriously.
• To prevent damages, the machine must be aligned in parallel to the ground in the raised
condition.
Pos: 12.16 /BA/Inbetr iebnahme/EasyCut/ Überprüfung des Erstanba ues Bild EC F 280(M) / F 320(M) / F 360(M) @ 205\mod_1386257293 841_78.docx @ 1707146 @ @ 1

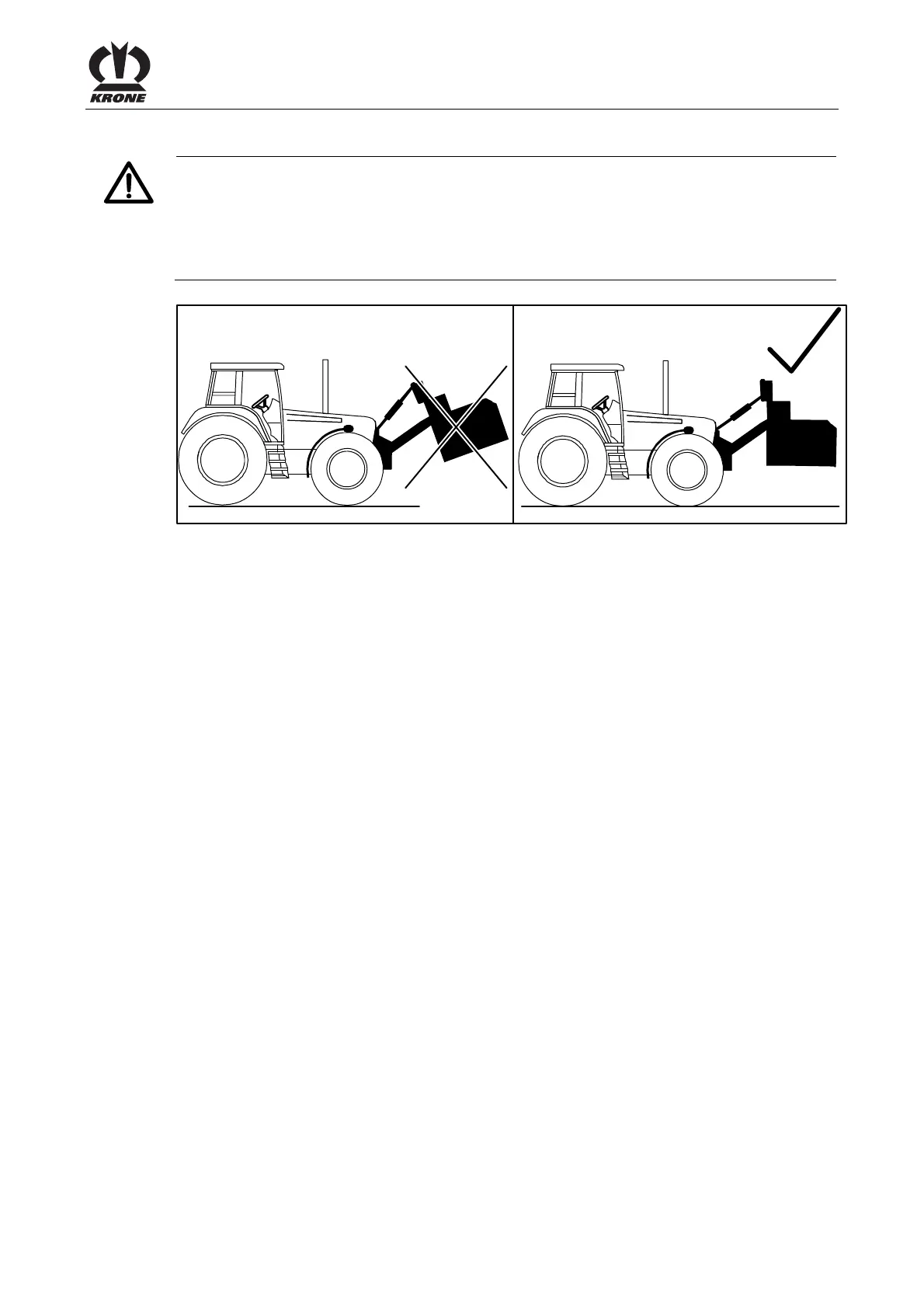

EC-460-0
Fig. 10
Pos: 12.17 /BA/Inbetr iebnahme/EasyCut/ Überprüfung des Erstanba ues Beschreibung EC F 280( M) / F 320(M) / F 360(M) @ 205\mod_1 386319363029_78.doc x @ 1707967 @ @ 1
Mount top link on the A-frame (Weiste triangle) or on the upper coupling point of the machine so
that the machine is aligned as parallel as possible to the ground in the raised condition.
To do this:
• Raise the machine.
• Switch off tractor, secure the tractor from rolling away and remove the ignition key.
• Check the parallelism of the machine to the ground.
If the parallelism is OK, connecting can be continued.
If the parallelism deviates too strong:
• Lower machine to the ground.
• Switch off tractor, secure the tractor from rolling away and remove the ignition key.
• Move top link in the hole pattern on the A-frame (Weiste triangle).
• Raise the machine and check parallelism.
Repeat this process until the machine raises in parallel to the ground.
