Maintenance
44
Pos: 20.8 /Überschri ften/Überschri ften 2/A-E/EErsatztei le @ 0\mod_119678299123 4_78.docx @ 14927 @ 2 @ 1
9.2 Spare Parts
Pos: 20.9 /BA/Sic herheit/7. Gefahrenhin weise alt/MähwerkeW ARNUNG - Verwendung von nicht zugelasse nen Ersatzteilen @ 308\ mod_1417011577394_78. docx @ 2392925 @ @ 1
Warning! - Using non-approved spare parts.
Effect: Danger to life, serious injuries or loss of warranty claims as well as exclusion of liability
• Use only authentic KRONE spare parts and accessories authorised by the manufacturer.
The use of spare parts, accessories or additional equipment not manufactured, tested or
approved by KRONE will exclude any liability for consequential damage.
Pos: 20.10.1 /Überschr iften/Überschr iften 2/A-E/AAnziehdr ehmomente @ 202\mod_13 85711894606_78.doc x @ 1693123 @ 2 @ 1

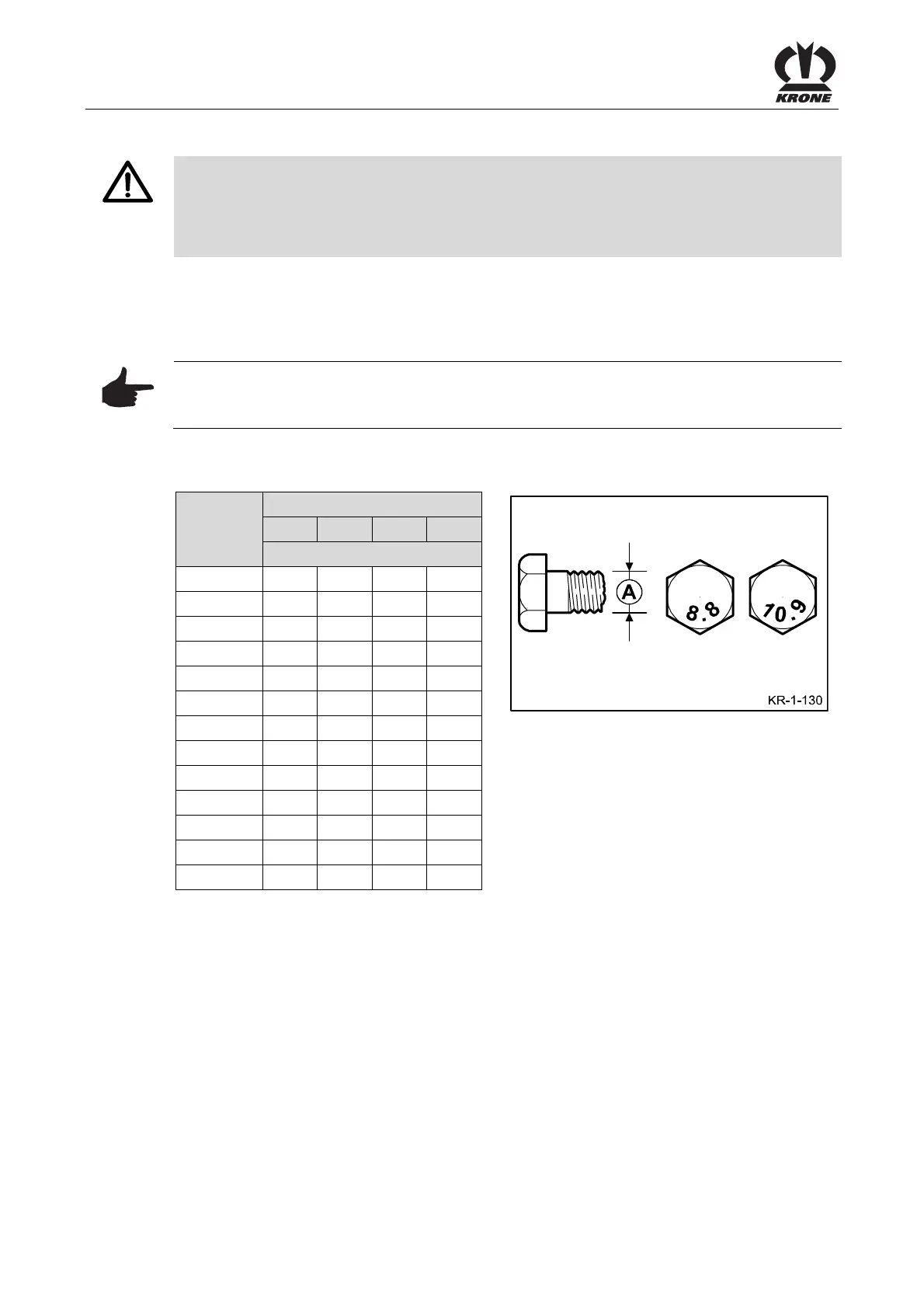

9.3 Tightening torques
Pos: 20.10.2 /Überschr iften/Überschr iften 3/K-O/MMetrisc he Gewindeschrauben mi t Regelgewinde @ 322\mod_ 1424945442462_78.doc x @ 2483466 @ 3 @ 1
9.3.1 Metric Thread Screws with Control Thread
Pos: 20.10.3 /BA/W artung/Drehmomente / Anzi ehdrehmomente/Anzi ehdrehmomente Metrisc he Gewindeschrauben mit Regelgewinde Tabelle @ 321\ mod_1424760222607_ 78.docx @ 2477725 @ @ 1
NOTICE
The table does not apply to countersunk screws with hexagonal socket in case the countersunk
screw is tightened via hexagonal socket.
Tightening torque in Nm (unless
otherwise stated)
A = thread size
(stability class can be seen on screw head)
A
Stability class
5.6 8.8 10.9 12.9
Tightening torque (Nm)
M4 3.0 4.4 5.1
M5 5.9 8.7 10
M6 10 15 18
M8 25 36 43
M10 29 49 72 84
M12 42 85 125 145
M14 135 200 235
M16 210 310 365
M20 425 610 710
M22 571 832 972
M24 730 1050 1220
M27 1100 1550 1800
M30 1450 2100 2450
