5.6 Lighting
Pos: 14.21 /BA/I nbetriebnahme/ Erstinbetriebna hme/EasyCut/A nbau Beleuchtu ngsanlage EC 2 8/32 (P) @ 10\ mod_1221661 519150_78.docx @ 136233 @ @ 1
EC-0-016

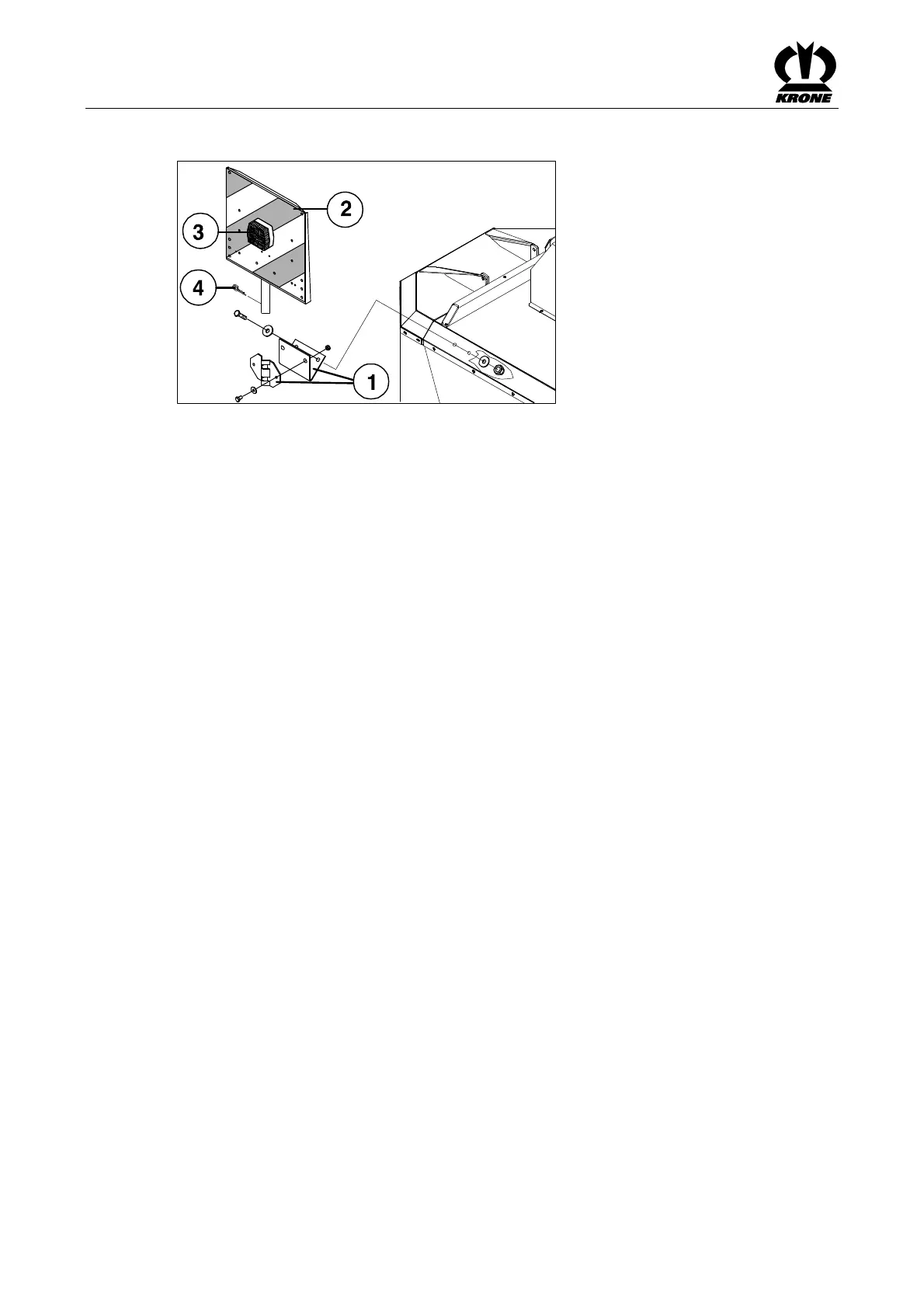

Fig. 8
• Install the light holder (1).
• From above, push warning boards (2) with lighting (3) into the light holder * (1).
• Secure with a spring cotter pin (4).
• Check functionality of the lighting.
* = Standardised section according to Din 11027
