14.2 Conversion to narrower swathing
(EasyCut F 280 M, EasyCut F 320 M, EasyCut 360 M)
EC-281-1
1
2
4
4
3
3
4
4
4
4
5
5
6
6
EasyCut F 280 M
EasyCut F 320 M
EC F 360 M
4 4

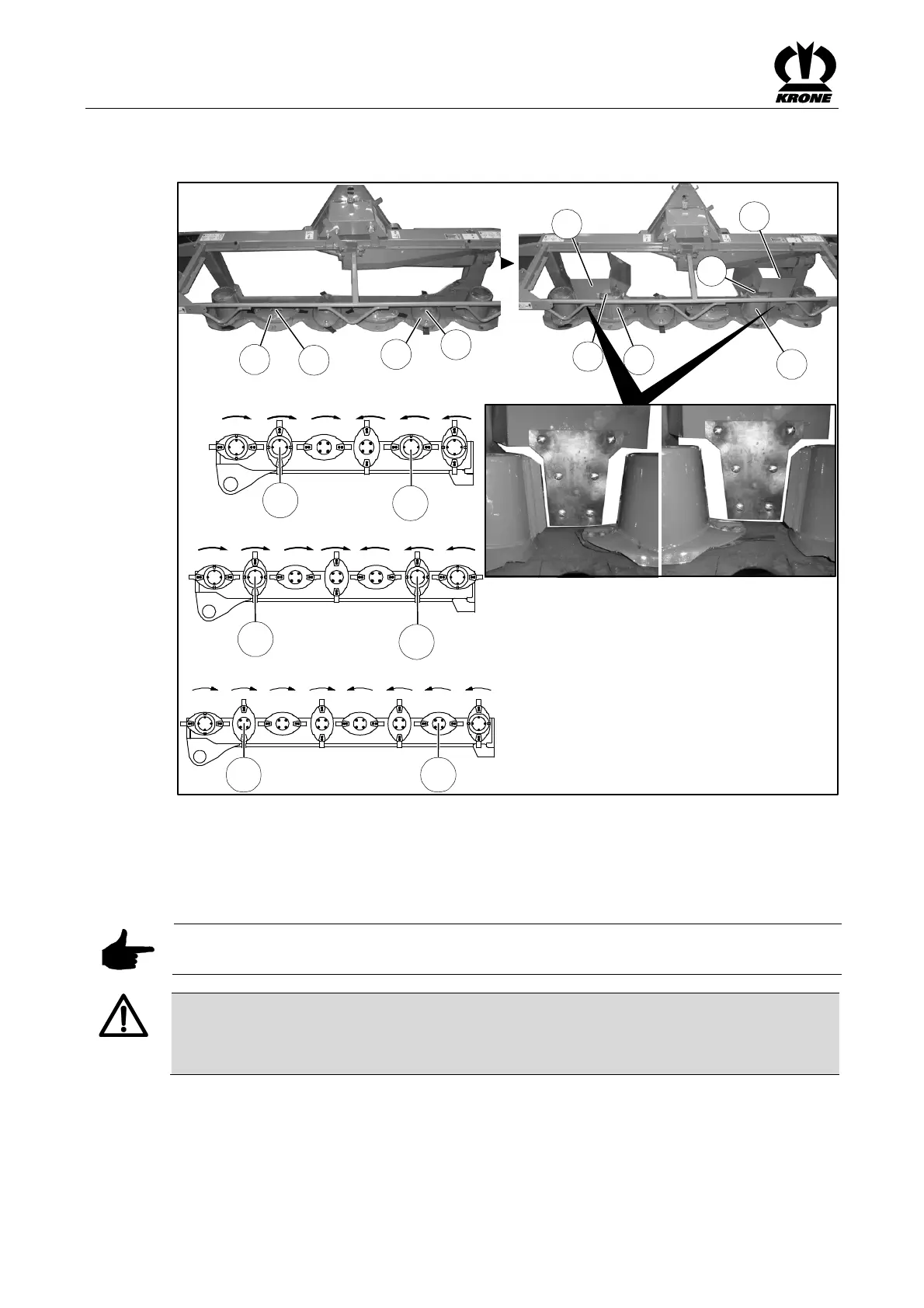

Fig. 43
• Remove the cutting discs (5) and covers (6).
• Remove cover (3) of mower drum (4). Mount the mower drum with fastening bolts and the
detent edged washers of the disassembled cutting discs (6).
• Mount the cover (3) on the mower drum (4).
Note
Keep the cover (5) and cutting disc (6) in a suitable place for later reinstallation.
Warning - Mower drum incorrectly installed
Effect: Damage to the machine
Make certain the mower drums are installed correctly! The installed mower drums (4) must be
installed at a 90-degree offset to the adjacent mower drums / cutting discs.
