11 Maintenance – lubrication chart
Pos: 24.56.2 /Üb erschriften/Üb erschriften 2/P-T/S pezielle Sich erheitshinweis e@ 0\mod_1196 660495760_78. docx@ 9134 @ 1 2@ 1
11.1 Special Safety Instructions
Pos: 24.56.3 /B A/Sicherheit/Gefa hrenhinweise/Mä hwerke/Gef ahr- R eparatur_ Wartung_Reinigu ngs_4 allge mein EasyCut @ 11\mod_1223620 198301_78.doc x@ 148349 @ @ 1
Danger! - When performing repair, maintenance or cleaning work on the machine, or in
the case of technical intervention, drive elements may start moving (caution, the cutting
discs continue to run).
Effect: Danger to life, injuries or damage to the machine.
• Move the machine to the working position and lower it to the ground
• Switch off the tractor engine and remove the ignition key.
• Secure the tractor against accidental start-up and against rolling.
• Switch off the PTO and disengage it.
• After repair, maintenance, cleaning work or technical modifications are complete, mount
all protective coverings and safety devices again properly.
• Avoid skin contact with oils, greases, cleaning agents and solvents.
• In the event of injuries or burns due to oils, cleaning agents or solvents, contact a doctor
immediately.
• All other safety instructions must also be followed to avoid injuries and accidents.
Pos: 24.56.4 /Üb erschriften/Üb erschriften 2/F-J/G elenkwelle @ 0\mod_1199781 879794_78.d ocx @ 34542 @ 2 @ 1
11.2 PTO shaft
Pos: 24.56.5 /B A/Wartung/Gelen kwelle schmiere n/Abschmiere n Gelenkwelle E asyCut 100 h @ 44\mod_127 5544141265_78.d ocx @ 392033 @ 2@ 1

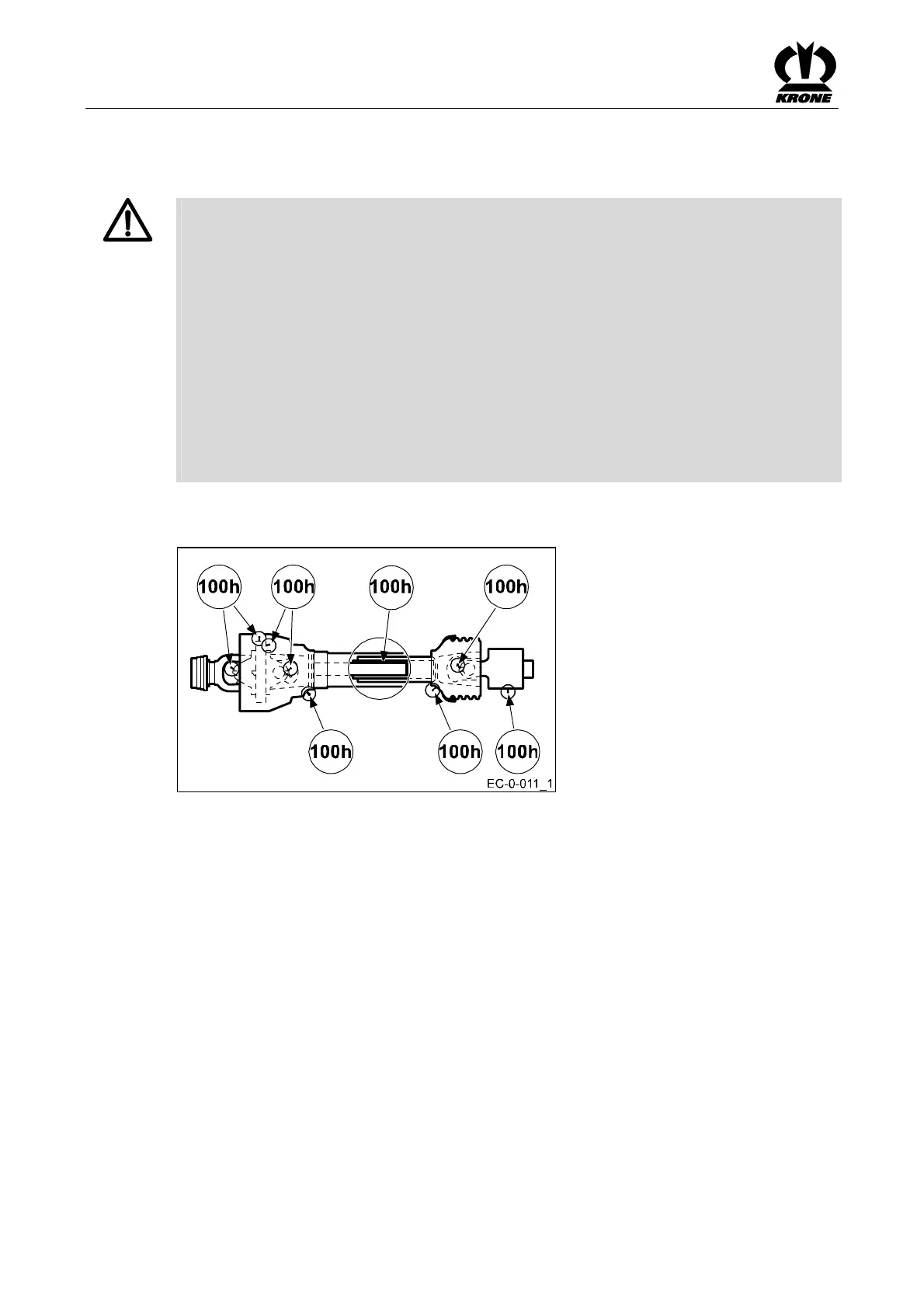

Fig. 41
Lubricate the PTO shafts at the intervals indicated in the drawing with a multi-purpose grease.
Follow the operating instructions of the PTO shaft manufacturer.
