Krone EasyCut F 320 M - Setting of the V-Belt Tension

Settings
43
Pos: 22.20 /BA/Ei nstellungen/M ähwerke/Einstell ung der Keilri emenspannung EC F 280 / F 320 @ 104\mod_1332 324556266_7 8.docx @ 9429 81@ 21 @ 1
9.4 Setting of the V-belt Tension
(except EasyCut F 280 M / EasyCut F 320 M / EasyCut F 360 M)
EC-0-008

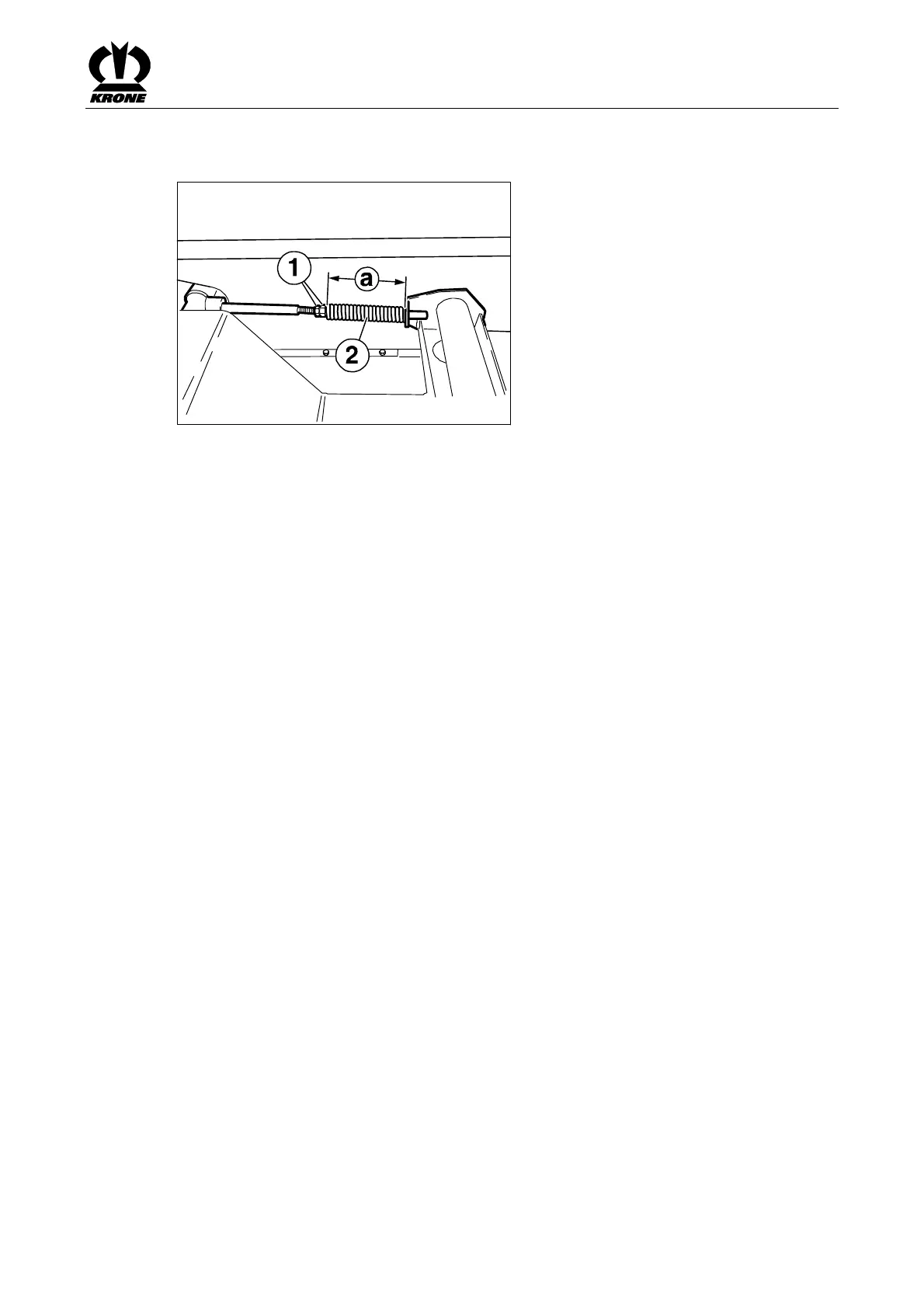

Fig. 22
The drive V-belts maintain their tension by means of a compression spring (2). To adjust
dimension "a", unscrew the nut (1). Turn the nuts until dimension "a" = 205 mm is reached. Lock
nuts again.
