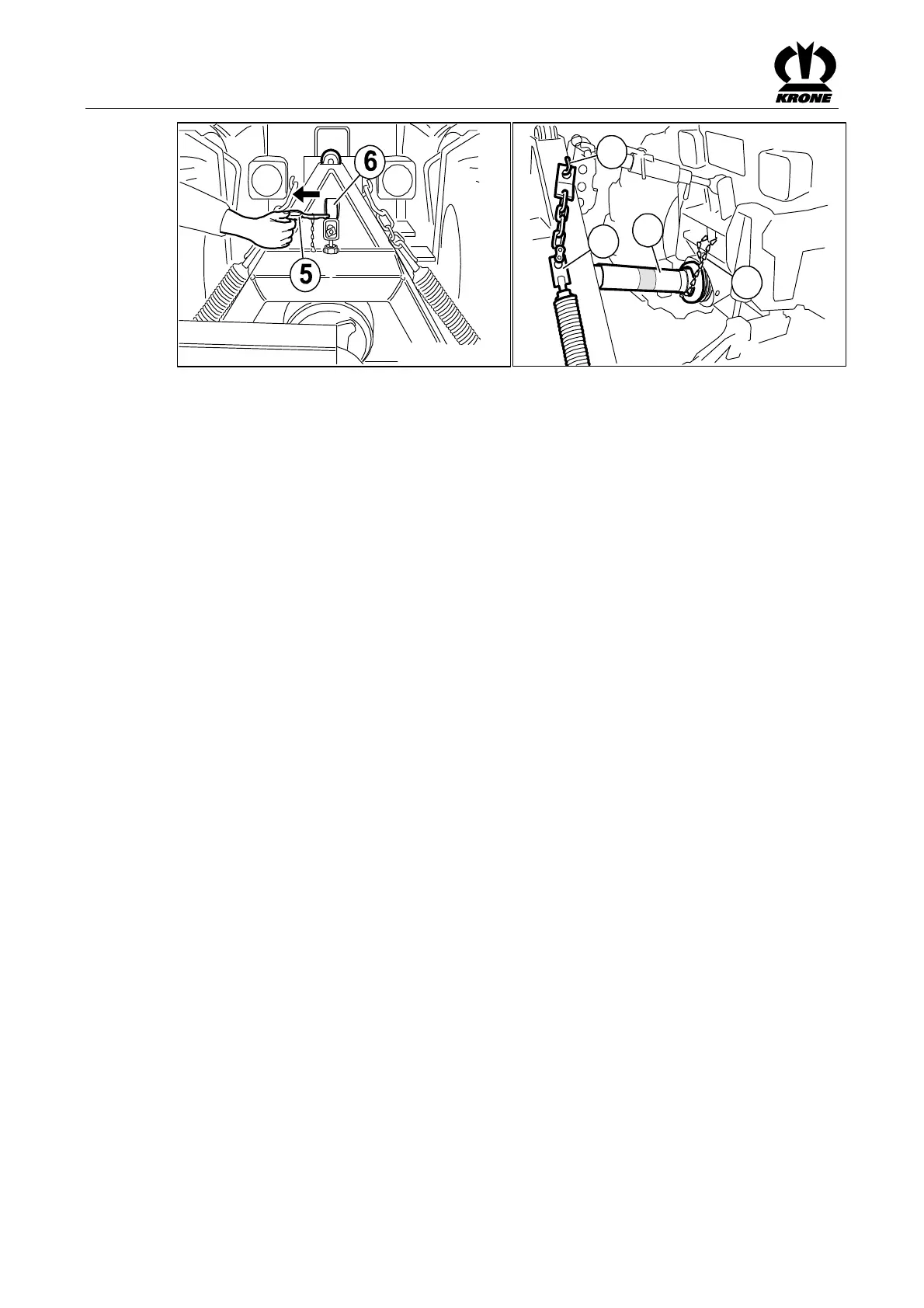

• Bring the front mowing unit into the transport position.
• Remove compensation spring (2) and hang it on hook (1).
• Lower front-mounted disc mower.
• Pull spring cotter pin (5) out of the Weiste triangle.
• Release the interlock of the holding triangle.
• Loosen the guard cloth.
• Remove the retaining chain (4) of the PTO shaft (3).
• Remove the PTO shaft (3) from the tractor side and place on the PTO shaft bracket
• Carefully lower the front hydraulics.
• Drive carefully out of the holder of the front-mounted disc mower.
