SUPERSTRUCTURE OPERATION
Operating instructions • Load Carrier • 505410638-02 • 07/2019
69
curtain from the front. Before opening, the
tension on the side curtain must be re-
leased at the front with the channel rail.
Opening the slide curtain at the front
► If necessary, remove the existing cur-
tain rope.
► Release the curtain buckle (see "6.2.2
Curtain buckle", pg.66).
► Release the curtain using the rear cur-
tain tensioning device (see "6.2.5 Rear
curtain tensioning device", pg.70).
3
4
1
2

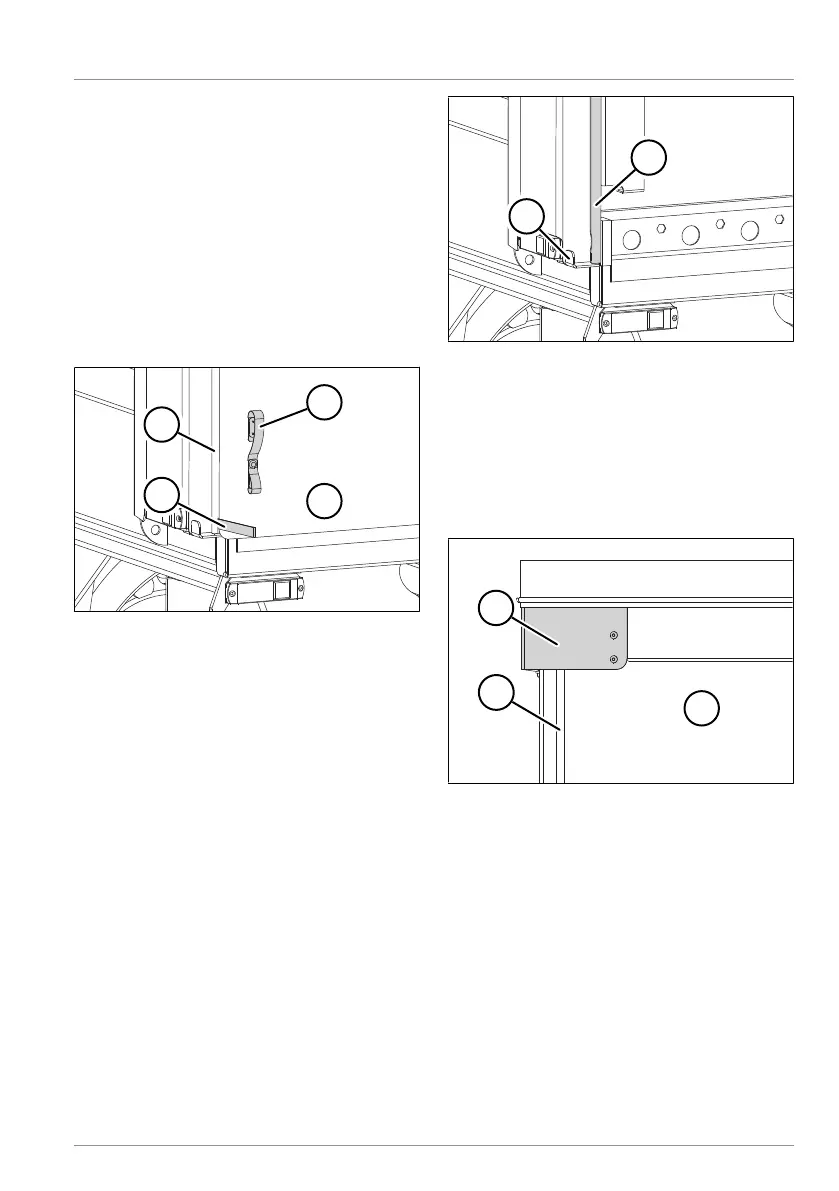

Fig.6-20: Channel rail
1 Curtain loop (option)
2 Outside of the curtain
3 Curtain handle
4 Channel rail
► Lift the channel rail together with the
curtain using the curtain handle in-
stalled on the channel rail.
► Slide the curtain forwards.
ð The channel rail is unhooked.
► Slide the curtain to the rear.
ü The side curtain is opened at the front.
Closing the side curtain at the front
► Slide the curtain forwards.
1
2
Fig.6-21: Tension shaft support
1 Tension shaft support
2 Bracket
► Lift the channel rail together with the
curtain using the curtain handle in-
stalled on the channel rail.
► Slide the curtain forwards.
1
2
3
Fig.6-22: Thread the channel rail
1 Sealing lip
2 Outside of the curtain
3 Channel rail
► Guide the curtain at the front below the
sealing lip using the channel rail.
► Attach the channel rail to the tension
shaft support.
► Lift the channel rail together with the
curtain onto the bracket.
► Tighten the curtain using the rear cur-
tain tensioning device (see "6.2.5 Rear
curtain tensioning device", pg.70).
