SUPERSTRUCTURE OPERATION
68
Operating instructions • Load Carrier • 505410638-02 • 07/2019
6.2.2.4 Direct tensioner
2
3
1
4

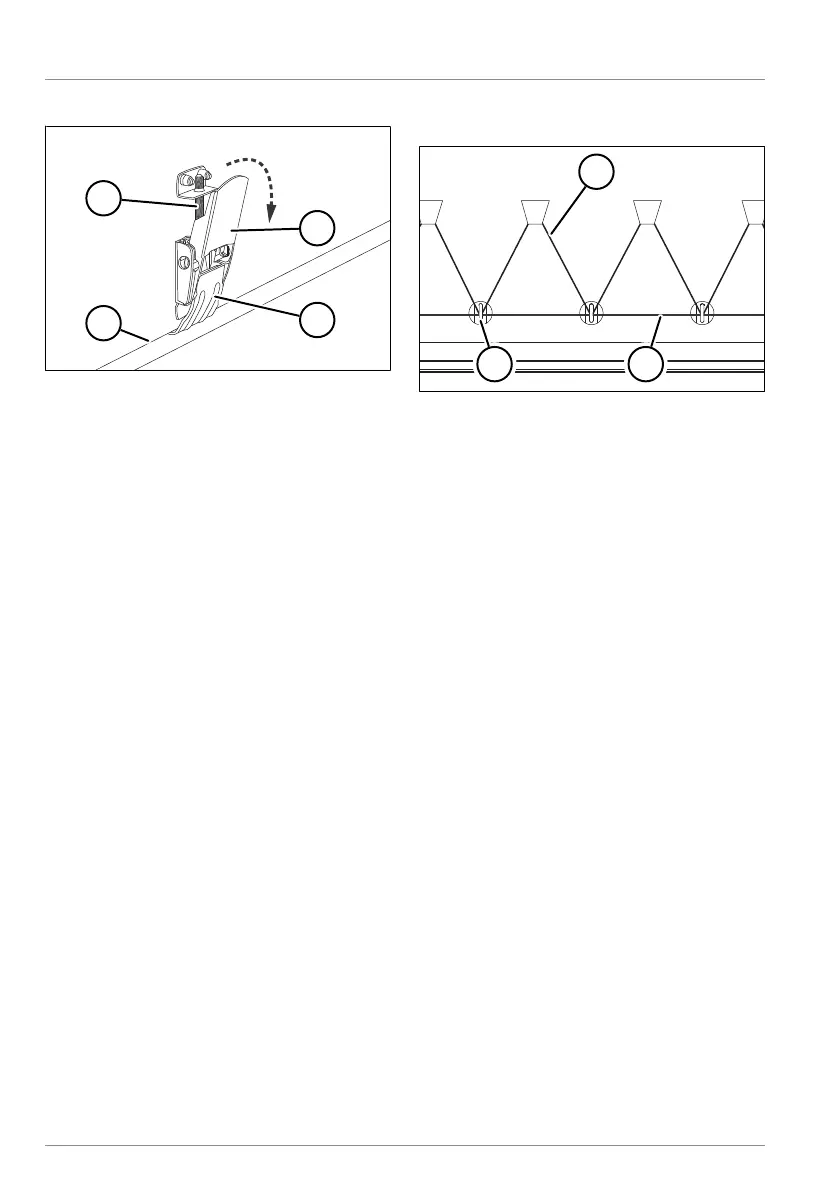

Fig.6-18: Releasing the direct tensioner
1 Threaded rod
2 Lock
3 Hook
4 Curtain hooking profile
Releasing the direct tensioner
► Pull on the lock and fold it down.
ü The direct tensioner is released.
Setting the tension on the threaded rod
► Turn the lock to the left.
ð The curtain tension decreases.
► Turn the lock to the right.
ð The curtain tension increases.
Closing the direct tensioner
► Attach the hook to the curtain hooking
profile.
► Fold up the lock and press until it
snaps into place.
ü The direct tensioner is closed.
6.2.3 Curtain cramps and rubber ex-
panders
1
23
Fig.6-19: Attached rubber expanders
1 Rubber expanders
2 Curtain rope
3 Curtain cramp
Opening the side curtain
► If necessary, remove the curtain rope.
► Unhook the rubber expander's spring
snap.
► Remove the rubber expander from the
curtain cramp.
► Release the side curtain.
► Slide open the side curtain.
ü The side curtain is open.
Closing the side curtain
► Pull the side curtain closed.
► Tension the side curtain.
► Fasten the rubber expander into the
curtain cramps.
► Fasten the rubber expander's spring
snap.
► If necessary, thread the curtain rope
through the cramps and secure it.
ü The side curtain is closed and se-
cured.
6.2.4 Front curtain tensioning device
For quick loading and unloading of partial
loads in the front area of the load compart-
ment, it is also possible to open the side
