Krups KP 5002 - Replacing Cup Lighting

R E P A I R
Replacingcuplighting
1.Removehousingfrontfirst.

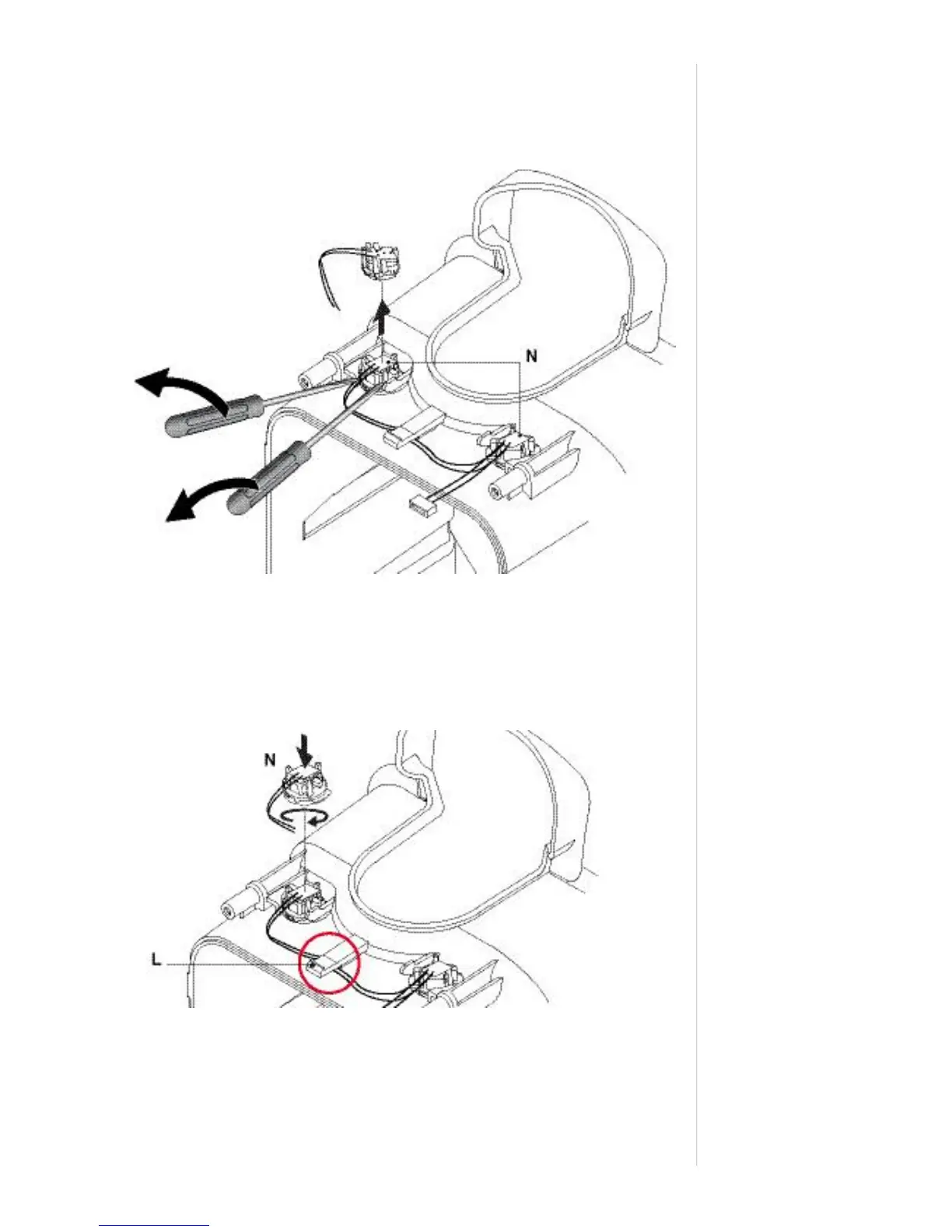

2. Presswithscrewdriveratplasticlensofeachcuplight(N)toremoveitfrom
housingfront.
3. Replacecompletecuplightingassembly.
Assemblyinformation
• Insertplasticlensofcuplighting(N)f romaboveintosupportlikeshown.Thenturn
plasticlensclockwisetillitsnapsinplace.
• Placeconnectionwiresbetweencuplightsunderlatch(L)ofhousingfront.
