Krups KP 5002 - Replacing the Thermoblock

R E P A I R
Replacingthermoblock
1.Removehousingrightwithspacerandhousingleftfirst.


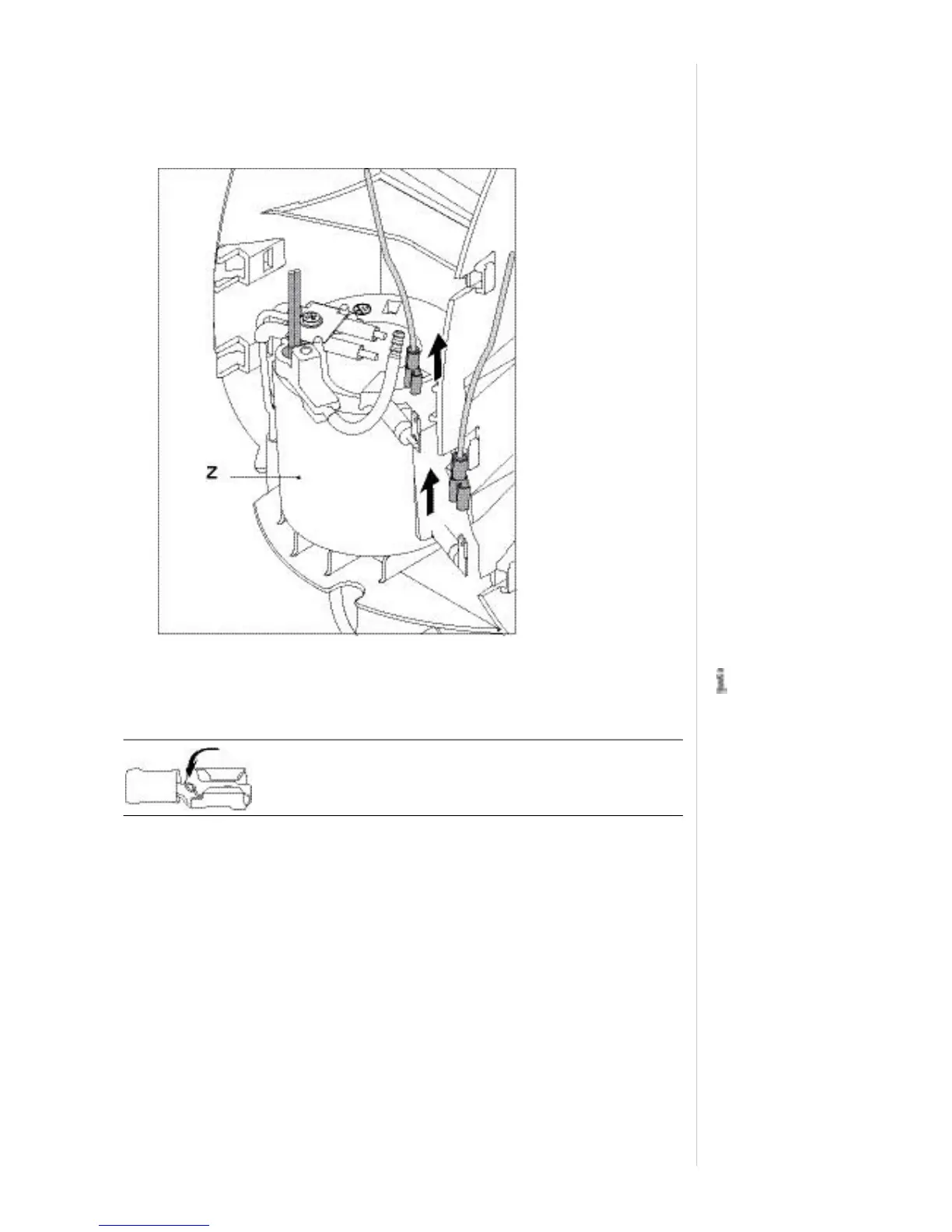

2. Unplugflatrec eptaclesfromthe rmoblock(Z).
3.UnplugNTCconnectorfrommainPCB.
4. RemoveNTCcabl efromcableguidesincenterpart.
Pay attention to
residual water flow-
ing out from the ther-
moblock.
Theflatreceptacleshaveaspecialconnectorlatching.
Pressdownleveratfirst,thenpullreceptacle.
