Krups KP 5002 - Water Circuit Diagram

M A I N  C O M P O N E N T S

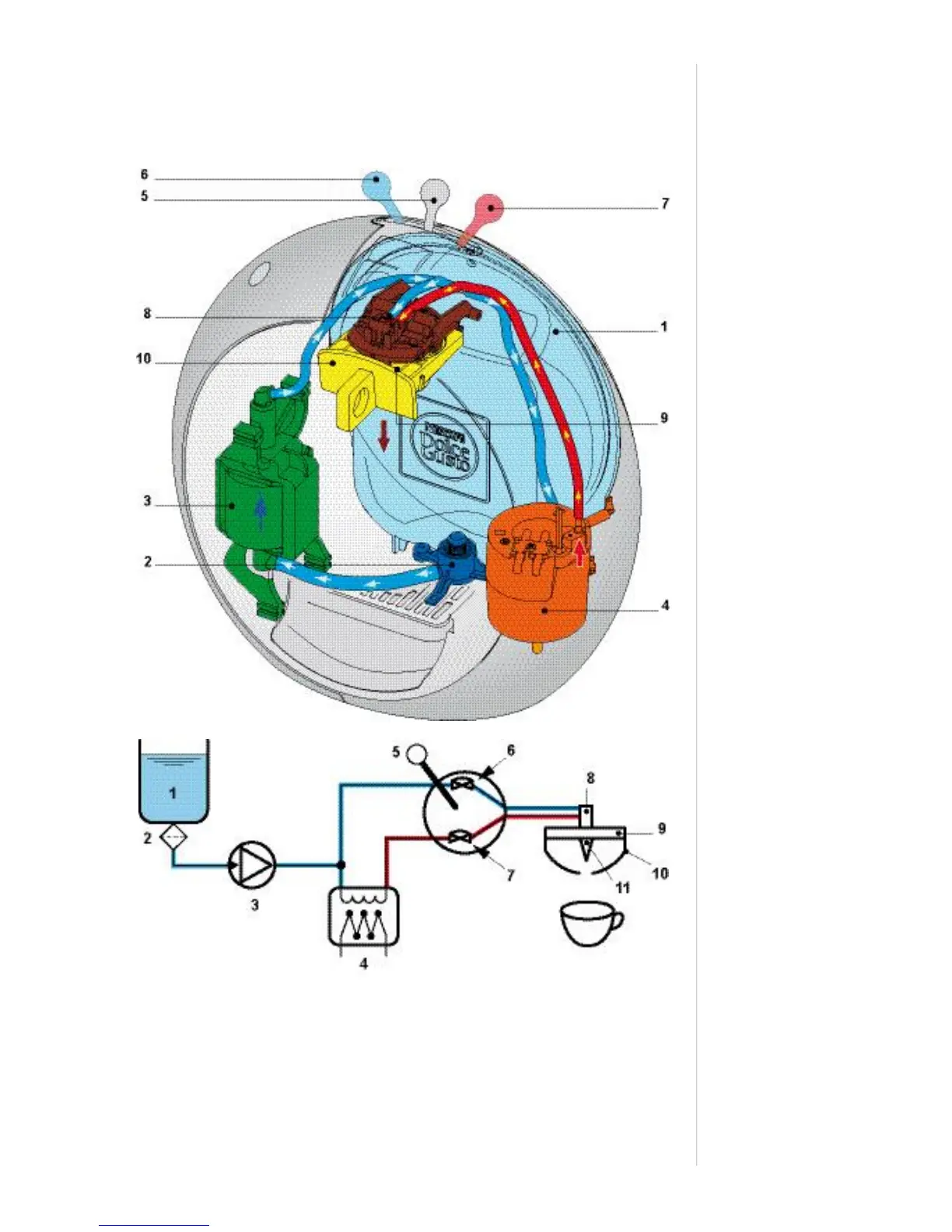

Watercircuit
1. Watertankwithvalve
2. Filterandconnector
3. Pump
4. Thermoblock
5. Selectionlever
6. Positioncold
7. Positionhot
8. Fconnector
9. Injectorplate
10. Capsuleholder
11. Injector
