Krups KP 5002 - Page 41

R E P A I R
Assemblyinformation
• ForhandlingthenewPCBassembly,theservicetechnicianmustbeearthedusing
anearthin gstrap.

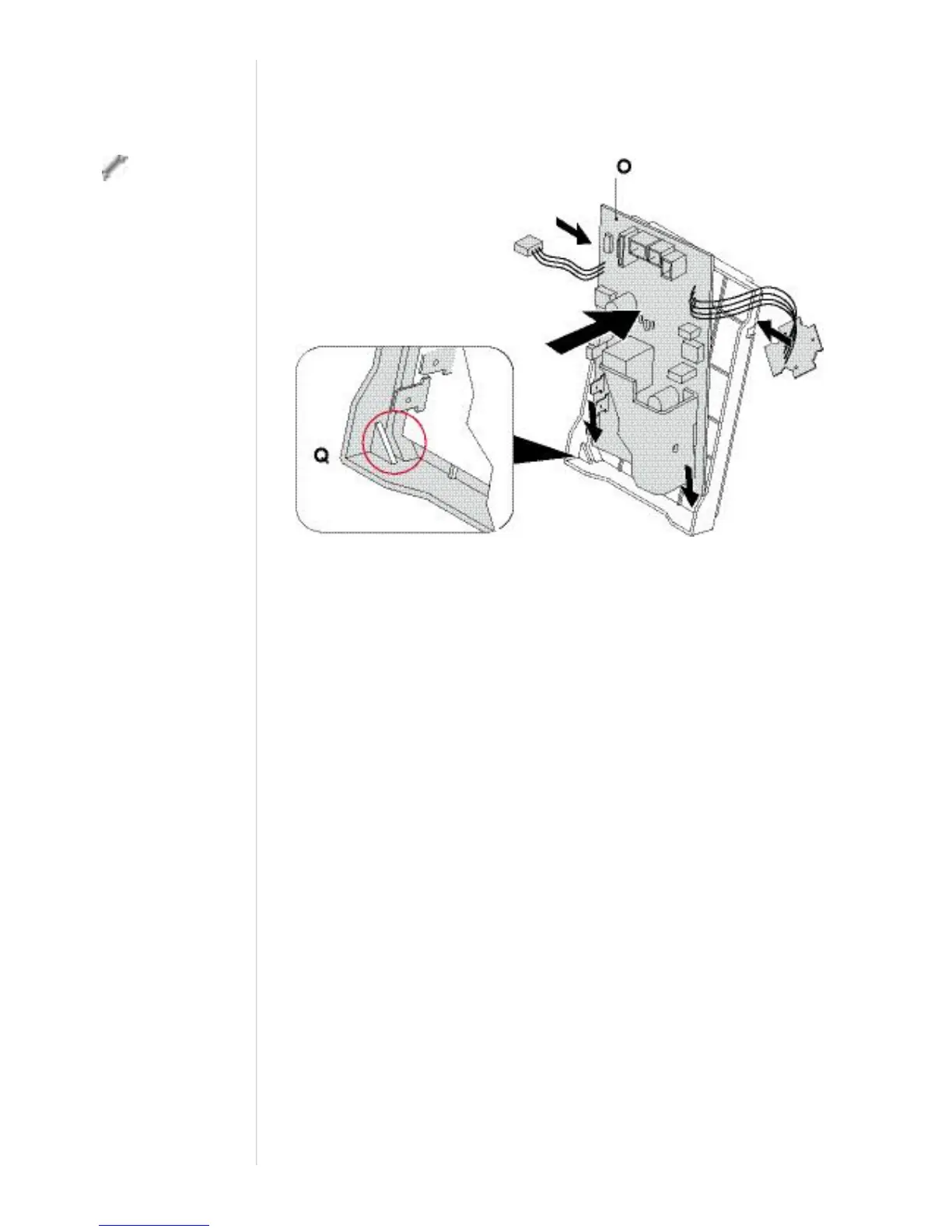

• InsertmainPCB(O)withitsc ornersintotheguidingslotsoftheprotectivecover(Q)
first.ThenpressmainPCBdownandlockitinplace.
• Makesurethatthema inPCBissc rewedwiththespecialplasticw ashertothe
centerpart.
•Forcorrectwiringrefertoelectricalwiringdiagrams.
The PCB assembly
is sensible to elec-
trostatic discharge - use
safety measures.
