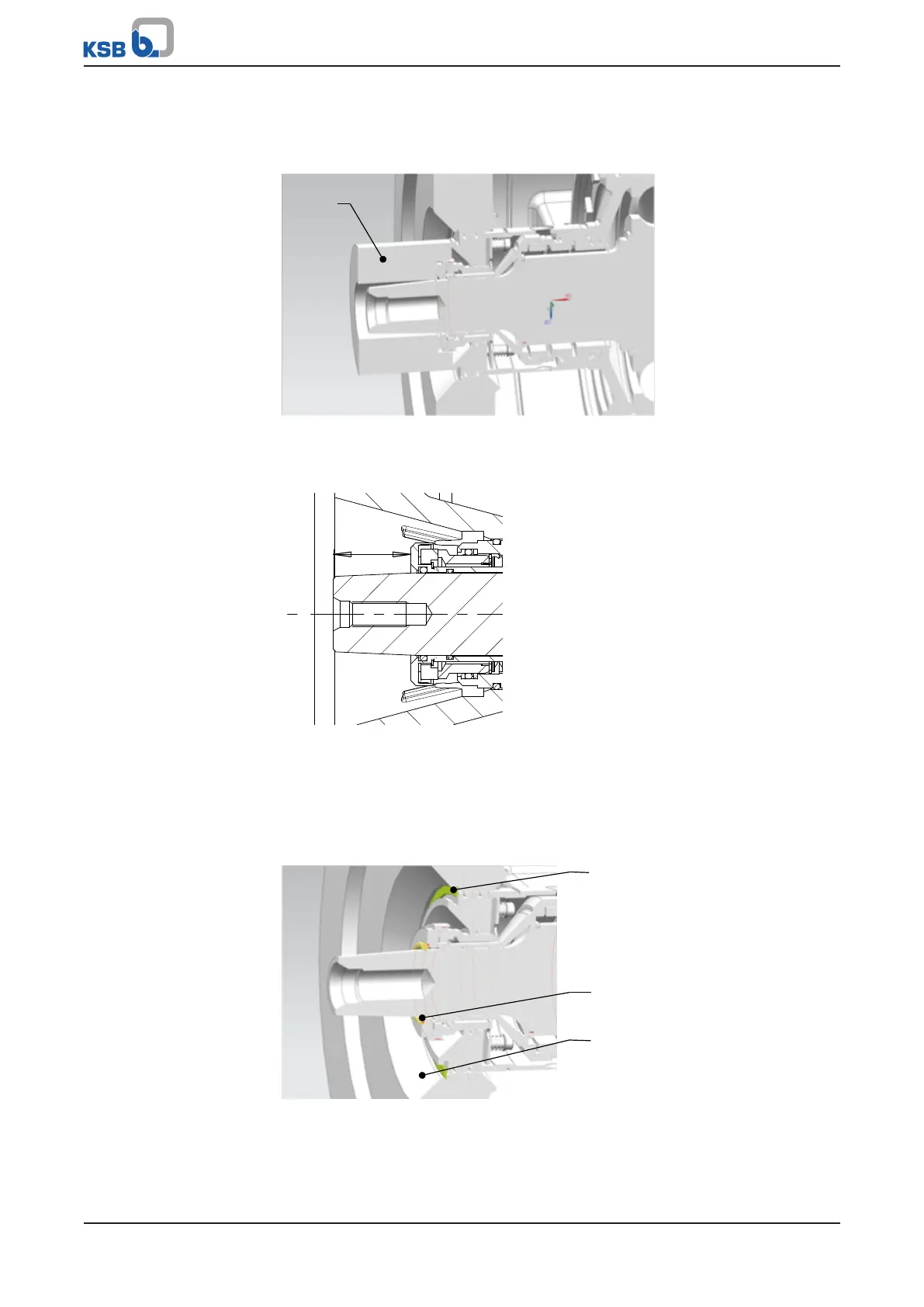

8. Place the mechanical seal on the shaft. Guide it as far into the discharge cover as
possible. Verify that the markingsA are aligned with each other.
C
Fig.8: Mounting device C
K
Fig.9: Reference dimension "K” from shaft end to mechanical seal
9. Position mounting device C on the front face of the mechanical seal. Fit the
mechanical seal. Verify the position of the mechanical seal with reference
dimension “K” = 43+/- 0.5mm; adjust the position if necessary.
932
412
163
Fig.10: Final assembly

KSB 4STQ Series Specifications

General

Category	Food Saver
Series	4STQ
Material	Stainless steel
Application	Food and beverage industry
Motor power	0.75 kW
Connection	Flange
Type	Self-priming centrifugal pump
