9.1.6 Cartridge seal C120/120M1-4STQ
A
A
B
B

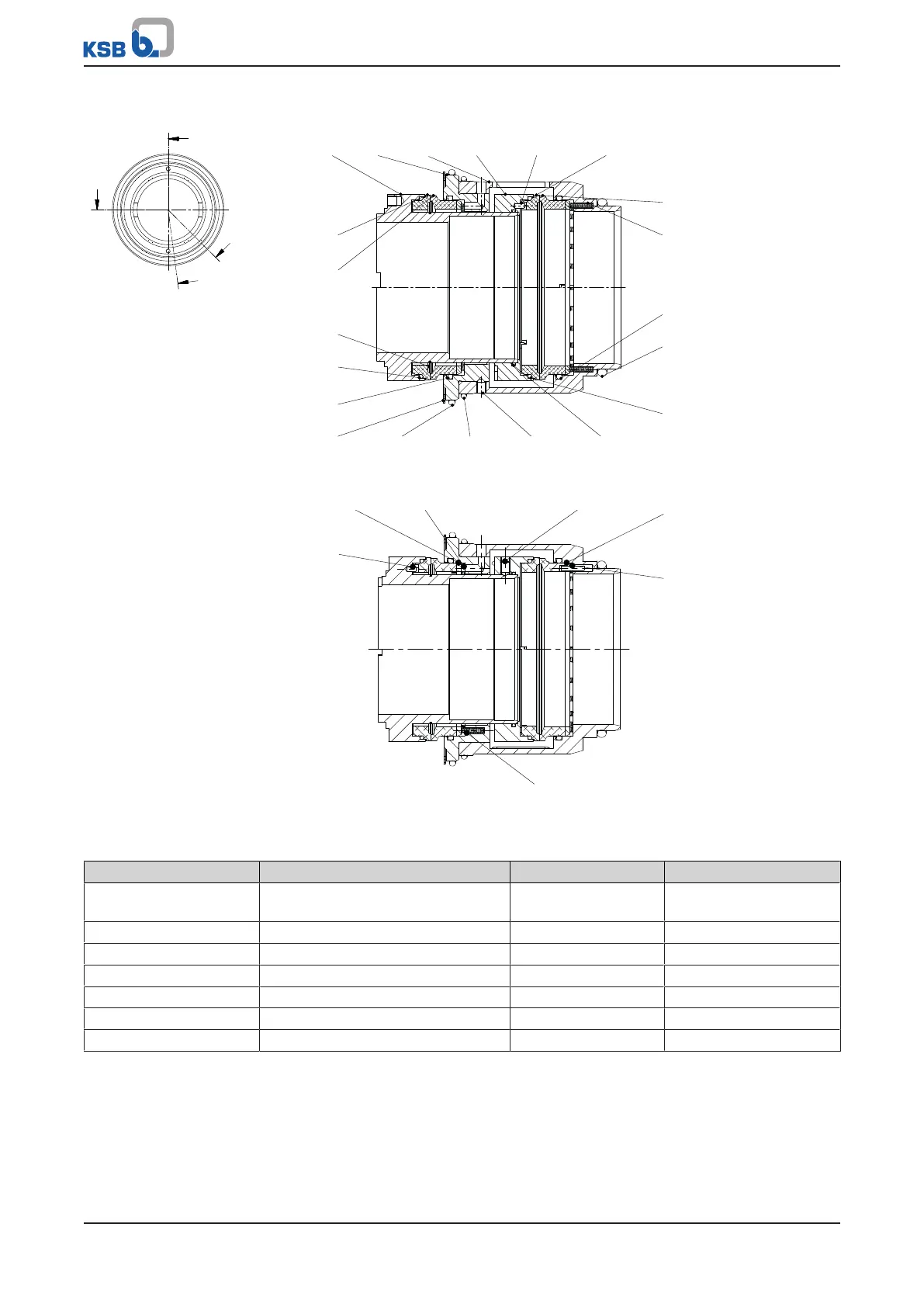

Fig.20: Section axes
523
475.52
472.52
471 441 487
477.53
472.53
475.53562.53
412.59
412.58
932.52
412.52
412.53
412.57
932.53
412.54
412.55 904.52 412.56
Fig.21: View A
474.52
562.52
474.53
562.55
562.54 904.53
477.52 UG1490881CDK
Fig.22: View B
Table12: List of components
Part No. Description Part No. Description
412.52/.53/.54/.55/.56/.57/.
58/.59
O-ring 487 Mating ring carrier
441 Shaft seal housing 523 Shaft sleeve
471 Seal cover 562.52/.53/.54/.55 Parallel pin
472.52/.53 Primary ring 901 Hexagon head bolt
474.52/.53 Thrust ring 904.52/.53 Grub screw
475.52/.53 Mating ring 932.52/.53 Circlip
477.52/.53 Spring for mechanical seal
