KSB 4STQ Series User Manual

9 Related Documents
40 of 44
4STQ
2580.821/04-EN

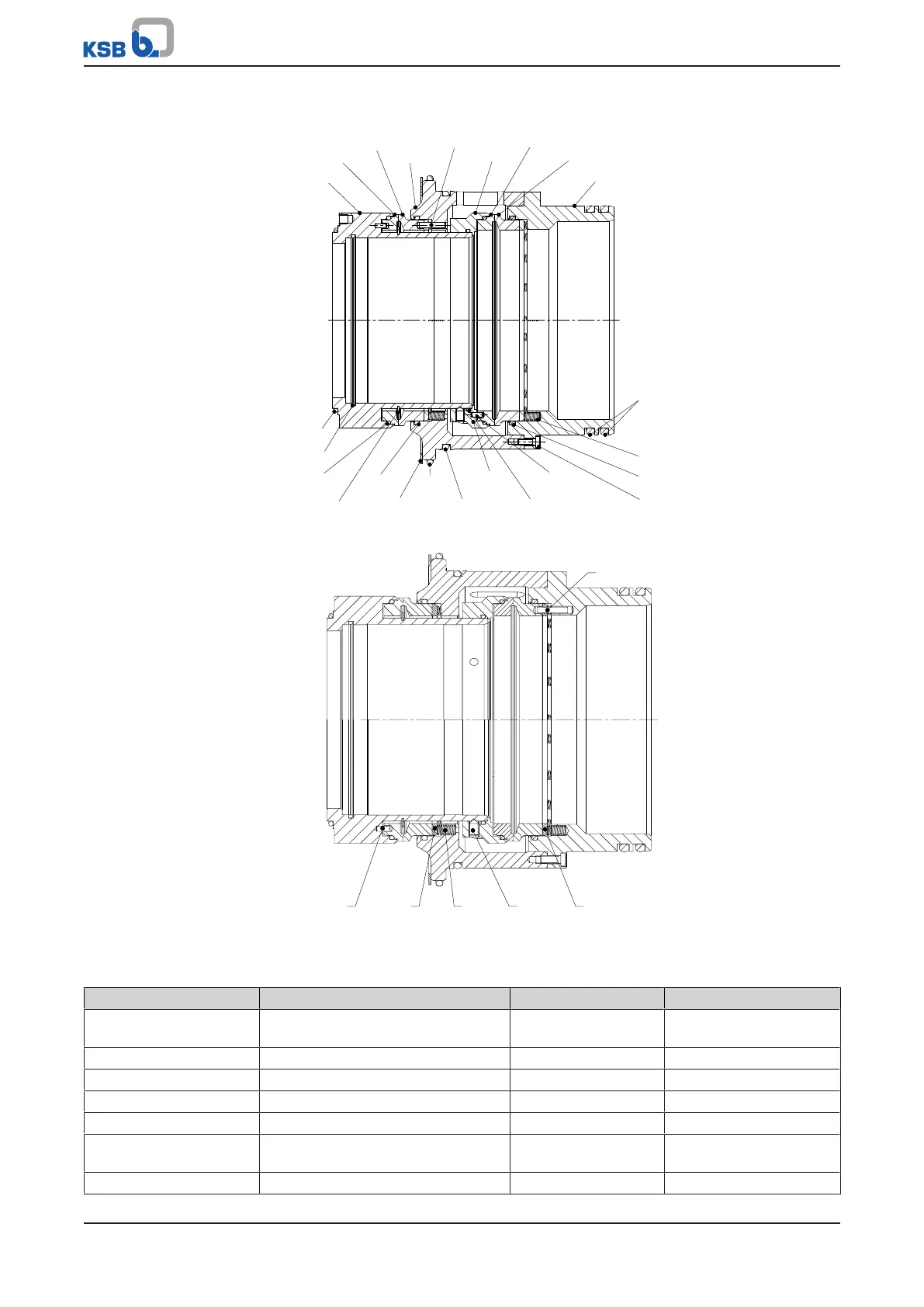

9.1.7 Cartridge seal C150/160M1-4STQ
523
475.52
472.52
471
562.54
487
475.53
472.53
441
412.06
412.59
412.52
932.52
412.53
932.53
412.54
412.55
412.57
412.56
562.53
412.60
477.53
412.58
914.52
Fig.23: View A
562.55
562.52 474.52 477.52 904.53 474.53
Fig.24: View B
Table13: List of components
Part No. Description Part No. Description
412.06/.52/.53/.54/.55/.56/.
57/.58/.59/.60
O-ring 487 Mating ring carrier
441 Shaft seal housing 523 Shaft sleeve
471 Seal cover 562.52/.53/.54/.55 Parallel pin
472.52/.53 Primary ring 901 Hexagon head bolt
474.52/.53 Thrust ring 904.53 Grub screw
475.52/.53 Mating ring 914.52 Hexagon socket head cap
screw
477.52/.53 Spring for mechanical seal 932.52/.53 Circlip
