KSB 4STQ Series User Manual

9 Related Documents
41 of 44
4STQ
2580.821/04-EN

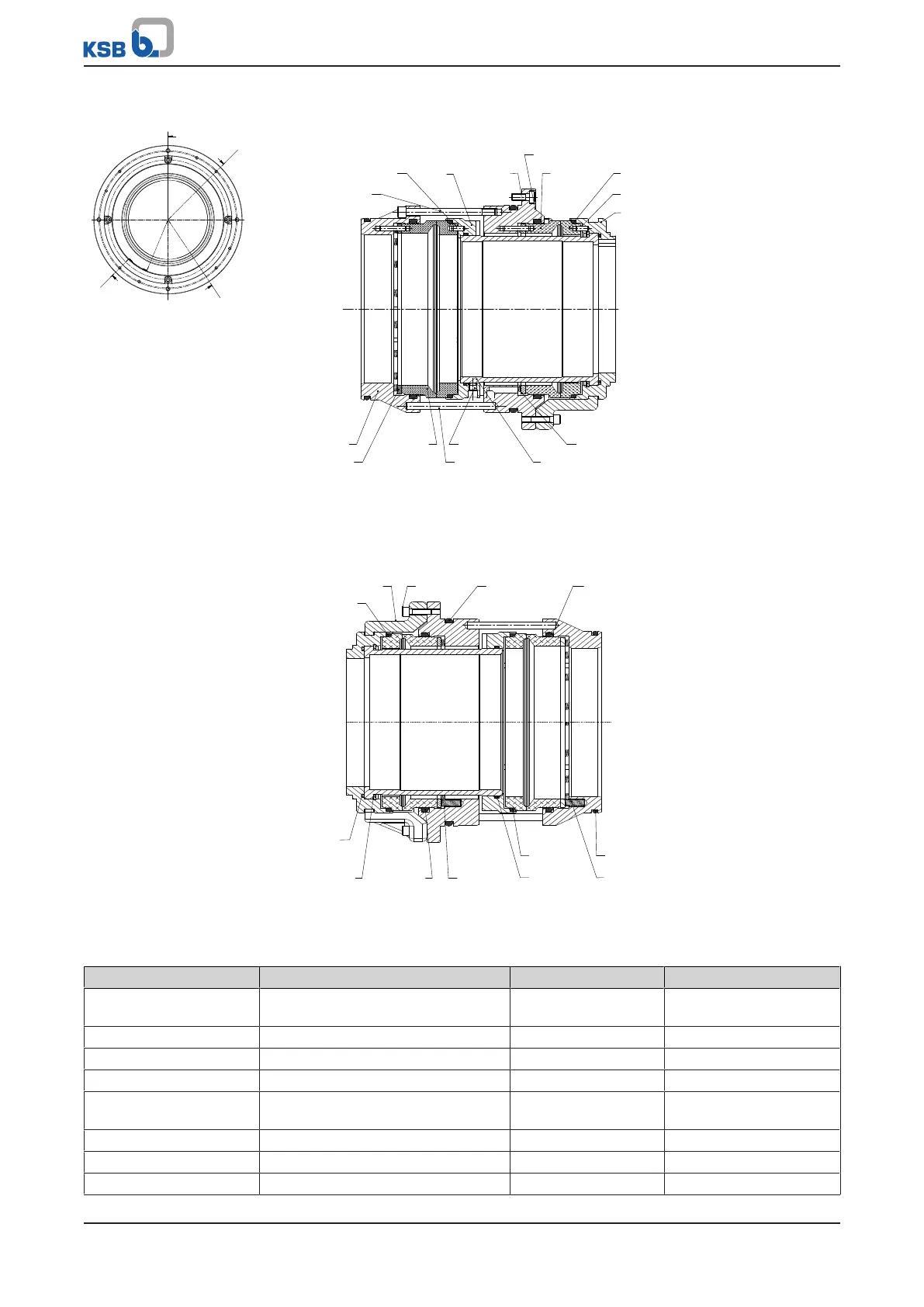

9.1.8 Cartridge seal C190/190M1-4STQ
A
B
B
A
Fig.25: Section axes
914.57
562.55
487 914.52
471
472.52 475.53
562.53
476
441
474.54
472.54
475.57
474.52904.55
523
Fig.26: View A
412.53
96-3
914.51
412.56
412.54
412.59
932 412.52
412.58
477.54
477.52
412.57
412.55
Fig.27: View B
Table14: List of components
Part No. Description Part No. Description
412.51/.52/.53/.54/.55/.56/.
57/.58/.59
O-ring 487 Mating ring carrier
471 Seal cover 523 Shaft sleeve
473 Primary ring carrier 562.53/.55/.57 Parallel pin
472.52/.54 Primary ring 904.55 Grub screw
474.52/.54 Thrust ring 914.51/.52/.54/.57 Hexagon socket head cap
screw
475.53/.55 Mating ring 932 Circlip
476 Mating ring carrier 96-3 Assembly fixture
477.52/.54 Spring for mechanical seal
