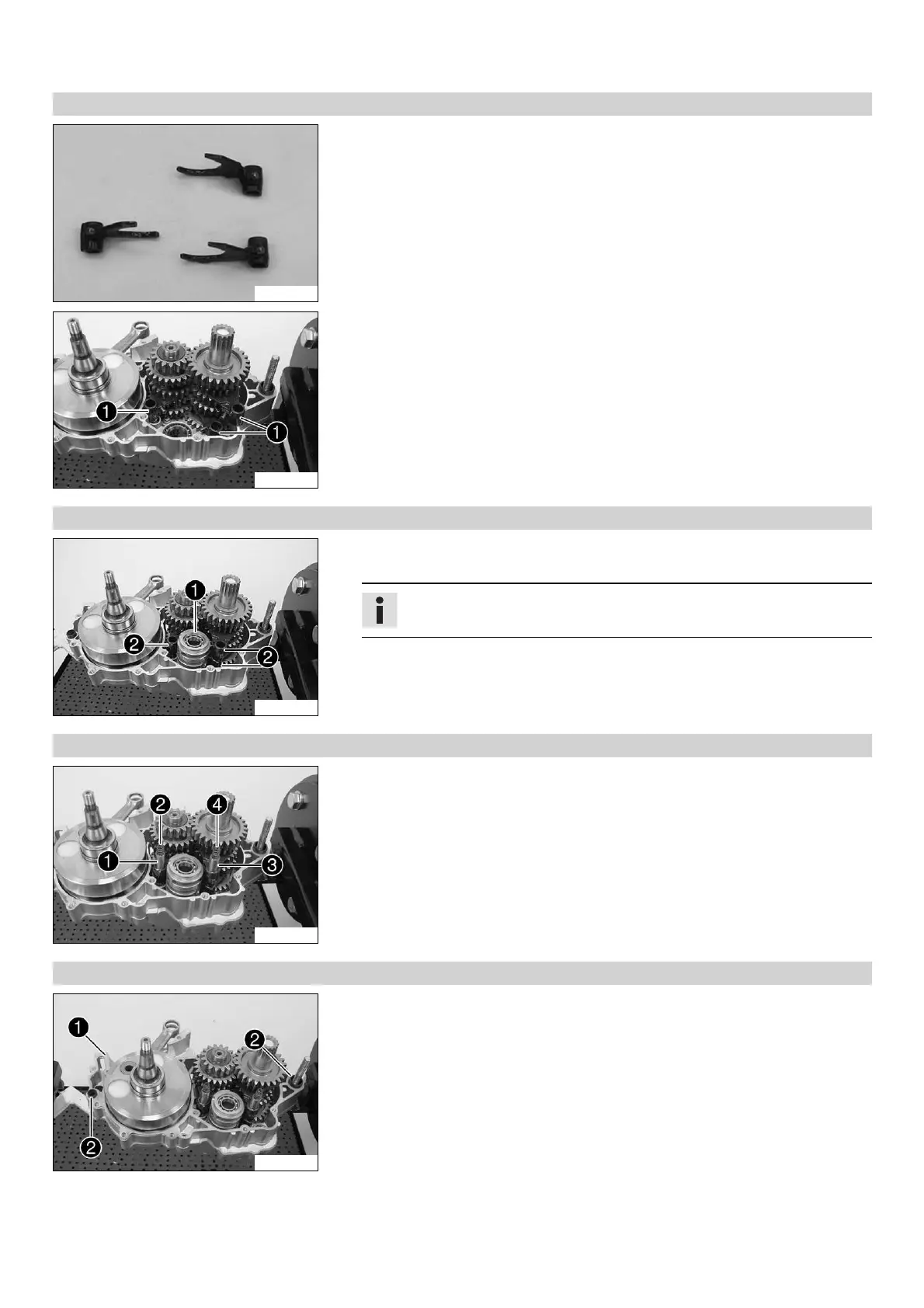

18 ENGINE 171
18.5.3 Installing the shift forks
303023-10
Arrange the shift forks as shown above.
308178-10
Position shift forks
1
in the shift grooves.
18.5.4 Installing the shift drum
308177-11
Push shift drum
1
into the bearing seat.
Put shift forks
2
in the shift drum.
Info
Do not misplace the shift rollers.
18.5.5 Installing the shift rails
308176-11
Install shift rail
1
together with upper spring
2
and the lower spring.
Install shift rail
3
together with upper spring
4
.
18.5.6 Installing the left engine case section
308175-11
Coat the sealing area thinly with grease.
Mount engine case gasket
1
.
Check that dowels
2
are seated correctly.
