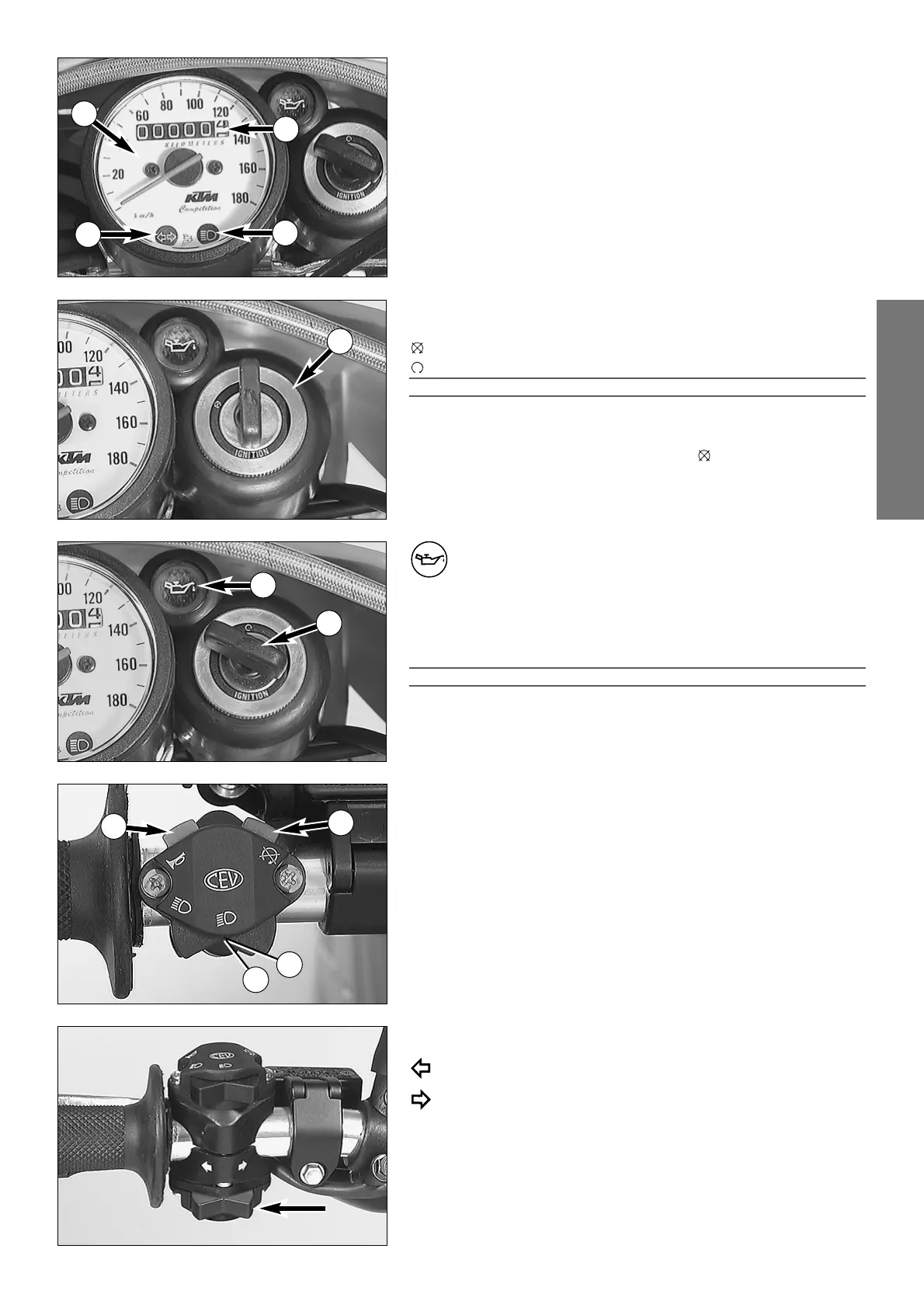

Speedometer, indicator lamps
The mileage indicator A in the speedometer 1 indicates overall mileage.
When the turn indicator is on, the green indicator lamp
2 will be flashing in
the same rhythm.
The blue indicator lamp
3 will be lit when the high beam is on
Ignition lock
Switch positions of ignition lock 4
= Ignition off
= Ignition on, parking light on (only for models with battery)
!
CAUTION
!
D
ONT TURN THE PARK LIGHT FOR MORE THAN 90 MINUETS, WHEN THE MOTOR IS NOT
RUNNING
, BECAUSE THE BATTERY WILL BE COMPLETLY EMPTIED AND DESTRYED.
The ignition key
5 can be removed when in its position.
The red oil level warning lamp 6 lights up when the ignition is swit-
ched on, indicating that the oil level warning system works properly.
– If the two-stroke oil level in the oil tank is sufficiently high, the oil level
warning lamp will go out after approximately two seconds.
–
If the oil level has decreased to approximately 300 ccm, the oil level war-
ning lamp will stay on, reminding you that the oil tank must be refilled with
two-stroke oil (e.g. Shell Advance Ultra 2) within the next 100 kilometers.
!
CAUTION
!
–C
HECK FUNCTION OF OIL LEVEL WARNING LAMP BEFORE EVERY RIDE
–ONCE THERE IS NO TWO-STROKE OIL IN THE OIL TANK, THE ENGINE IS BOUND TO
BREAK DOWN
.
Combination switch
The light switch has 2 switch positions.
A = Low beam on
B = High beam on
You may use button
7 to actuate the horn.
The red short circuit button
8 serves to switch off the engine. Leave the
switch pressed until the engine stops.
Flasher switch
Flasher left
Flasher right
