KTM 125 User Manual

ENGLISH
9

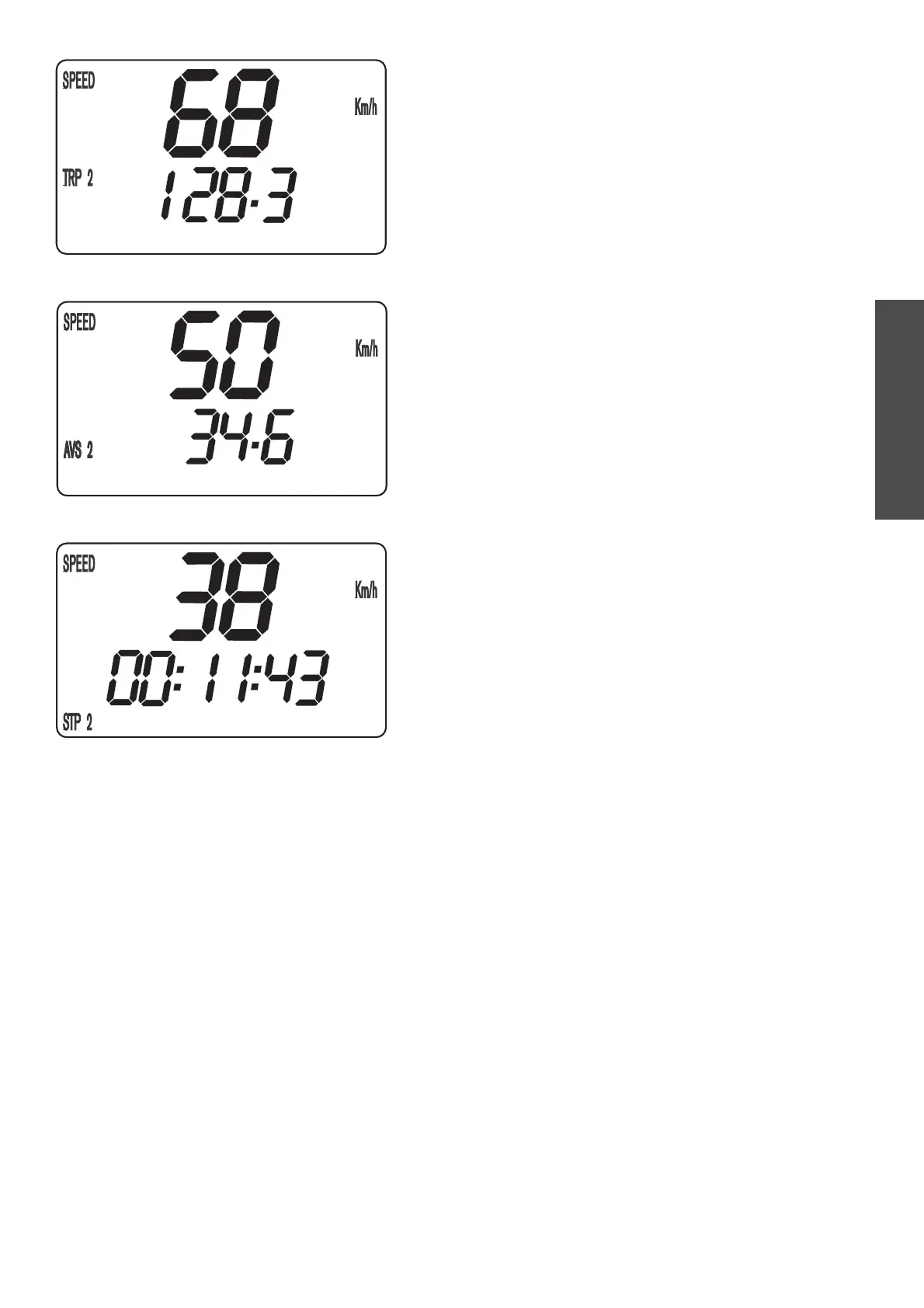

SPEED/TRP2 (trip 2) display mode
The TRP2 trip meter is always active and counts to 999.9. Contrary to
TRP1, the displayed figure can be changed using the + and – buttons. This
is a very useful function for trips taken according to a roadbook.
TRP2 is activated by the first impulse received from the wheel sensor and
stops automatically 3 seconds after the last impulse is received.
+
BUTTON increases the TRP2 figure
–
BUTTON decreases the TRP2 figure
press the MODE
BUTTON to change to the next mode
press and hold the MODE
BUTTON 3 SECONDS to reset TRP2 to 0
SPEED/AVS2 (average speed 2) display mode
AVS2 shows the average speed based on the TRP2 and STP2 figures. The
calculation of this figure is activated by the first impulse received from the
wheel sensor and stops 3 seconds after the last impulse is received.
The displayed figure will deviate from the actual average speed if TRP2 was
changed manually or if STP2 was not stopped after the trip.
+
BUTTON no function
–
BUTTON no function
press the MODE
BUTTON to change to the next mode
press and hold the MODE
BUTTON 3 SECONDS to change to the next mode
SPEED/STP2 (stop 2) display mode
STP2 is a manual stop watch. Start the stop watch by pressing the + but-
ton, press again to hold. Press again to continue timing.
Press the MODE button to change to the next mode. The STP2 display will
blink in the other modes if STP2 continues to run in the background. To
stop STP2, return to the SPEED/STP2 mode and press the + button.
+
BUTTON starts and stops the stop watch
–
BUTTON no function
press the MODE
BUTTON to change to the next mode
press and hold the MODE
BUTTON 3 SECONDS to reset STP2 figures to 0

KTM 125 Specifications

General

Bore x Stroke	54 mm x 54.5 mm
Starter	Kickstarter
Transmission	6-speed
Engine Type	Single-cylinder, 2-stroke
Displacement	124.8 cm³
Cooling System	Liquid cooled
Fuel System	Carburetor
Lubrication	Premix (oil-fuel mixture)
