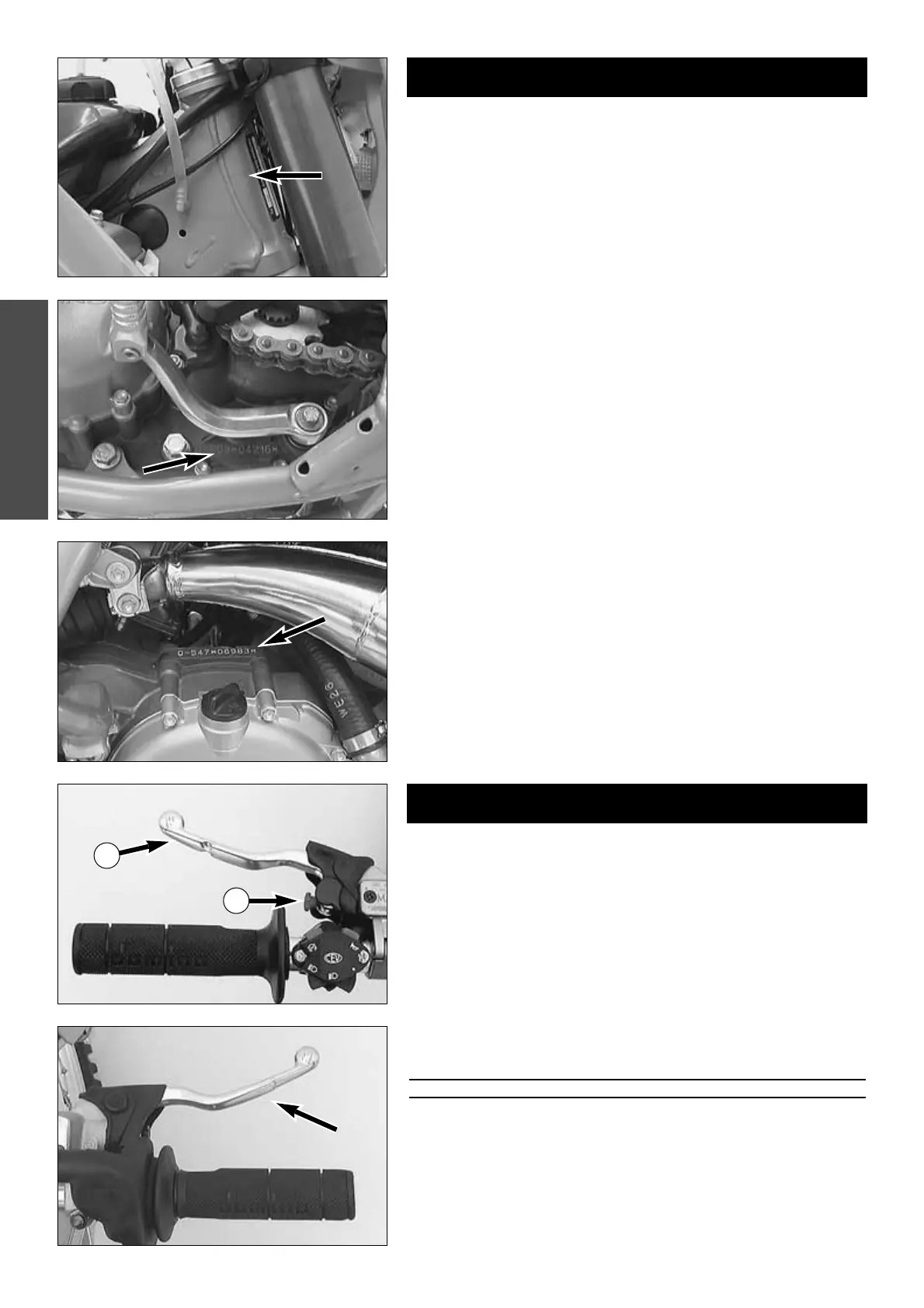

Chassis number
The chassis number is stamped on the right side of the steering head tube.
Write this number into the field on page no 1.
Engine number, engine type (125/200)
The engine number and the engine type are stamped into the left side of
the engine below the engine sprocket. Please note this number down on
page 1.
Engine number, engine type (250/300/380)
Engine number and engine type are stamped on the right hand side of the
engine in front of the kickstarter. Write this number into the relevant area
on page 1.
SERIAL NUMBER LOCATIONS
OPERATION INSTRUMENTS
Clutch lever
The clutch lever 1 is located on the left side of the handlebar. The adju-
sting screw
A is used to change the original position of the clutch lever (see
maintenance work on chassis and engine).
Hand brake lever
The hand brake lever is mounted on the handle bars on the right and actua-
tes the front wheel brake.
WARNING
IF THE RESISTANCE IN THE HAND BRAKE LEVER OR FOOT BRAKE PEDAL FEELS “SPONGY”
(
TOO MUCH GIVE), THIS IS AN INDICATION THAT SOMETHING IS WRONG WITH THE
BRAKE SYSTEM
. DON’T RIDE YOUR MOTORCYCLE ANYMORE WITHOUT FIRST HAVING THE
BRAKE SYSTEM LOOKED OVER BY A
KTM DEALER.
1
A
