KTM 1290 SUPER ADVENTURE R 2017 User Manual

13 SERVICE WORK ON THE CHASSIS 167

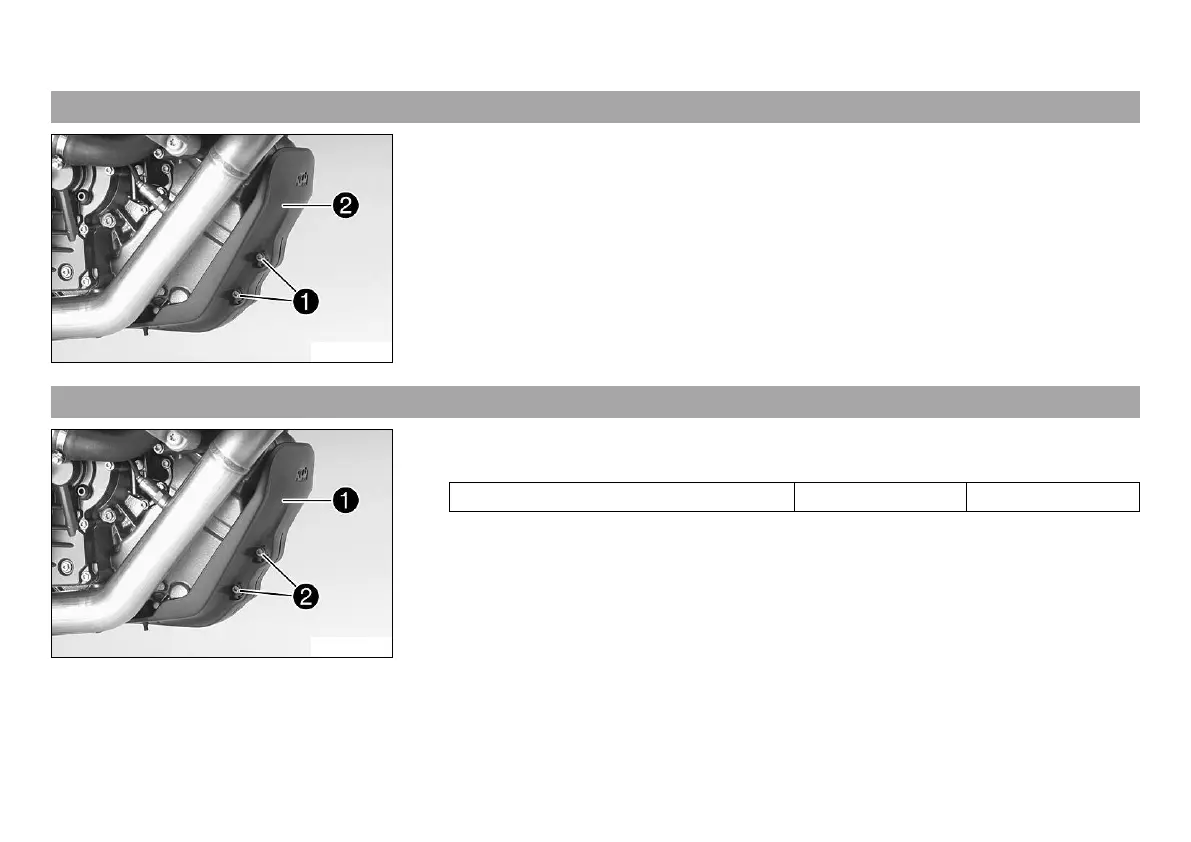

13.25 Removing the engine guard
S00331-10
–
Remove screws
1
with bushings and engine guard
2
.
13.26 Installing the engine guard
S00331-11
–
Position engine guard
1
, mount screws
2
with bushings and tighten.
Guideline
Screw, engine guard M6 10 Nm (7.4 lbf ft)

KTM 1290 SUPER ADVENTURE R 2017 Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1301 cc
Bore x Stroke	108 mm x 71 mm
Compression Ratio	13.1:1
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP USD Ø 48 mm
Front Wheel	2.50 x 21"
Rear Wheel	4.50 x 18"
Front Tire	90/90-21
Rear Tire	150/70-18
Seat Height	890 mm
Ground Clearance	250 mm
Fuel Capacity	23 liters
Dry Weight	217 kg
Power	118 kW (160 hp) @ 8, 750 rpm
Torque	140 Nm @ 6750 rpm
Fuel System	Keihin EFI
Frame	Chromoly steel trellis frame, powder coated
Rear Suspension	WP monoshock
Front Brake	2 x 320 mm discs, 4-piston radial fixed caliper
Rear Brake	Brembo two-piston caliper, 267 mm disc
ABS	Bosch 9ME Combined-ABS
Wheelbase	1580 mm
