KTM 1290 Super Duke R EU 2015 Setup Instructions

2 SETUP 4
L01506-01

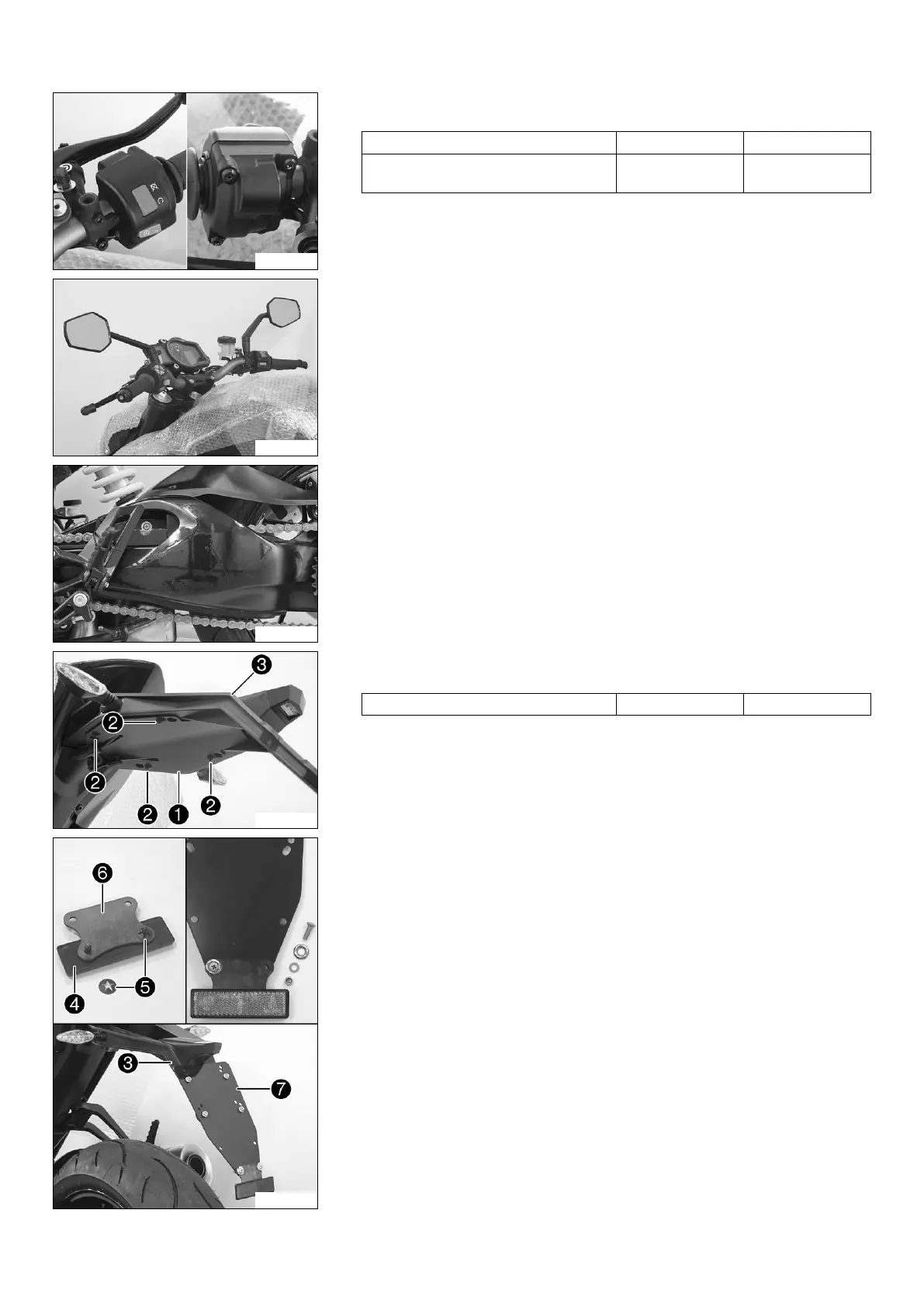

– Tighten the controls on the right half of the handlebar.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Screw, combination switch, right M5 3.5 Nm
(2.58 lbf ft)
– Check the throttle grip for smooth operation.
L01498-01
– Mount and tighten the rear mirror on both sides.
L01502-01
– Tape on the protective plastic sheet for the swingarm.
– Remove the cable binder of the rider footrests.
L01501-10
–
Mount splash protector

with screws

on license plate holder

.
Guideline
Remaining screws, chassis EJOT PT
®
K50x12 1 Nm (0.7 lbf ft)
L01500-10
–
Mount reflector

with spring washers

on holding plate

.
–
Mount holding plate

on license plate bracket

.
(1290 Super Duke R EU, 1290 Super Duke R AU, 1290 Super Duke R FR)
–
Mount license plate bracket

on license plate holder

.
(1290 Super Duke R CN, 1290 Super Duke R US)
– Bond the reflectors on the right and left side of the reflector holder.
–
Mount the reflector holder and license plate bracket

on license plate
holder

.
