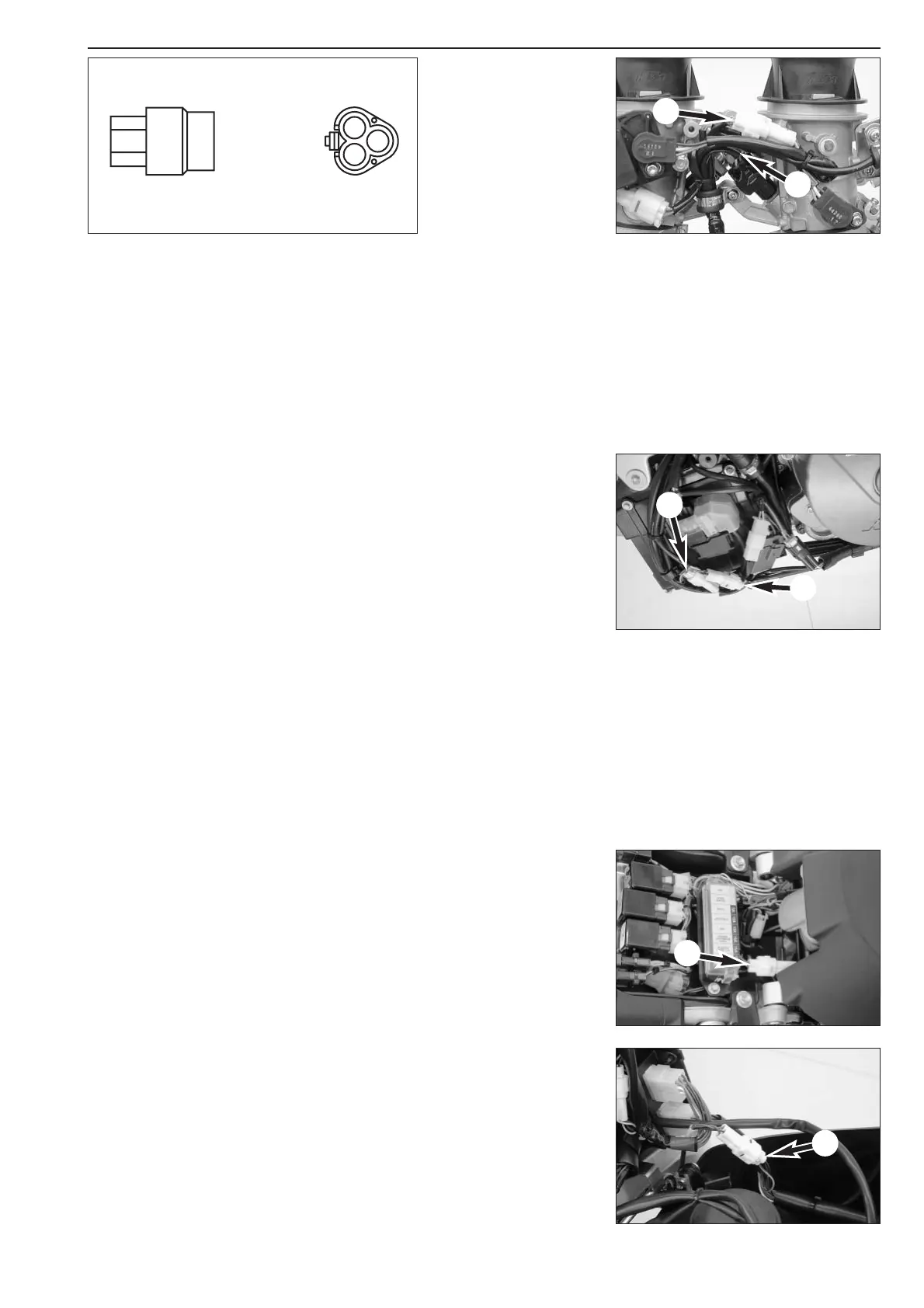

Repair manual KTM LC8 Art.-No. 3.206.035-E
1
3
Connector AM
3-pole
1
Throttle sensor for the
2nd throttle
On the throttle body
Connector AM1
3-pole
2
Throttle sensor
On the throttle body
Connector AM2
3-pole
3
Gear sensor
On the left next to the
battery case
Connector AM3
3-pole
4
Side stand
On the left next to the
battery case
Connector AM4
3-pole
5
Fuel pump
In front of the fuse box
Connector AM5
3-pole
6
Speed sensor
Behind the headlight
mask
6
5
3
4
1
2
