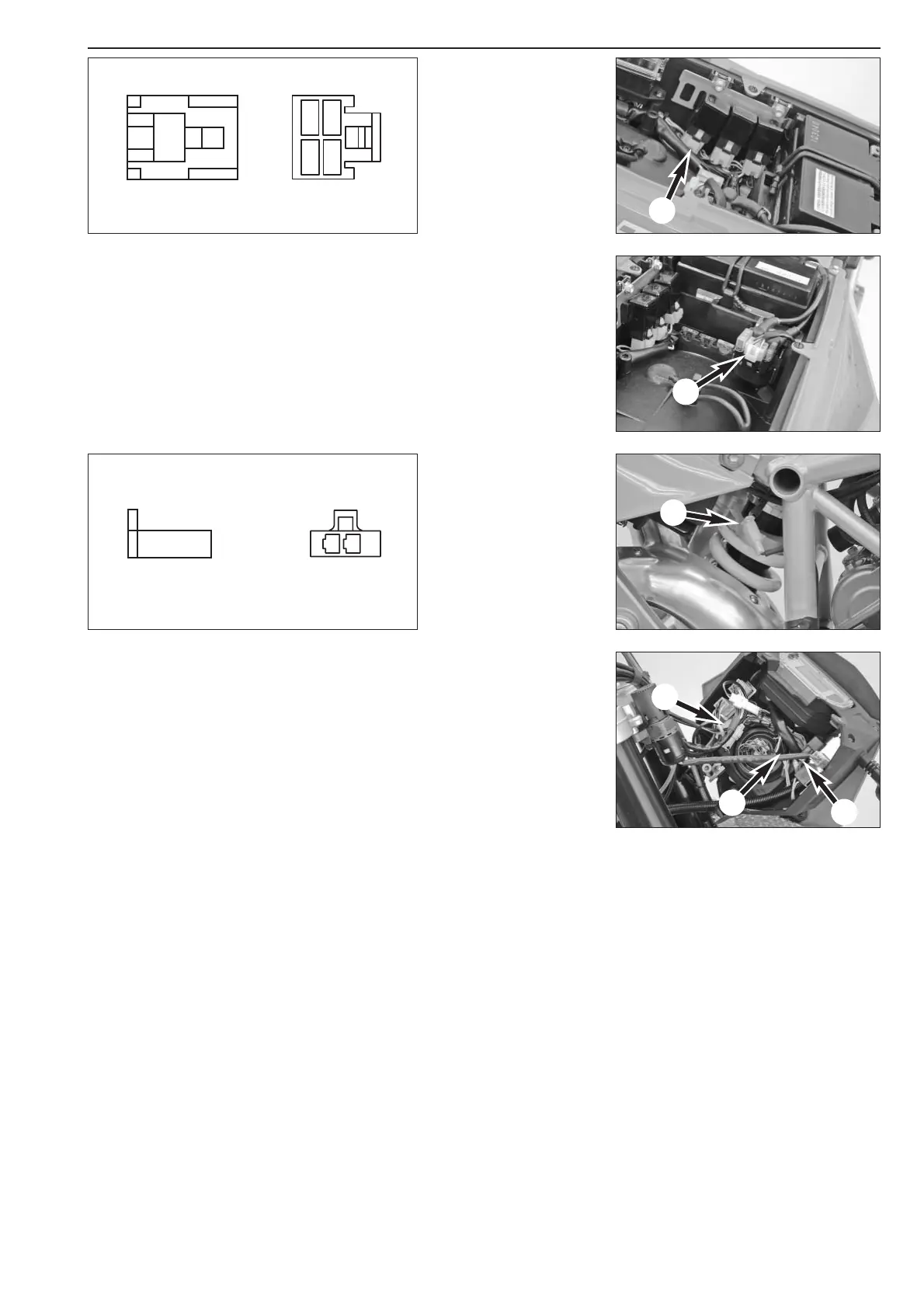

KTM 2003 950 Adventure - Lighting Relay; Start Relay; Temperature Switch for Carburetor Heater

13-79
Repair manual KTM LC8 Art.-No. 3.206.035-E
Connector AF2
4-pole
1
Lighting relay
Under the seat
2
1
Connector AF3
2-pole
2
Start relay
Under the seat
Connector AH
2-pole
3
Rear brake light switch
On the right side of the
frame
Connector AH1
2-pole
4
Front brake light switch
Behind the headlight
Connector AH2
2-pole
5
Temperature switch for
carburetor heater
Behind the headlight
Connector AH3
2-pole
6
Turn signal relay
Behind the headlight
1
4
2
1
2
3
4
5
6
