7 COMBINATION INSTRUMENT 38

401461-01

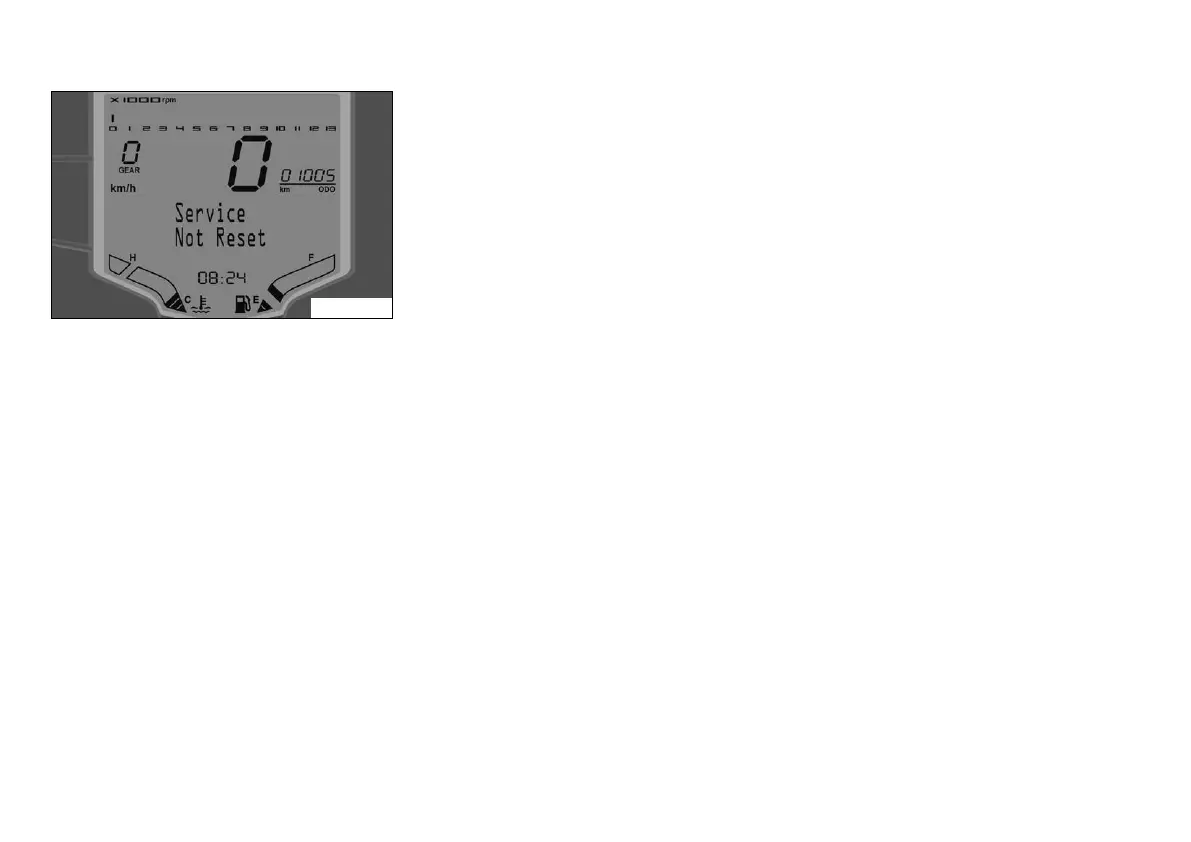

Service Not Reset appears on the info display for 10 seconds when the ignition is switched

on and the distance interval between service appointments has been exceeded or the

service interval display was not reset during a service appointment.
