12 SERVICE WORK ON THE CHASSIS 97

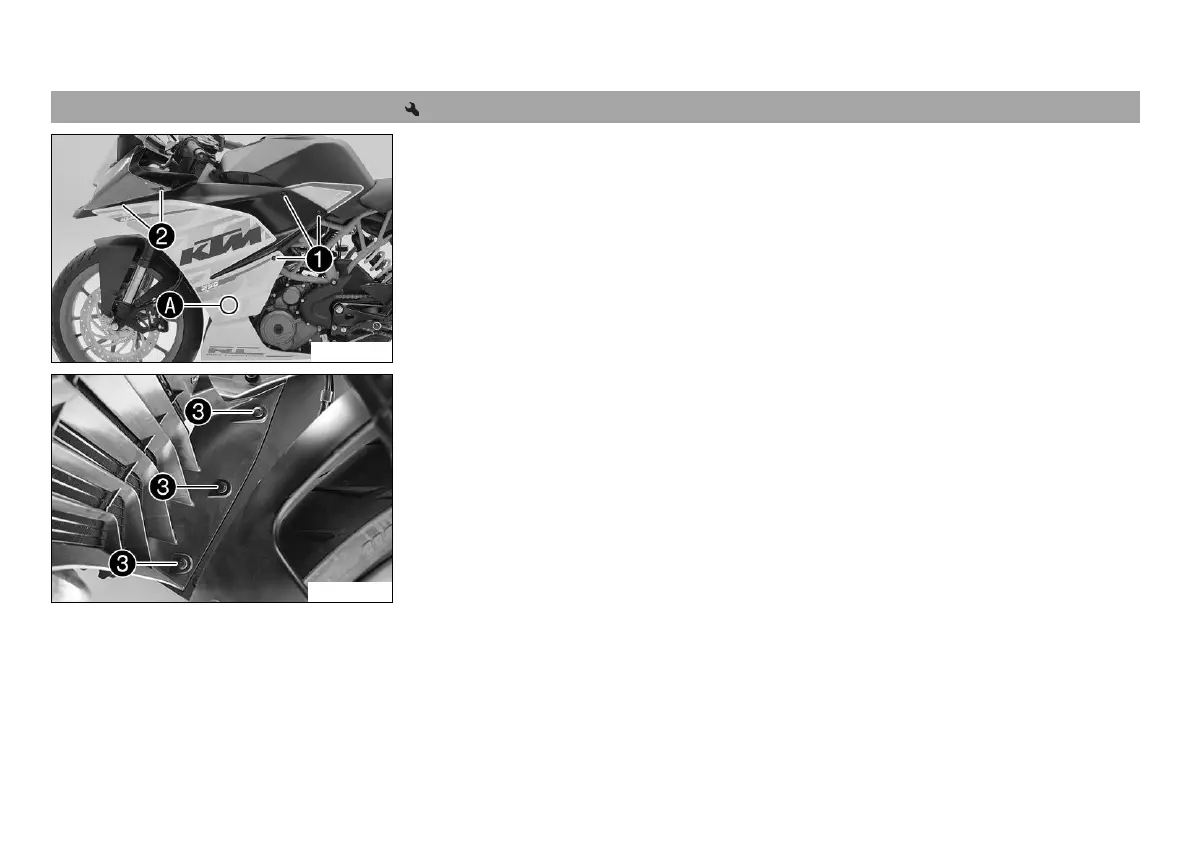

12.18 Removing the left side cover

S00781-10

–

Remove screws



.

–

Remove screws



.

–

Pull off holding lug in area



.

M00456-10

–

Remove expanding rivet



.
