10 TUNING THE CHASSIS
42
Guideline
Rebound damping
Comfort 23 clicks
Standard 18 clicks
Sport 13 clicks
Info
Turn clockwise to increase the damping; turn counter-
clockwise to reduce damping when the shock absorber
rebounds.
–
Mount protection cap
1
.

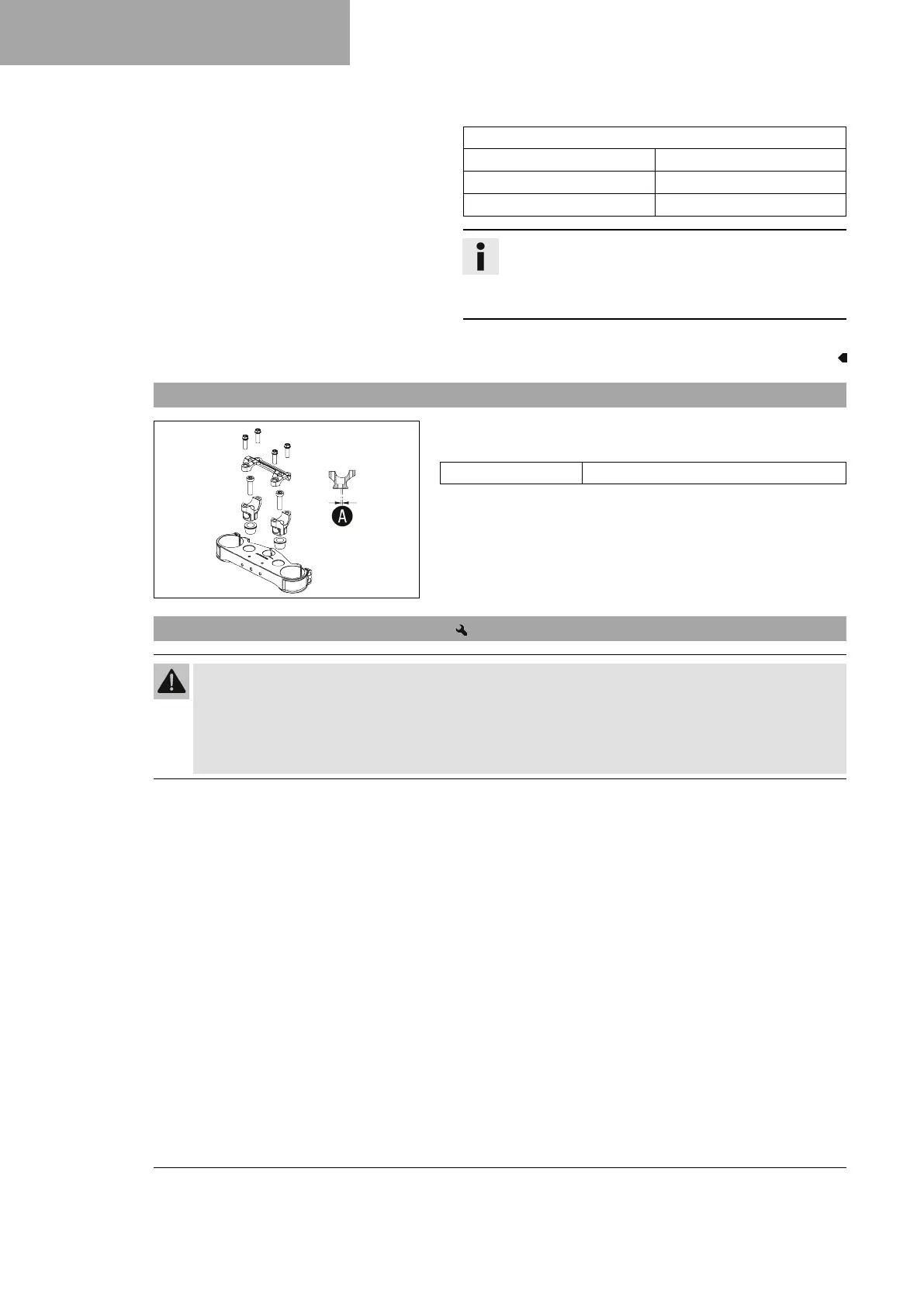

10.16 Handlebar position
H01188-10
The holes on the handlebar supports are placed at a distance
of
A
from the center.
Hole distance A 3.5 mm (0.138 in)
The handlebar can be mounted in 2 different positions. In this
way, the handlebar can be mounted in the most comfortable posi-
tion for the rider.
10.17 Adjusting the handlebar position
Warning
Danger of accidents A repaired handlebar poses a safety risk.
If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged or bent.
Preparatory work
– Remove the handlebar cushion.
