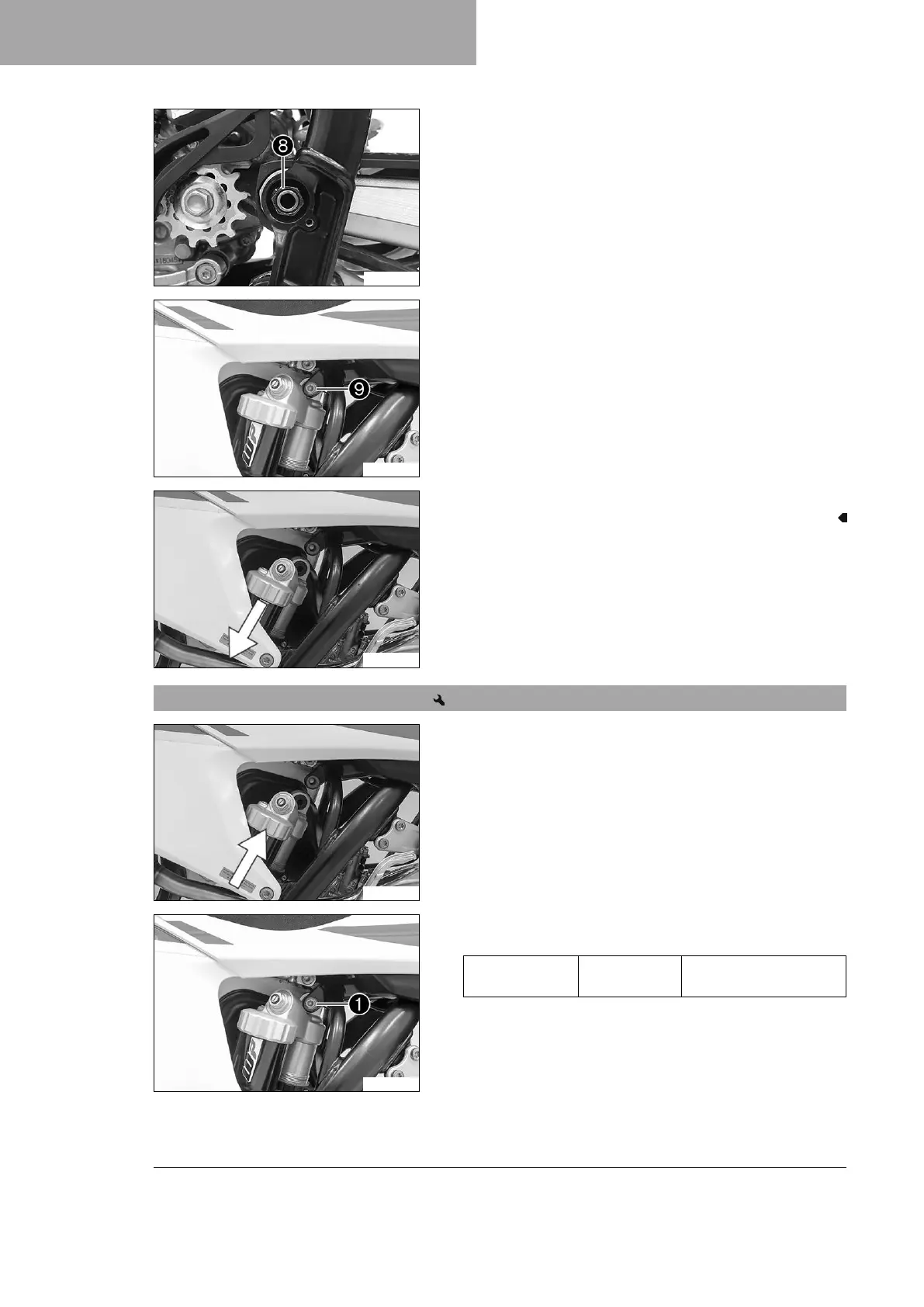

11 SERVICE WORK ON THE CHASSIS
54
V01526-10
–
Remove nut
8
and pull out the swingarm pivot.
– Push the link fork back and secure it against falling over.
K01139-10
–
Hold the shock absorber and remove screw
9
.
K01140-10
– Remove the shock absorber carefully at the bottom.
11.19 Installing the shock absorber
K01140-11
Main work
– Carefully position the shock absorber into the vehicle from the
bottom.
K01139-11
–
Mount and tighten screw
1
.
Guideline
Screw, top
shock absorber
M10 60 Nm (44.3 lbf ft)
Loctite
®
2701™
