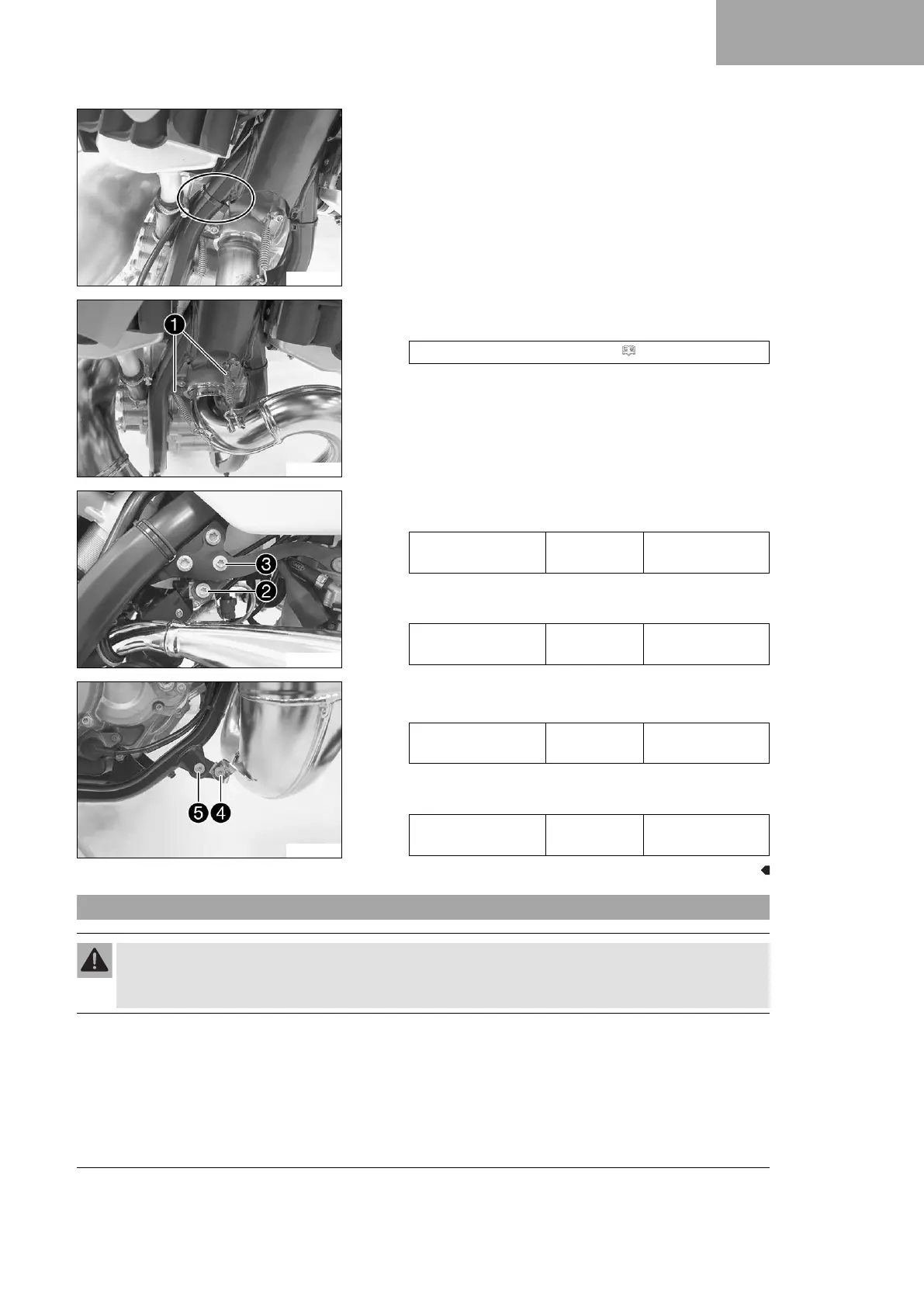

EXHAUST 10

113

R02818-10

– Route the cable without tension and secure it with a cable

tie.

R02822-10

(All XC‑W models)

–

Position the manifold and mount springs

Spring hook (5030501700004) ( p. 371)

R02824-11

–

Mount and tighten screw

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

–

Tighten screw

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

R02909-11

–

Mount and tighten screw

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

–

Tighten screw

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

10.3 Removing the main silencer

Warning

Danger of burns The exhaust system gets very hot when the vehicle is driven.

– Allow the exhaust system to cool down before performing any work on the vehicle.
