13 MASK, FENDER
134

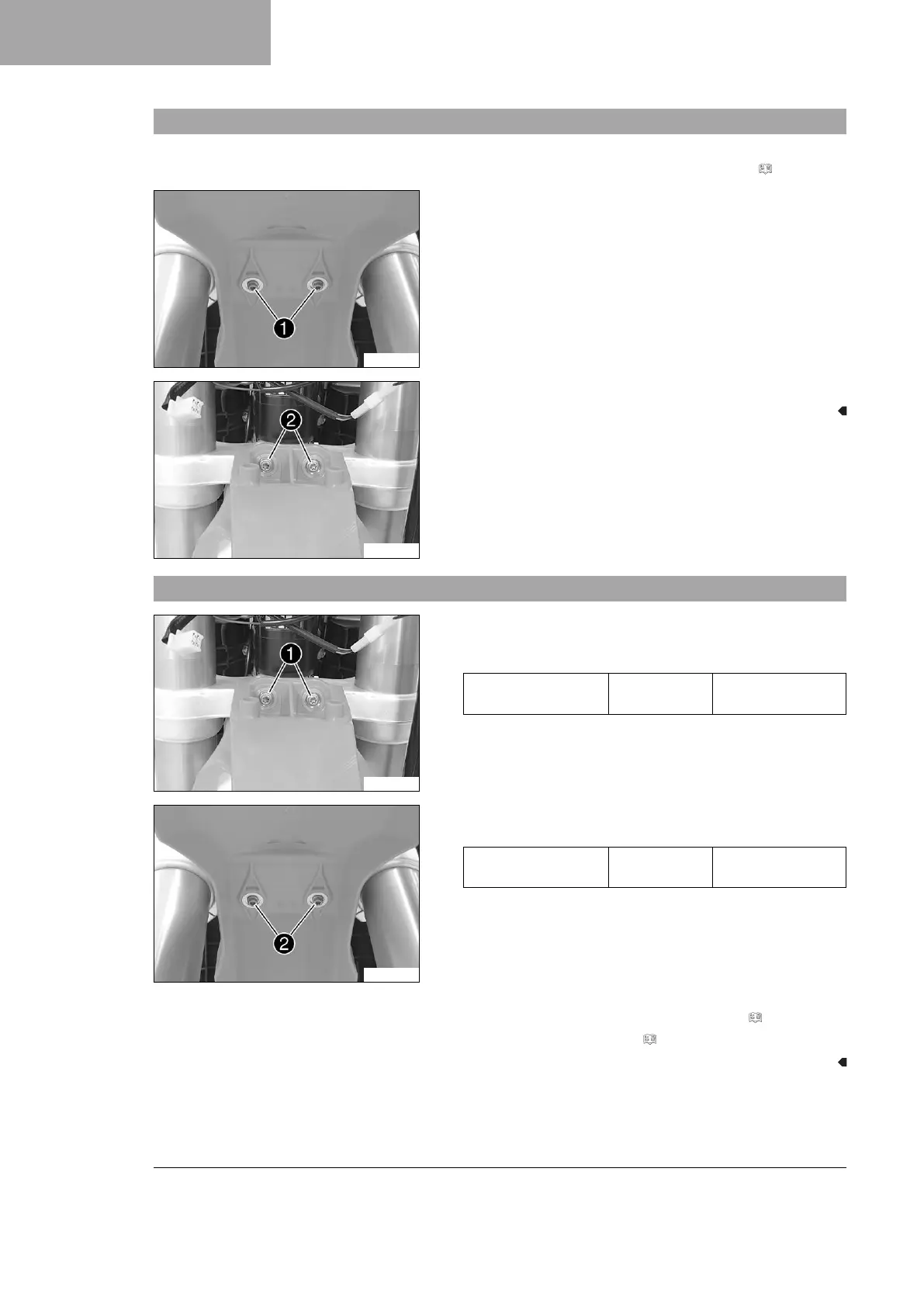

13.1 Removing front fender
Preparatory work
– Remove the headlight mask with the headlight. ( p. 135)
V00340-10
Main work
–
Remove screws
1
.
V00341-10
–
Remove screws
2
. Take off front fender.
13.2 Installing front fender
V00341-11
Main work
–
Position front fender. Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
V00340-11
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the headlight mask with the headlight. ( p. 135)
– Check the headlight setting. ( p. 183)
