ENGINE 18

203

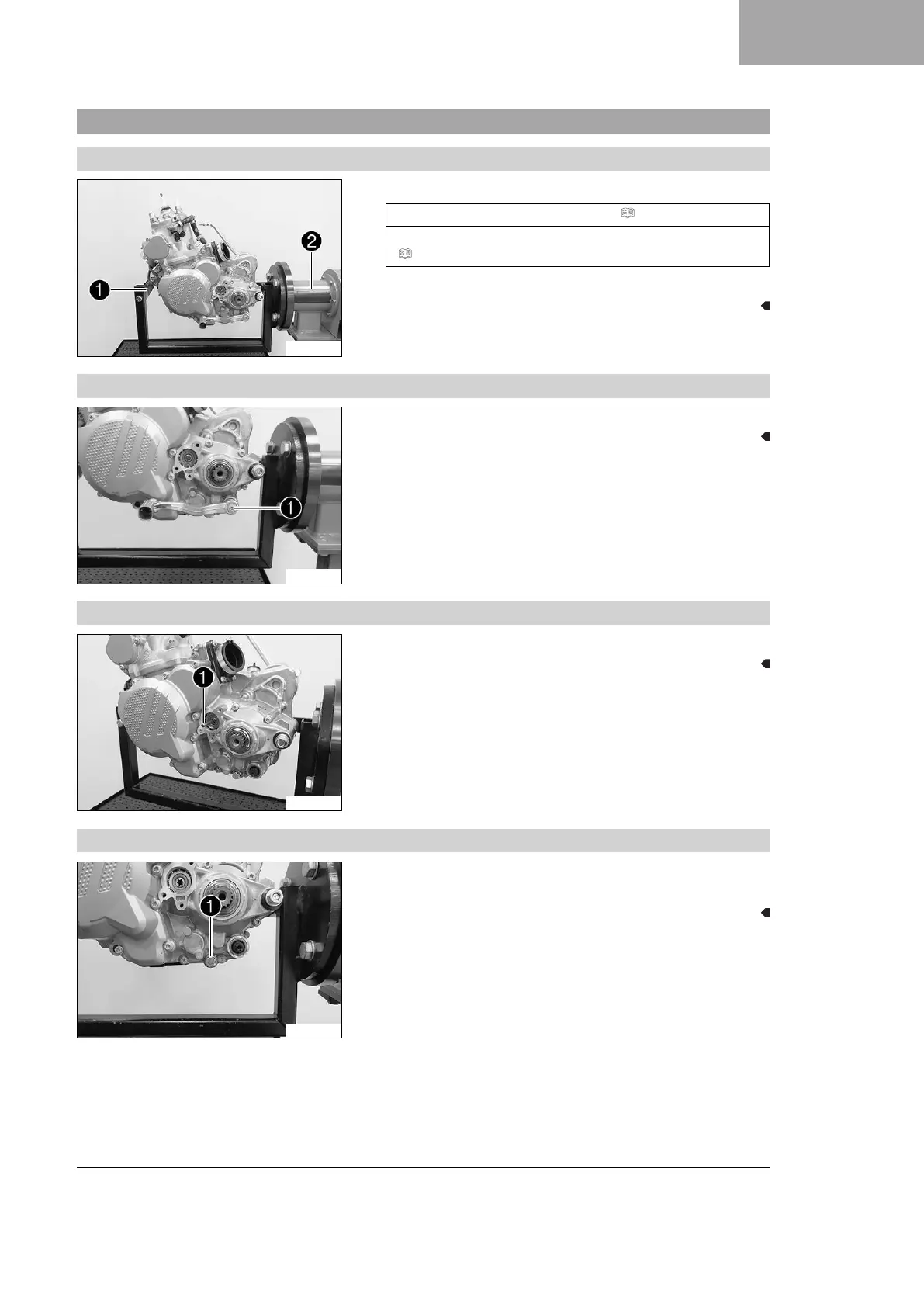

18.4 Engine disassembly

18.4.1 Clamping the engine into the engine work stand

D04395-10

–

Mount special tool

on engine work stand

Engine work stand (61229001000) ( p. 370)

Holder and fitting for work stand (55429002000)

( p. 365)

–

Mount the engine on special tool

18.4.2 Removing the shift lever

D04396-10

–

Remove screw

with the washers. Take off the shift lever.

18.4.3 Removing the clutch push rod

D04397-10

–

Remove clutch push rod

18.4.4 Draining the gear oil

D04398-10

–

Remove gear oil drain plug

with the magnet and seal ring.

– Let the gear oil drain fully.
