SETUP 2
5
V01046-01

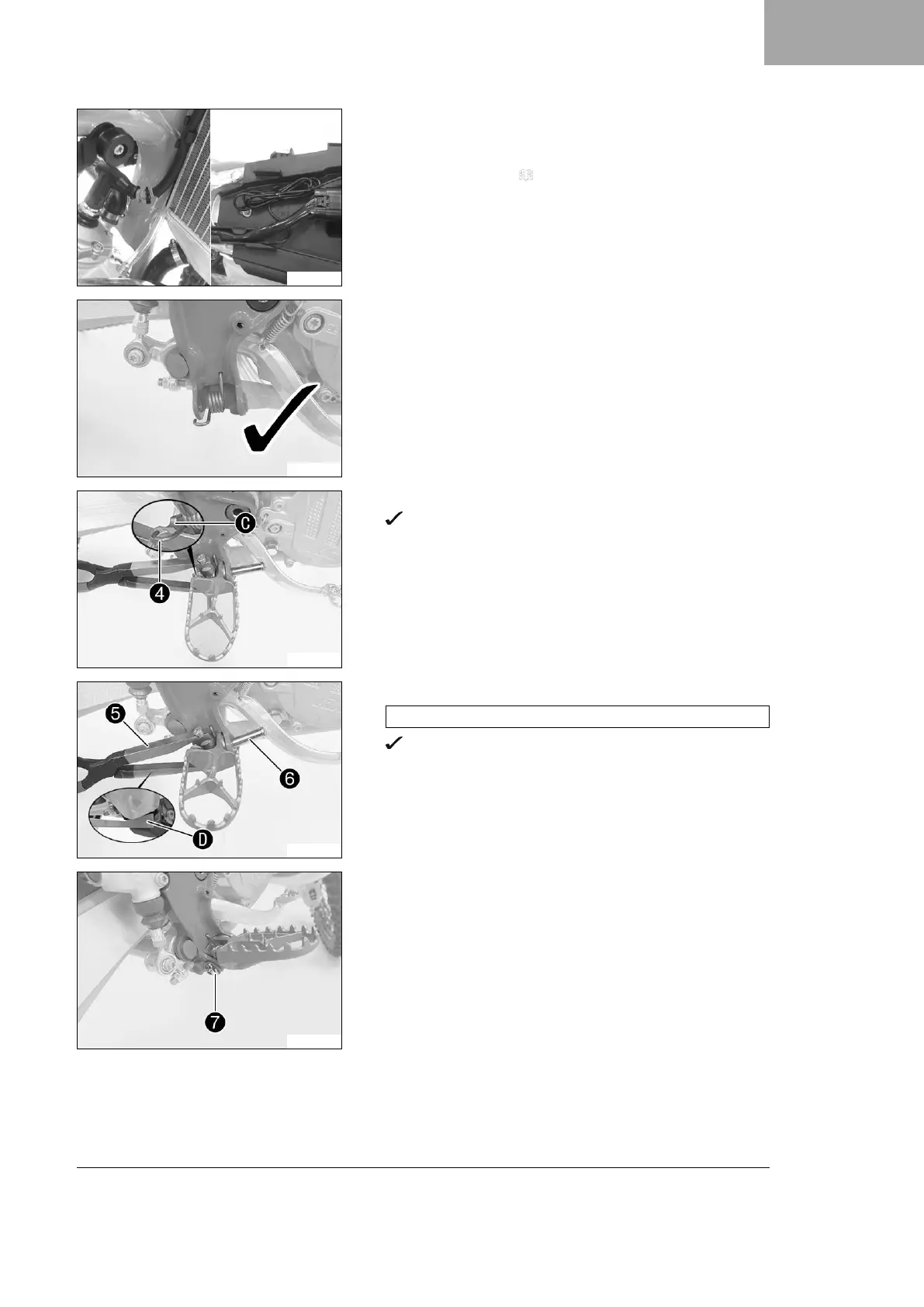

– Wind the cable for the service hour counter around the ignition
wire, and secure it using cable ties.
– Attach cable holder. Tie excess cable together with a cable tie.
– Install the fuel tank. ( p. 10)
T01611-10
–
Position the spring in the hole as shown.
F02442-10
– Position the new footrest and pin.
Spring
4
engages in area
C
.
F02443-10
–
Press the spring with special tool
5
.
Footrest spring plier (79029083000)
The special tool is applied to area
D
on the footrest.
–
Mount pin
6
.
F02444-10
–
Mount the washer and splint
7
.
– Repeat these steps on the opposite side.
– Mount the frame protector.
