KTM 390 ADVENTURE EU 2022 User Manual

16 ELECTRICAL SYSTEM
92
Tip
Insert spare fuse
4
in the fuse box so that it is
available if needed.
– Mount the protection cap.
Finishing work
– Mount the passenger seat. ( p. 63)

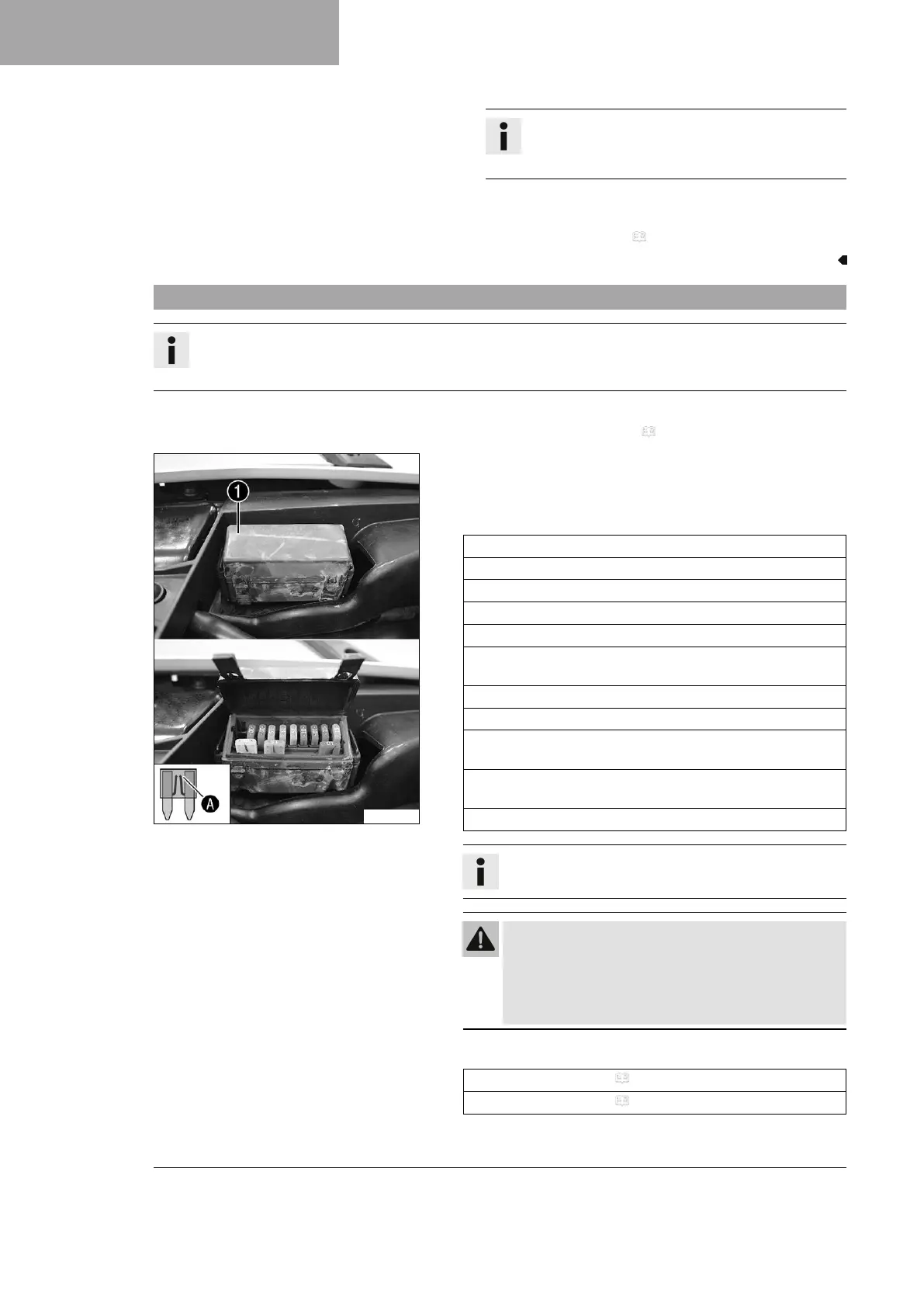

16.6 Changing the fuses of individual electrical power consumers
Info
The fuse box containing the fuses of individual electrical power consumers is located under the passenger
seat.
Preparatory work
– Remove the passenger seat. ( p. 63)
A00699-10
Main work
–
Open fuse box cover
1
.
– Remove the faulty fuse.
Guideline
Fuse 1 - not assigned
Fuse 2 - 10 A - combination instrument, fuel pump
Fuse 3 - 10 A - power relay
Fuse 4 - 15 A - ignition coil, start auxiliary relay
Fuse 5 - 20 A - radiator fan
Fuse 6 - 15 A - brake light, turn signal, high beam, low
beam, position light, tail light, license plate lamp
Fuse 7 - 10 A - engine control unit, ABS control unit
Fuse 8 - 10 A - emergency OFF switch
Fuse 9 - 10 A - permanent positive for auxiliary equipment
(ACC1 front)
Fuse 10 - 15 A - ignition positive for auxiliary equipment
(ACC2 front)
Fuse SPARE - 10 A/15 A/20 A/30 A - spare fuses
Info
A faulty fuse has a burned-out fuse wire
A
.
Warning
Fire hazard Incorrect fuses overload the electrical sys-
tem.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
– Insert the spare fuse with the correct rating.
Fuse (75011088010) ( p. 116)
Fuse (75011088015) ( p. 116)

KTM 390 ADVENTURE EU 2022 Specifications

General

Displacement	373.2 cm³
Bore x Stroke	89 mm x 60 mm
Torque	37 Nm @ 7, 000 rpm
Compression Ratio	12.6:1
Starter	Electric starter
Transmission	6-speed
Final Drive	Chain
Fuel System	Electronic fuel injection
Frame	Steel trellis frame
Rear Suspension	WP Apex monoshock
Front Tire	100/90-19
Rear Tire	130/80-17
Wheelbase	1, 430 mm
Seat Height	855 mm
Ground Clearance	200 mm
Dry Weight	172 kg
Instruments	TFT display
Headlight	LED
Engine Type	Single-cylinder, 4-stroke engine
Power	32 kW (43 hp) @ 9, 000 rpm
Front Suspension	WP APEX 43
Front Brake	4-piston radial caliper, 320 mm disc
Rear Brake	single-piston caliper
Front Wheel	19 inches
Rear Wheel	17 inches
Fuel Capacity	14.5 liters
