KTM 500 EXC-F Six Days 2017 User Manual

18
ENGINE
206

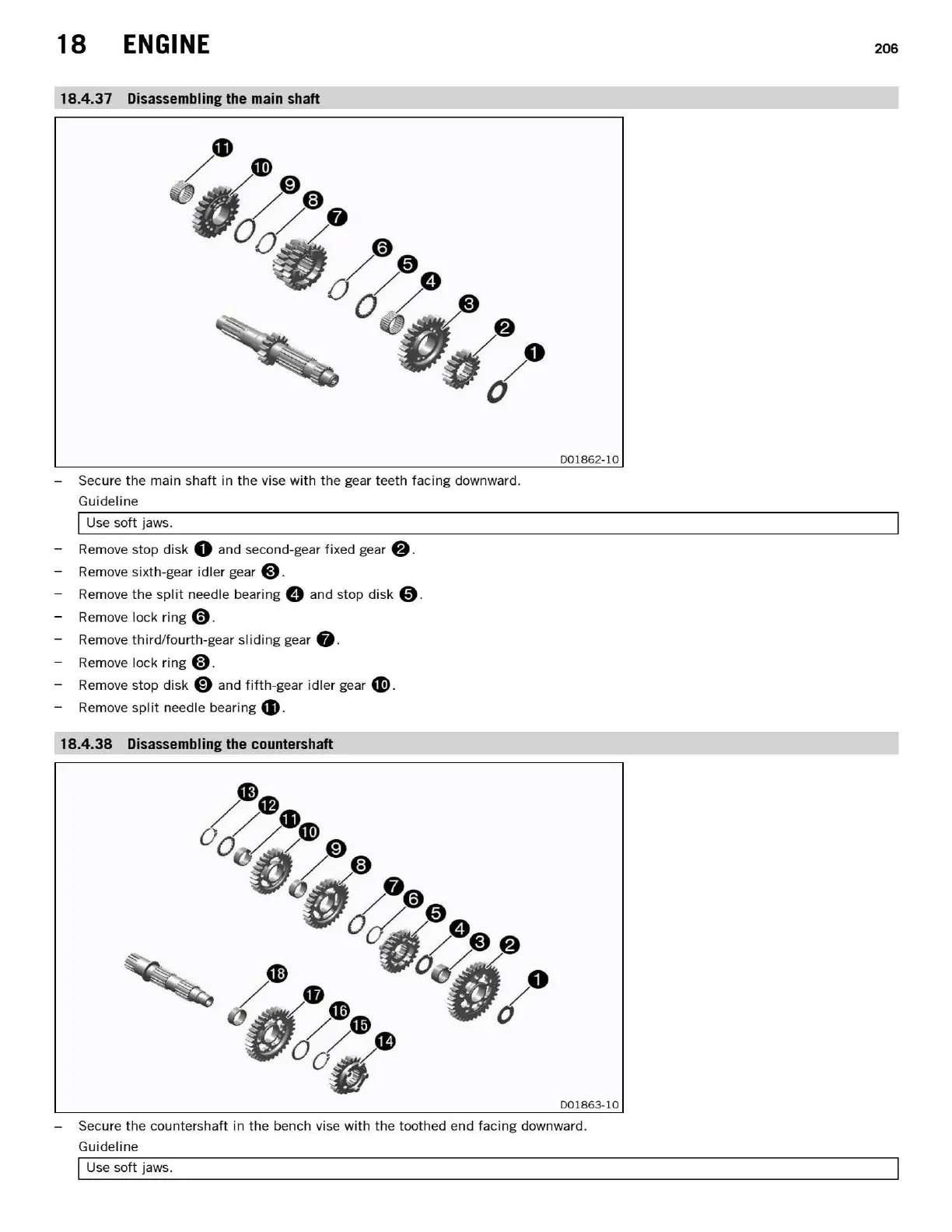

18.4.37 Disassembling the main shaft
00 186 2-10
- Secure the main s haft in the vi se with the gear teeth facing downward.
Guide lin e
Use soft jaws.
- Remove stop disk
0 and second-gear fixed gear 8 .
- Remove sixth-gear idler gear CD .
- Remove the s plit needle bearing 8 and stop disk 0 .
- Remo ve l ock ring (D .
- Remo ve third /fourth-gear s liding gear fj .
- Remove l ock ring ~ -
- Remove stop disk 0 and fifth -gear idler gear 41) .
- Remove spl it needle bearing 48 .
18.4.38 Disassembling the countershaft
00 18 63-10
- Secure the co untershaft in the bench vise with the toothed end facing downward.
Guide lin e
Use soft jaws.

KTM 500 EXC-F Six Days 2017 Specifications

General

Displacement	510.4 cc
Bore x Stroke	95 mm x 72 mm
Transmission	6-speed
Cooling	Liquid cooled
Starter	Electric starter
Ground Clearance	355 mm
Engine Type	Single cylinder, 4-stroke
Fuel System	Electronic Fuel Injection
Front Suspension	WP XPLOR 48
Rear Suspension	WP XPLOR PDS
Front Brake	260 mm disc
Rear Brake	220 mm disc
Fuel Tank Capacity	9 liters
Frame	Central tube frame made of chrome molybdenum steel tubing
