KTM 690 Duke 2018 User Manual

SERVICE WORK ON THE ENGINE 18
195
H00382-10
–

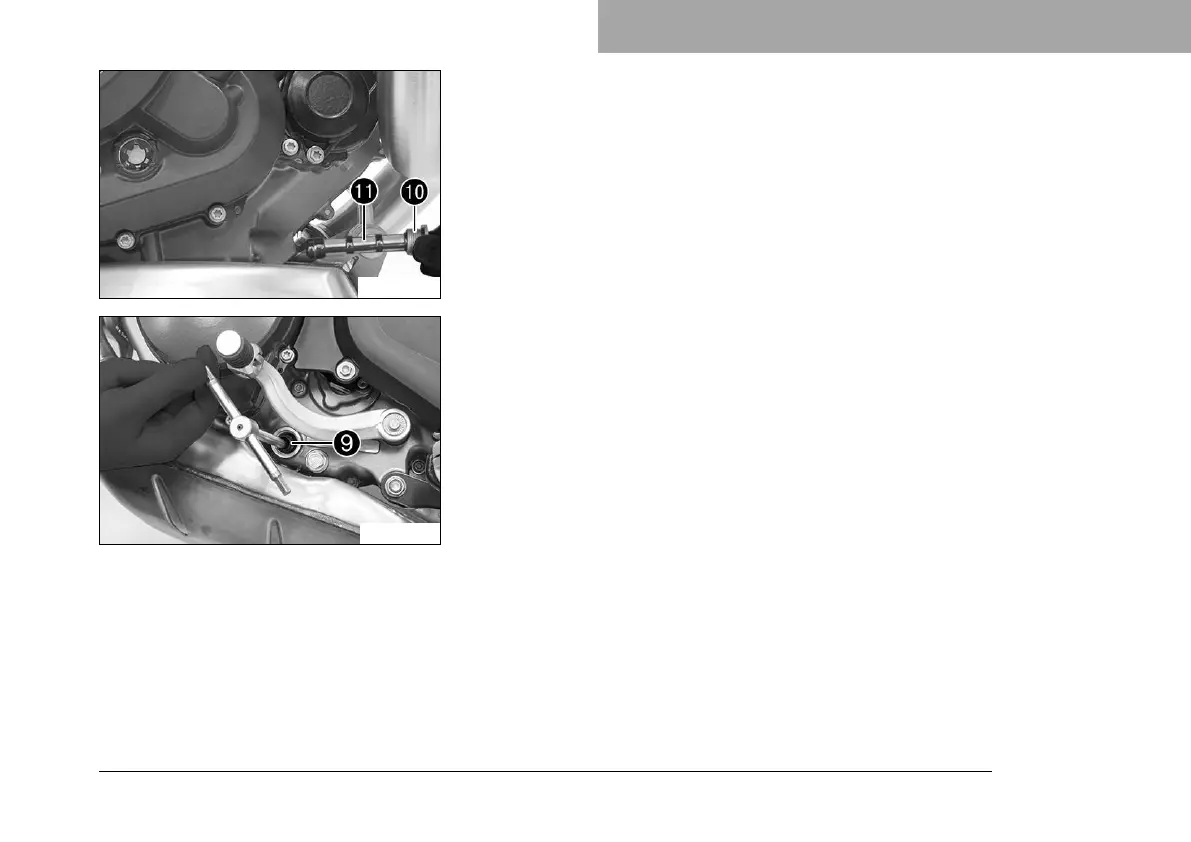

Remove screw plug
bk
with oil screen
bl
and the O-rings.
– Completely drain the remaining engine oil.
– Thoroughly clean the parts and sealing surface.
V00590-10
–
Position oil screen
9
with the O-rings on a pin wrench.
– Position the pin wrench through the drill hole of the screw plug
in the opposite section of the engine case.
– Push the oil screen all the way into the engine case.

KTM 690 Duke 2018 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	690 cc
Torque	74 Nm @ 6, 500 rpm
Compression Ratio	12.7:1
Transmission	6-speed
Fuel System	Electronic fuel injection
Cooling System	Liquid cooled
Front Suspension	WP USD Ø 43 mm
Rear Suspension	WP Monoshock
Seat Height	835 mm
Dry Weight	148.5 kg
Fuel Capacity	14 liters
Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Power	73 hp (54 kW) @ 8, 000 rpm
Front Brake	Brembo four-piston radial caliper, 320 mm disc
Rear Brake	Brembo single-piston floating calliper, brake disc Ø 240 mm
ABS	Bosch 9M+ Two Channel ABS
Frame	Chromium-Molybdenum steel trellis frame, powder-coated
