30/ENGINE - WORK ON INDIVIDUAL PARTS 143
– Remove needle bearing  and stop disk .
– Remove the fifth-gear sliding gear  and lock ring .
– Remove stop disk  and the third-gear idler gear .
– Remove the needle bearing  and the fourth-gear idler gear .
– Remove needle bearing  and stop disk .
– Remove lock ring  and the sixth-gear sliding gear .
– Remove lock ring  and stop disk .
– Remove the second-gear idler gear  and needle bearing .
19.36Checking the transmission
– Disassemble the main shaft. ( p. 141)
– Dismantle the countershaft. ( p. 142)
(690 Enduro EU)
0
0
66
0
0
55
0
0
11
0
0
44
0
0
66
0
0
55
22
0
0
66
0
0
88
0
0
44
77
0
0
55
0
0
66
0
0
11
0
0
44
0
0
11
0
0
77
0
0
55
0
0
66
0
0
11
0
0
44
0
0
66
0
0
66
0
0
44
0
0
77
0
0
66
0
0
44
0
0
11
77
0
0
77
33

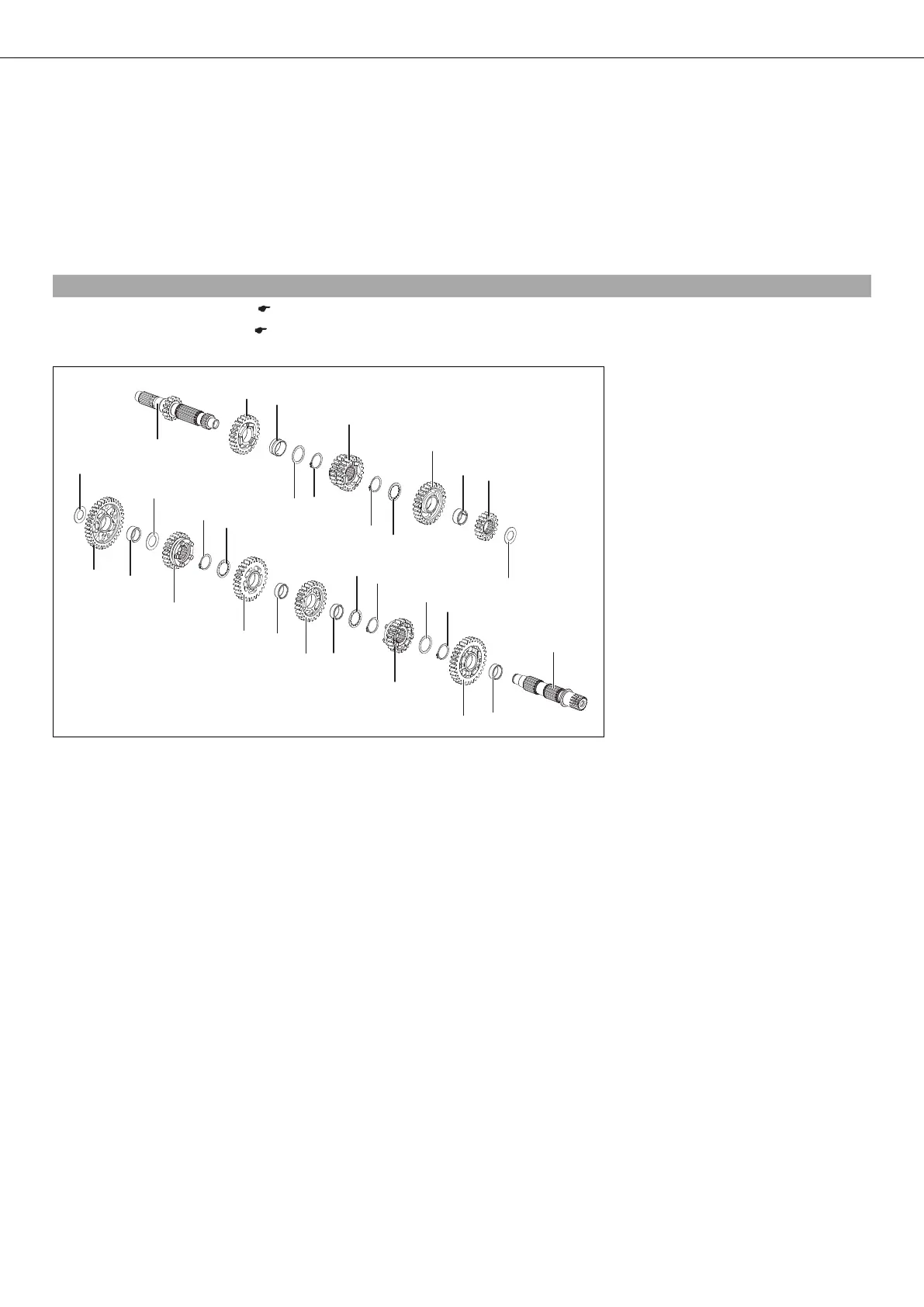

301981-01
– Check needle bearing  for damage and wear.
» If there is damage or wear:
– Change the needle bearing.
– Check the pivot points of main shaft  and countershaft  for damage and wear.
» If there is damage or wear:
– Change the main shaft and/or countershaft.
– Check the tooth profiles of main shaft  and countershaft  for damage and wear.
» If there is damage or wear:
– Change the main shaft and/or countershaft.
– Check the pivot points of idler gears  for damage and wear.
» If there is damage or wear:
– Change the idler/fixed gear pair.
– Check the shift dogs of idler gears  and fixed gears  for damage and wear.
» If there is damage or wear:
– Change the idler/fixed gear pair.
– Check the tooth faces of idler gears  and fixed gears  for damage and wear.
» If there is damage or wear:
– Change the idler/fixed gear pair.
– Check the tooth profiles of fixed gears  for damage and wear.
» If there is damage or wear:
– Change the idler/fixed gear pair.
– Check fixed gears  for smooth operation in the profile of main shaft .
