KTM 690 Enduro R 2021 User Manual

14 ELECTRICAL SYSTEM
90
S03303-12
– Position the headlight mask.
Info
Pay attention to routing of the brake line.
–
Mount and tighten screws
3
.
Guideline
Screw, headlight
mask
M5 5 Nm (3.7 lbf ft)
Finishing work
– Check the headlight setting. ( p. 91)

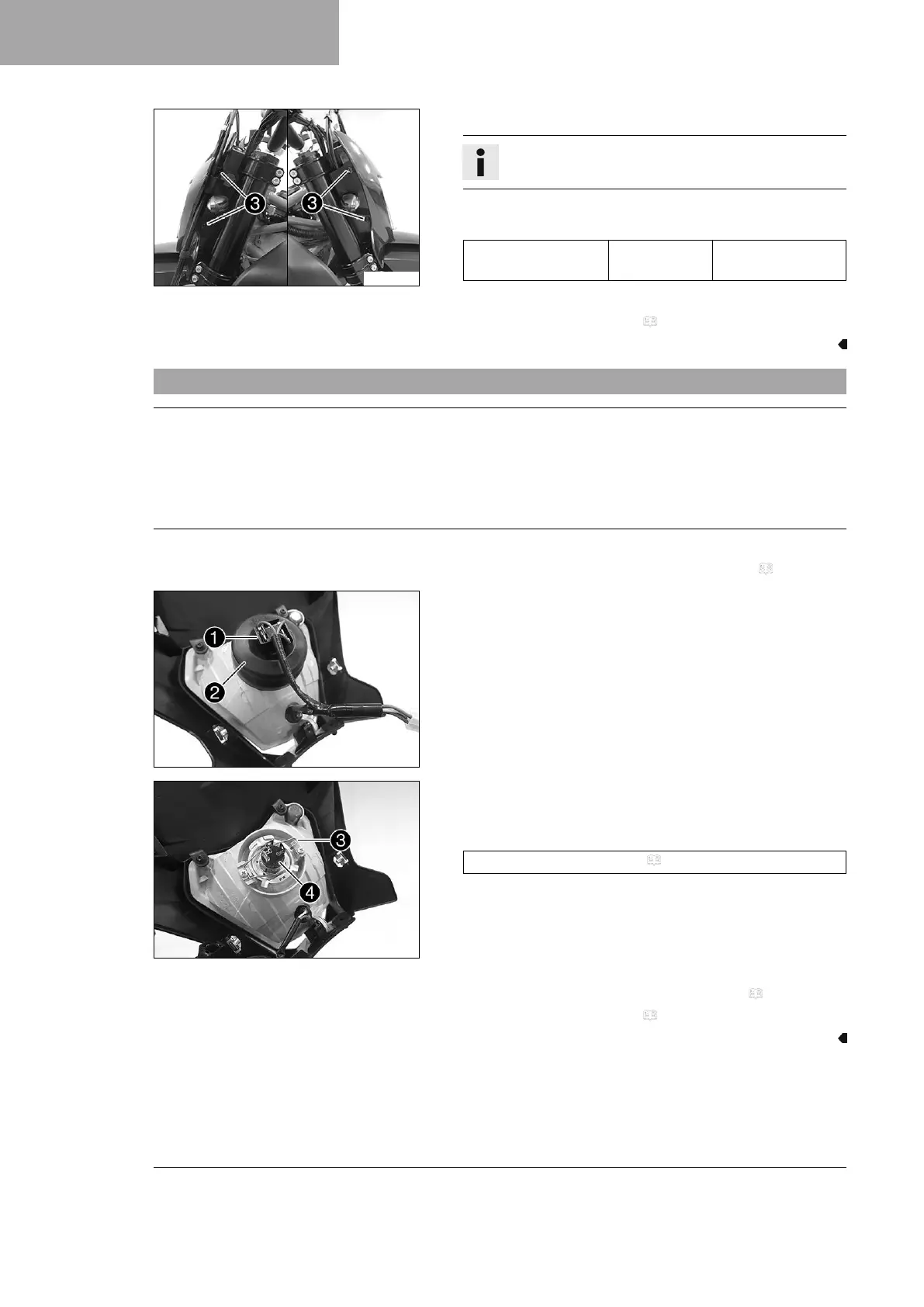

14.9 Changing the headlight bulb
Note
Damage to reflector Grease on the reflector reduces the light intensity.
Grease on the bulb will evaporate due to the heat and be deposited on the reflector.
– Clean and degrease the bulbs before mounting.
– Do not touch the bulbs with your bare hands.
Preparatory work
– Remove the headlight mask with the headlight. ( p. 89)
S03306-10
Main work
–
Unplug connector
1
.
–
Take off protection cap
2
of the headlight bulb.
S03307-10
–
Detach spring bar
3
.
–
Remove headlight bulb
4
.
– Insert a new headlight bulb into the headlight housing.
Headlight (H4/socket P43t) ( p. 117)
– Fix the headlight bulb in the headlight using the spring bar.
– Mount the protection cap. Plug in the connector.
Finishing work
– Install the headlight mask with the headlight. ( p. 89)
– Check the headlight setting. ( p. 91)

KTM 690 Enduro R 2021 Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling	Liquid-cooled
Compression Ratio	12.7:1
Starter	Electric starter
Front Tire	90/90-21
Rear Tire	140/80-18
Seat Height	910 mm
Power	74 hp (55 kW) @ 8, 000 rpm
Torque	73.5 Nm
Frame	Chromoly steel trellis frame
Front Suspension	WP XPLOR USD, 48 mm
Rear Suspension	WP XPLOR monoshock
Front Brake	Single 300 mm disc
Rear Brake	Single 240 mm disc
ABS	Bosch 9.1 MP (disengageable)
Front Wheel	21 inch
Rear Wheel	18 inch
Wheelbase	1504 mm
Ground Clearance	270 mm
Fuel Tank Capacity	13.5 l
Dry Weight	146 kg
