KTM 690 Enduro R 2021 User Manual

ELECTRICAL SYSTEM 14
89
Finishing work
– Mount the seat. ( p. 50)

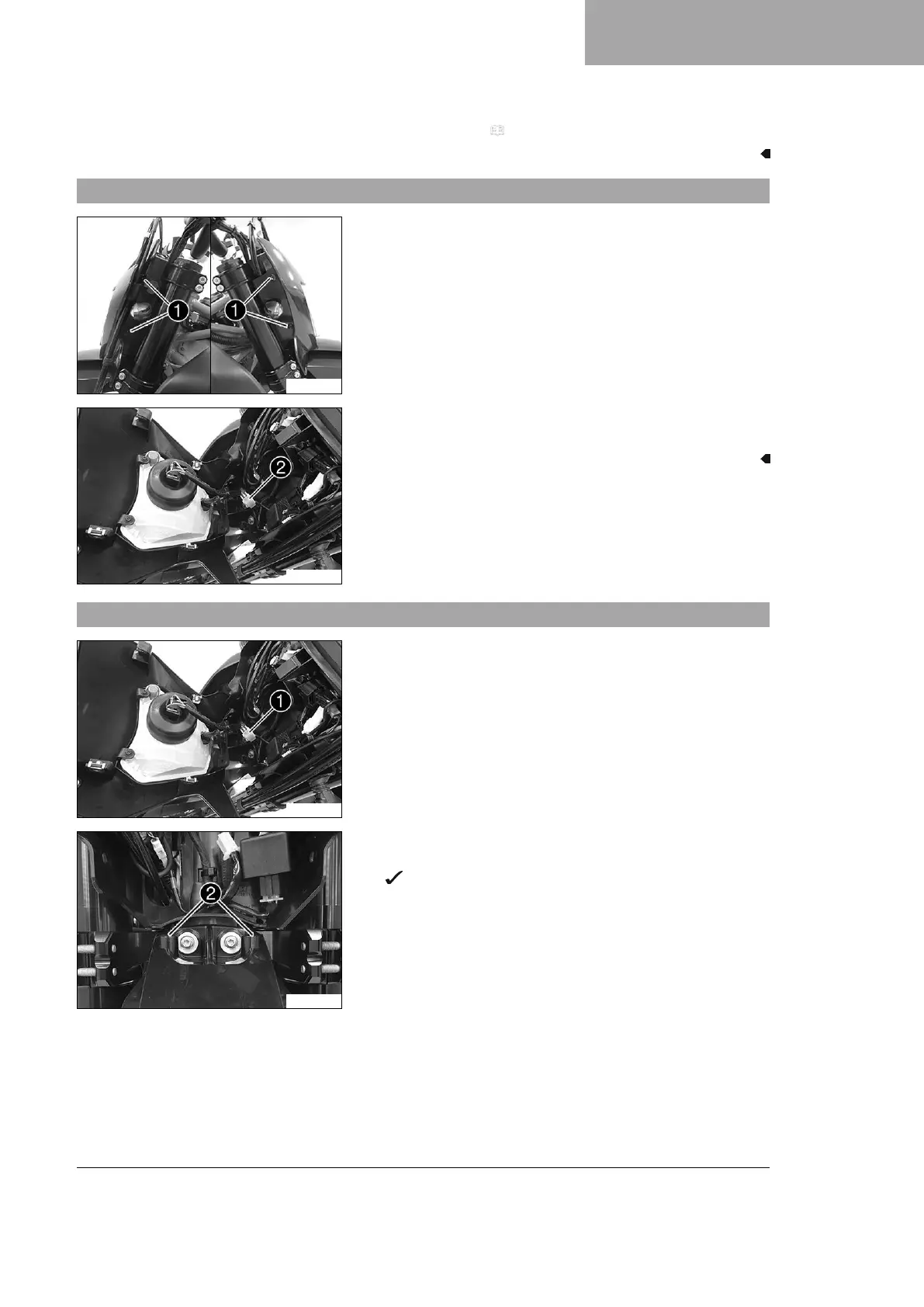

14.7 Removing the headlight mask with the headlight
S03303-10
– Cover the fender with a cloth.
–
Remove screws
1
on both sides.
– Tip the headlight mask forward.
S03304-10
–
Disconnect plug-in connector
2
of the headlight.
– Take off the headlight mask.
14.8 Installing the headlight mask with the headlight
S03304-11
Main work
–
Connect plug-in connector
1
of the headlight.
– Check that the lighting is functioning properly.
S03305-10
– Remove the cloth from the fender and position the headlight
mask.
Headlight mask engages in the fender on the bushings
2
.

KTM 690 Enduro R 2021 Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling	Liquid-cooled
Compression Ratio	12.7:1
Starter	Electric starter
Front Tire	90/90-21
Rear Tire	140/80-18
Seat Height	910 mm
Power	74 hp (55 kW) @ 8, 000 rpm
Torque	73.5 Nm
Frame	Chromoly steel trellis frame
Front Suspension	WP XPLOR USD, 48 mm
Rear Suspension	WP XPLOR monoshock
Front Brake	Single 300 mm disc
Rear Brake	Single 240 mm disc
ABS	Bosch 9.1 MP (disengageable)
Front Wheel	21 inch
Rear Wheel	18 inch
Wheelbase	1504 mm
Ground Clearance	270 mm
Fuel Tank Capacity	13.5 l
Dry Weight	146 kg
