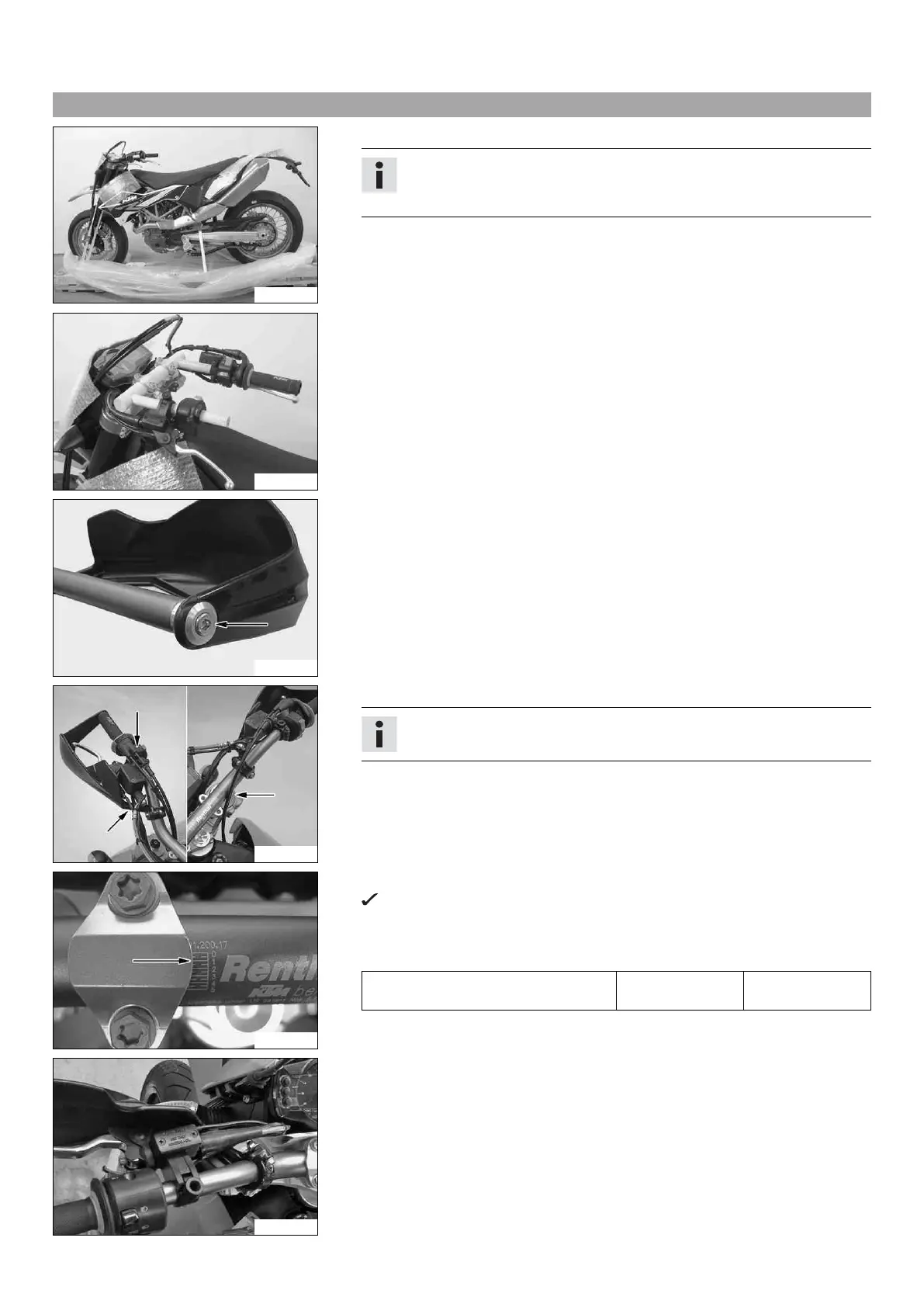

2.1 Unpacking and setting up the vehicle
201922-10
– Remove the box and the plastic packaging.
Info
To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.
– Check the vehicle for transport damage.
– Unpack the separate enclosure and check its contents on the basis of the enclosure
list.
201923-10
– Remove the controls from the transport holder. Remove the screws and handlebar
clamps. Remove the transport holder.
100318-10
– Remove screw M8 from the right hand guard.
100306-10
– Position the controls on the right half of the handlebar.
Info
The routing of the cables can be seen in the figure.
100305-10
– Position the handlebar.
Marking 1 on the scale on the handlebar should be situated in the middle of
the handlebar clamp.
– Position the handlebar clamps. Mount the four screws and tighten evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
600645-01
– Position the controls on the left half of the handlebar. Mount the screws.
