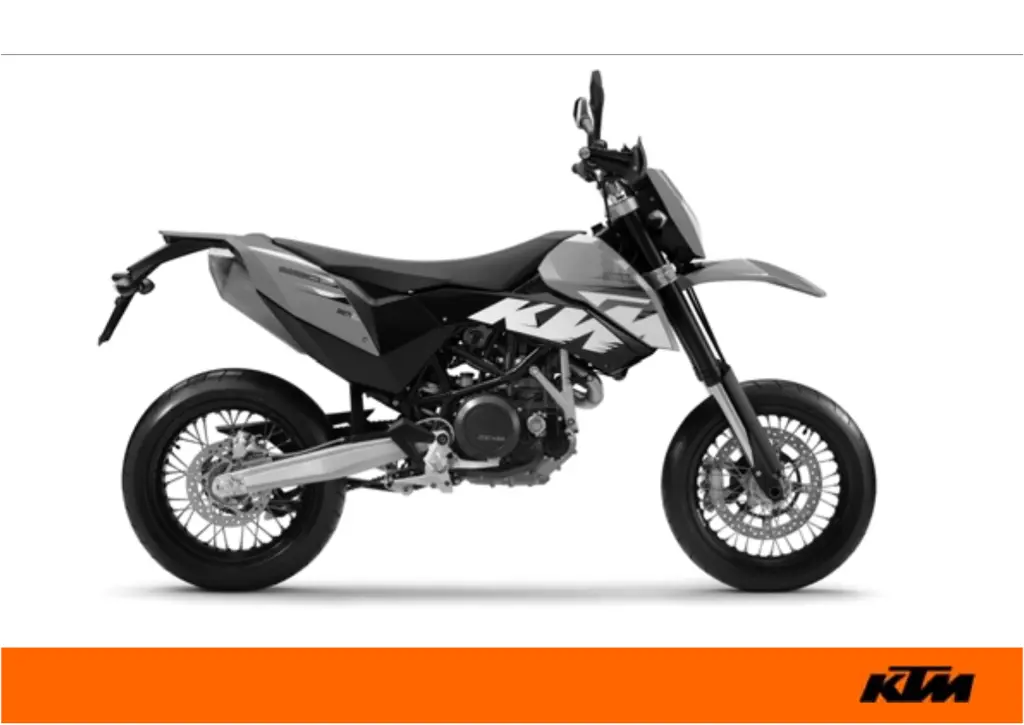

KTM 690 SMC EU User Manual (English)

Questions and Answers:

M
martinjeromeAug 22, 2025
What to do if my KTM Motorcycle engine does not turn when pressing the electric starter?
- C
  Crystal BakerAug 22, 2025
  If the engine of your KTM Motorcycle does not turn when you press the electric starter button, there might be several reasons: * You may not be following the correct starting procedure. * The battery might be discharged, in which case you should recharge it and investigate the cause of the discharge. * A fuse (b1, b2, b3, or b4) might be blown, so replace the affected fuses. * The main fuse could be burned out, so replace it. * The ignition/steering lock or emergency OFF switch could be defective, requiring a check. * There might be a defect in the safety start system, which also needs to be checked.
M
Michael MarshAug 25, 2025
Why does my KTM 690 SMC EU Motorcycle engine die during the journey?
- J
  jclarkAug 25, 2025
  If your KTM Motorcycle engine dies during a journey, consider these possible causes: * You might be out of fuel, so you should fill up. * A fuse (b1, b2 or b4) may have blown, so replace the affected fuses. * The engine vent hose could be bent, so straighten it or replace it if necessary. * The engine oil level might be too high, so check and correct it.
K
kdavisAug 25, 2025
Why is my KTM 690 SMC EU engine overheating?
- M
  Mary FletcherAug 26, 2025
  If your KTM Motorcycle engine overheats, consider the following potential causes: * There might not be enough coolant in the cooling system, so check for leaks and the coolant level. * The radiator fins could be very dirty, so clean them. * There could be foam formation in the cooling system, so drain and refill the coolant. * A radiator hose might be buckled or damaged, so have it replaced. * The thermostat could be defective, so have it checked. * Fuse b5 might be blown, so replace it. * There could be a defect in the radiator fan system, so have it checked. * There might be air in the cooling system, so refill the cooling system.
K
Keith DavisAug 27, 2025
What does it mean if the FIbwarning lamp (MIL) lights/flashes on my KTM Motorcycle?
- V
  Victoria LuceroAug 27, 2025
  If the FI warning lamp (MIL) lights or flashes on your KTM Motorcycle, it indicates a defect in the fuel injection system. To resolve this, have the error memory read with the KTM diagnostics tool and correct the fault.
S
Samantha MccoyAug 27, 2025
How to fix headlight and parking light not functioning on KTM Motorcycle?
- J
  Jonathon DavisAug 27, 2025
  If the headlight and parking light on your KTM Motorcycle are not working, it's possible that fuse b7 has blown. In this case, you should replace the fuse.
M
mwardAug 28, 2025
What to do if flasher light, brake light, and horn not functioning on KTM Motorcycle?
- S
  Sean HollandAug 29, 2025
  If the flasher light, brake light, and horn are not functioning on your KTM Motorcycle, it's likely that fuse b6 has blown. Replace the fuse to resolve the issue.
G
Glenn JonesAug 29, 2025
Why does the combination instrument show nothing in the display on my KTM Motorcycle?
- S
  sarareedAug 29, 2025
  If the combination instrument on your KTM Motorcycle shows nothing in the display, it is possible that fuse b1 has blown. Replace the fuse.
A
Anna RochaAug 31, 2025
Why does my KTM 690 SMC EU Motorcycle engine turns although a gear is engaged?
- M
  Misty AndersonAug 31, 2025
  If your KTM Motorcycle engine turns even when a gear is engaged, it could be due to: * A defect in the safety start system, which needs to be checked. * An operating error, so follow the starting instructions. * Fuse b4 being blown, so replace the fuse. * The coupling of the fuel hose connection not being connected, so reconnect it. * The socket connector of the cable harness being oxidized, so clean it and treat it with contact spray.
C
Connie SantosSep 1, 2025
Why does my KTM 690 SMC EU Motorcycle engine turns only if the clutch lever is drawn?
- A
  Adam MossSep 1, 2025
  If your KTM Motorcycle engine only turns when the clutch lever is drawn, it is likely because the vehicle is in gear. Shift the gear to neutral. It could also be that the vehicle is in gear and the side stand is folded out, so shift to neutral. Alternatively, there could be a defect in the safety start system, which needs to be checked.
K
Kimberly YuSep 2, 2025
Why is the speedometer in combination instrument not functioning on my KTM 690 SMC EU?
- C
  Christopher LarsonSep 2, 2025
  If the speedometer in the combination instrument of your KTM Motorcycle is not working, the speedometer cable harness may be damaged or the plug oxidized. Have the cable harness and plug checked.

KTM 690 SMC EU Specifications

General

Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic fuel injection
Cooling	Liquid cooling
Lubrication	Forced oil lubrication with 2 oil pumps
Final Drive	Chain
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Suspension Travel Rear	250 mm
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Chain	X-Ring 5/8 x 1/4"
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	Single cylinder, 4-stroke engine
Power	75 hp
Torque	73.5 Nm
Clutch	Wet, multi-disc
Subframe	Aluminum
Handlebar	Aluminum, tapered
Front Suspension	WP USD Ø 48 mm
Rear Suspension	WP monoshock
Front Brake	Brembo four-piston radial fixed caliper, brake disc Ø 320 mm
Rear Brake	Brembo single piston floating caliper, brake disc Ø 240 mm
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Tank Capacity	13.5 l
