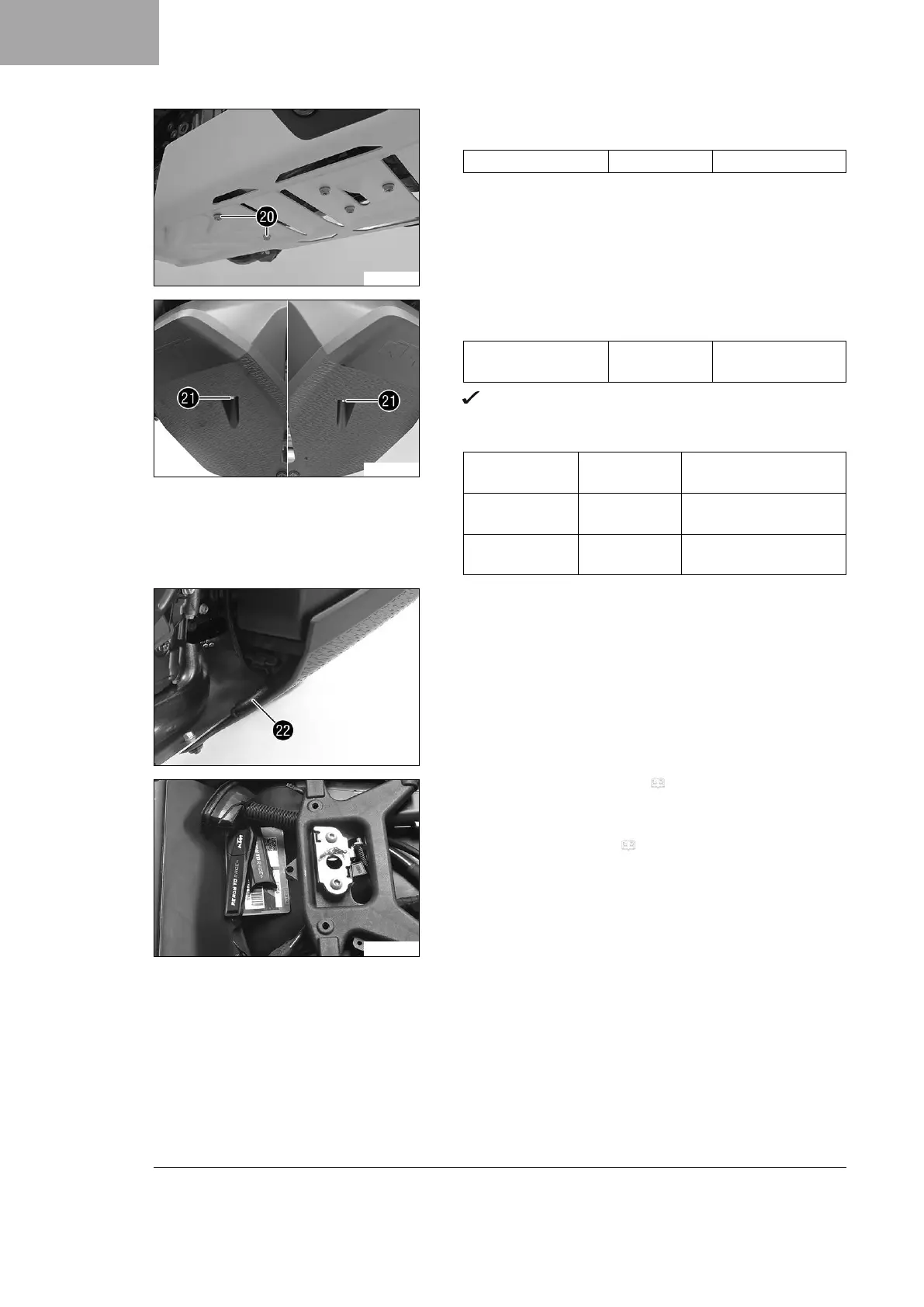

2 SETUP
10
F02140-10
–
Mount screws
ck
, but do not tighten yet.
Guideline
Screw, engine guard M6x8 8 Nm (5.9 lbf ft)
F02141-10
–
Mount screws
cl
, but do not tighten yet.
Guideline
Screw, fuel tank
cover
M6x12 8 Nm (5.9 lbf ft)
The engine guard is directed evenly toward the front.
– Tighten all the screws of the engine guard.
Guideline
Screw, engine
guard
M6x8 8 Nm (5.9 lbf ft)
Screw, engine
guard
M6x10 10 Nm (7.4 lbf ft)
Loctite
®
243™
Screw, fuel tank
cover
M6x12 8 Nm (5.9 lbf ft)
F02142-10
–
Mount hose
cm
with the angle piece.
F02143-01
– Remove the front rider's seat. ( p. 13)
–
Remove spare key and KEYCODECARD from under the seat and
keep in a safe place for the handover.
– Charge the 12-V battery. ( p. 19)
