WORK 3
17

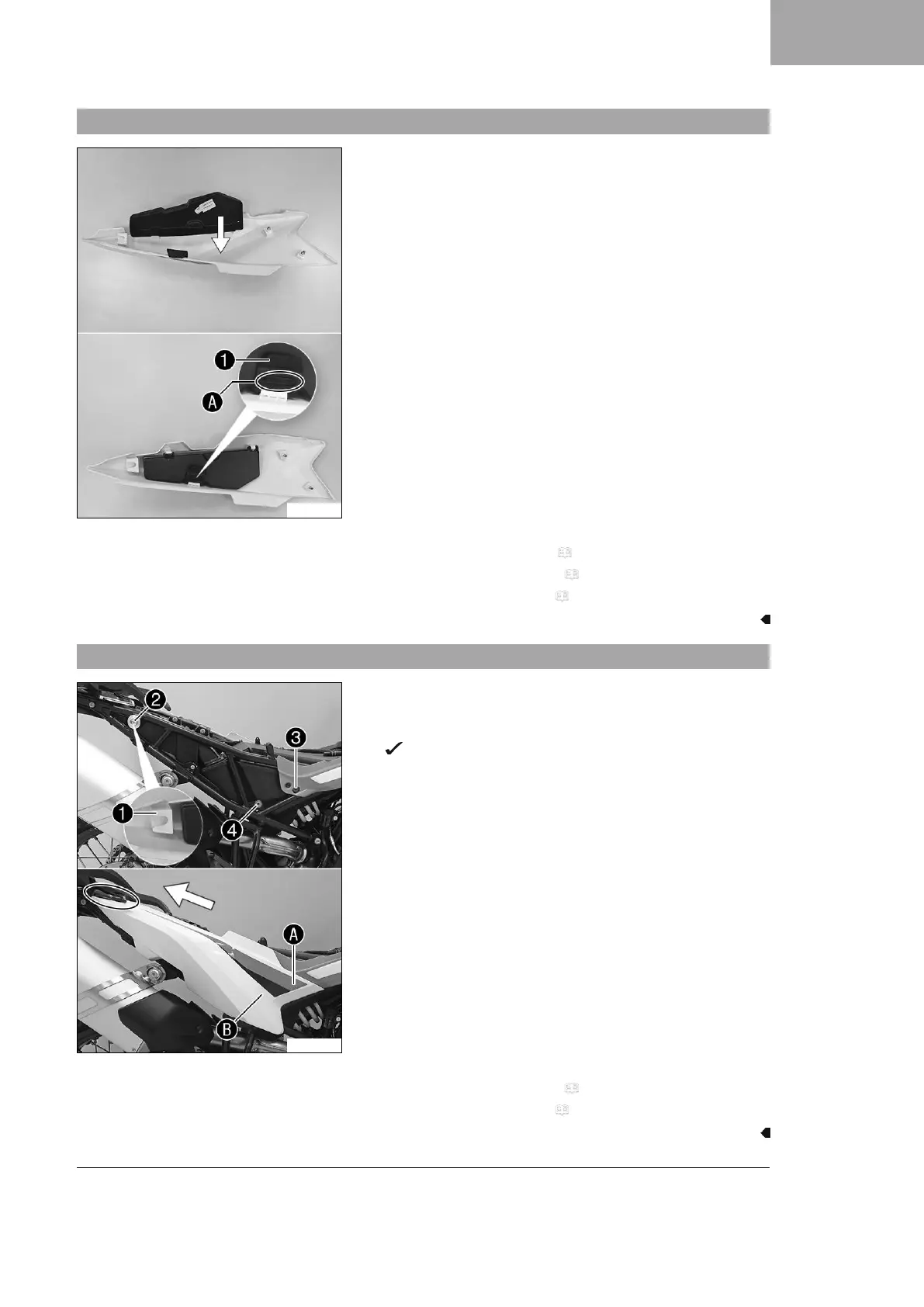

3.12 Closing the storage compartment on the right
F01901-10
Main work
– Close the storage compartment.
–
Raise elastic fastener
1
and hang up in area
A
.
Finishing work
– Install the right side cover. ( p. 17)
– Mount the front rider's seat. ( p. 13)
– Mount the passenger seat. ( p. 13)
3.13 Installing the right side cover
F03351-10
Main work
–
Position the right side cover with holding lug
1
on bush-
ing
2
and push backward.
The right side cover engages under the tail part.
–
Press the right side cover in the area
A
into rubber bush-
ing
3
and press into rubber bushing
B
in area
4
.
Finishing work
– Mount the front rider's seat. ( p. 13)
– Mount the passenger seat. ( p. 13)
